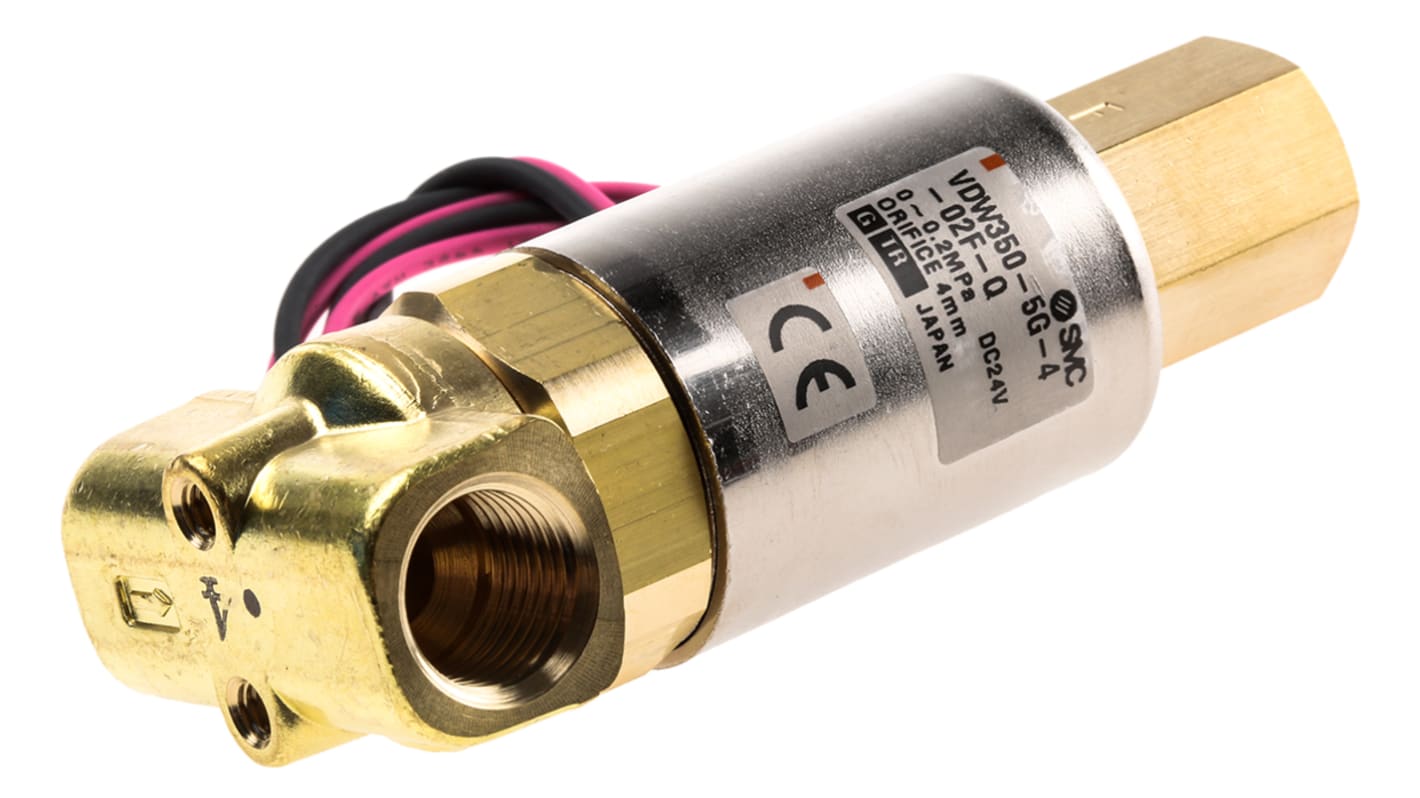

SMC Solenoid Valve VDW350-5G-4-02F-Q, 3 port(s) , NO/NC, 24 V dc, 1/4in
- RS Stock No.:
- 701-3242
- Mfr. Part No.:
- VDW350-5G-4-02F-Q
- Manufacturer:
- SMC
16 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
20 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR228.68
| Units | Per Unit |
| 1 + | MYR228.68 |
- RS Stock No.:
- 701-3242
- Mfr. Part No.:
- VDW350-5G-4-02F-Q
- Manufacturer:
- SMC
Technical data sheets
Legislation and Compliance
Non Compliant
- COO (Country of Origin):
- JP
Product Details
Three Port Solenoid Valves
The VXA series of valves can be used with a wide variety of fluids. The VXA31/32 manifold is individual ported; valves for both are easily replaced without changing existing piping.
Compatible with a wide range of fluids
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 24 V dc |
| Number of Ports | 3 |
| Connection Size | 1/4in |
| Connection | 1/4 in G Female |
| Operation | Direct |
| Default Valve Position | NO/NC |
| Suitable Applications | Air, Low Vacuum, Water |
| Type | 3/2 |
| Orifice Diameter | 1.8 mm, 4mm |
| Series | VDW300 |
| Body Material | Brass |
| Maximum Working Pressure | 1 MPa |
| Operating Temperature Range | -10 → +50 °C |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +50°C |
| Connection Gender | Female |
| Thread Standard or Connection Type | G |
