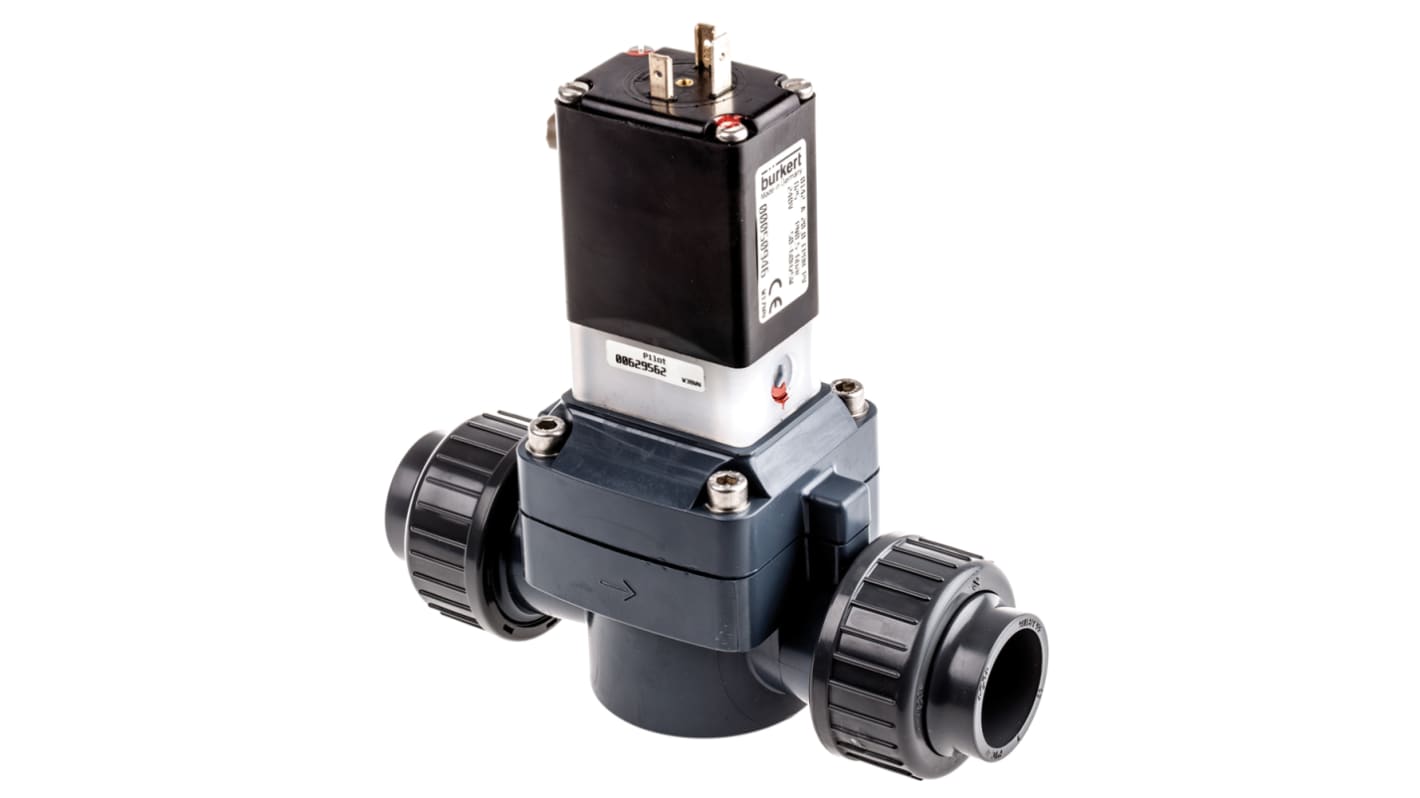

Burkert Solenoid Valve 050946, 2 port(s) , NC, 240 V ac, 3/4in

The Burkert 0142 series 3/4in G female solenoid valve has a supply voltage rating of 240VAC. This 2-port NC position valve is made of PVC for aggressive and contaminated media. This servo-assisted diaphragm valve requires a minimum differential pressure of 0.5 bar to open and close the valve. Its maximum opening and closing time are 800ms and 400ms. This valve is used with aggressive gases and liquids, bases and acids up to a medium concentration.

Maximum working pressure is 6bar
Double seal to valve interior
Flow factor(Kv) is 6m³/h
Lockable manual override
Non-metallic valve internals
Operating temperature ranges between 0°C and 40°C
Power consumption is 20VA (Inrush AC), 11VA/5W (Operation AC) and 5W DC

Alkalis and acids up to medium concentration
Chemical cleaning and washing systems
Food and beverage industry
Water treatment

IP65 rated
