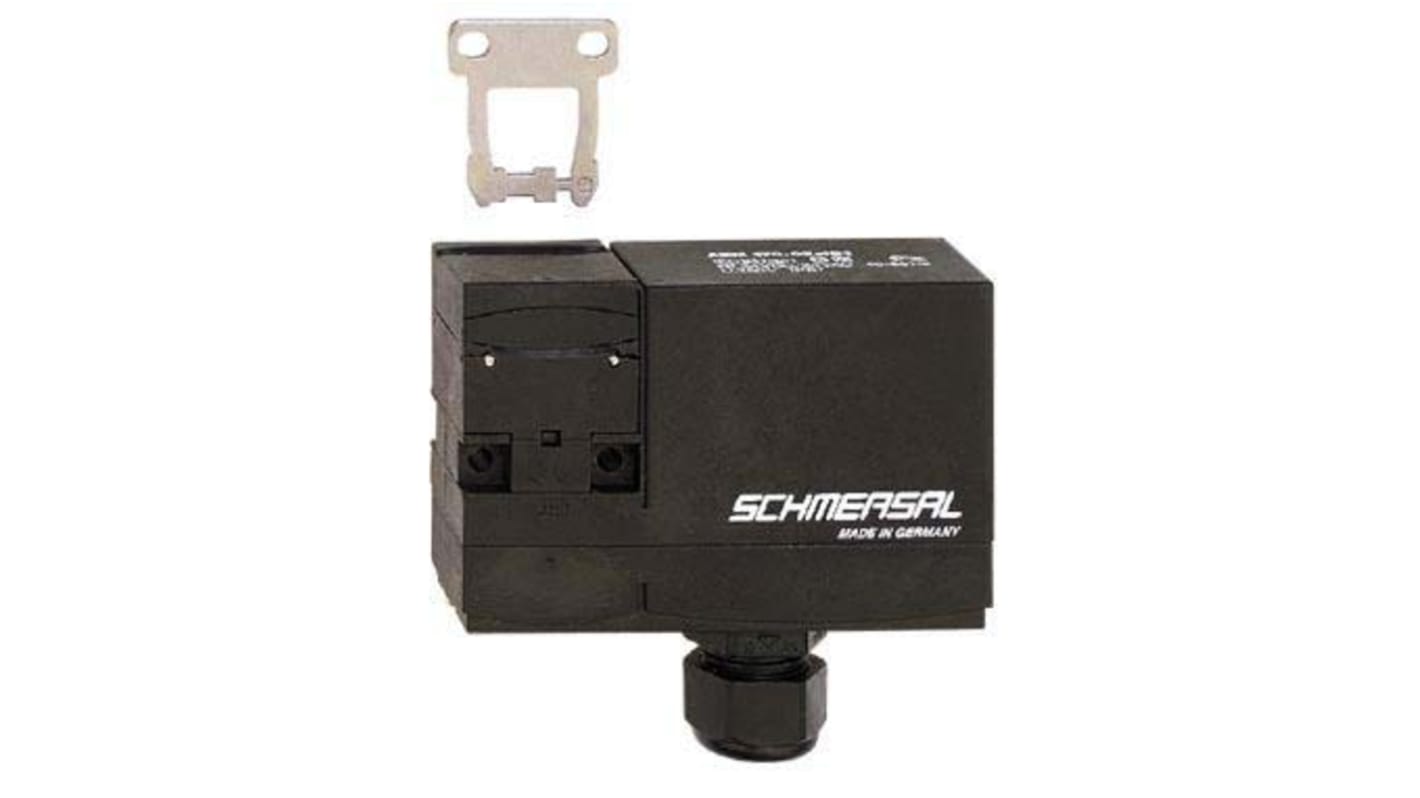

AZM 170 Solenoid Interlock Switch Power to Lock 24 V ac/dc

  • RS Stock No. 146-5797
  • Mfr. Part No. AZM170-02ZRIA-B1 24VAC/DC
  • Manufacturer Schmersal
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Double-insulated
Individual coding
Coding level "High" according to ISO 14119
90 mm x 84 mm x 30 mm
Compact design
Interlock with protection against incorrect locking.
Long life
High holding force
1 Cable entry M 20 x 1.5
Particularly suitable for sliding doors
IDC method of termination
Manual release

Specifications
Attribute Value
Series AZM 170
Pole Configuration DP
Power to Lock / Unlock Power to Lock
Actuator Included Yes
Actuator Type Coded
Conduit Entry M20
Length 90mm
Width 84mm
Depth 30mm
Supply Voltage 24 V ac/dc
Maximum AC Voltage 24V
Housing Material Plastic
Standards Met BG, BG-GS-ET-19, CE, CULus, DIN EN 60269-1, EN 60947-5-1, EN ISO 13849-1, IEC/EN 60529
Power Consumption 10 W
Dimensions 90 x 84 x 30 mm
Maximum DC Voltage 24V
Safety Contacts 2NC
IP Rating IP67
4 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 1,450.65
units
Per unit
1 +
MYR1,450.65
