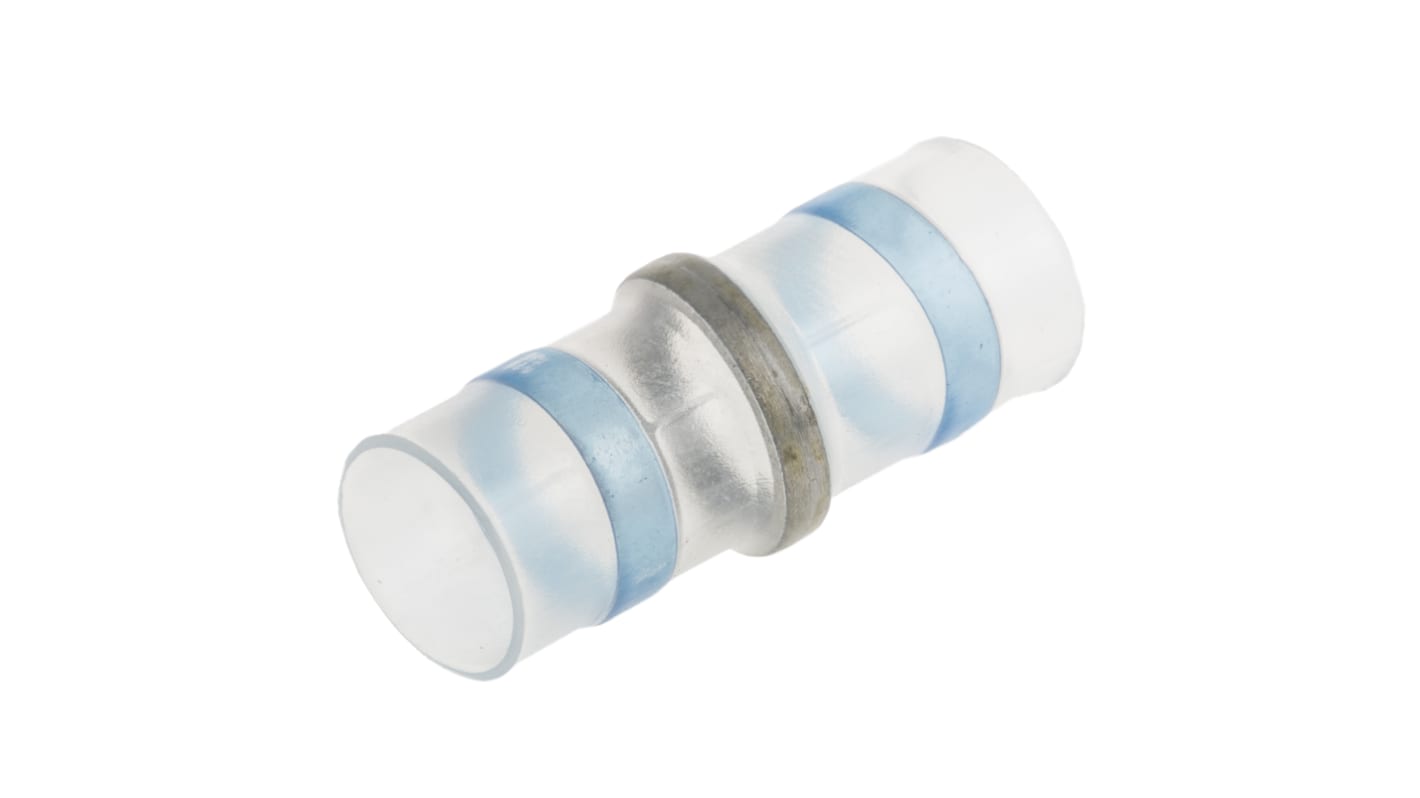

RS PRO Blue Solder Sleeve 5.8 → 11.5mm

  • RS Stock No. 872-6299
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

RS Solder Sleeves

Heat-Shrinkable sleeves that provide strain relief, insulation, moisture resistance and protection for terminations from environmental damage. The transparent heat-shrinkable sleeve contains a pre-measured fluxed solder band and coloured hot-melt glue at each end. A labour-saving alternative to conventional wire and cable termination methods such as hand soldering or crimping. The solder sleeves are available in a range of sizes to suit cable diameters from 0.5 mm² to 22 mm², or as an assorted kit.


Features and benefits
• Shrink ratio 2:1
• Low temperature solder sleeve
• Fast installation
• Transparent sleeve provides precise inspection
• Easy control of soldering process

Specifications
Attribute Value
Minimum Cable Diameter 5.8mm
Maximum Cable Diameter 11.5mm
Sleeve Length 35.5mm
Material Low-Density Polyethylene
Dielectric Strength 1kV
Minimum Operating Temperature -55°C
Maximum Operating Temperature +125°C
Quantity 1
Standards Met RoHS Compliant
Shrink Temperature >115°C
Series GAST
Colour Blue
154 In Global stock for delivery within 4 - 6 working days
Price 1 Bag of 25
MYR 148.88
Bag(s)
Per Bag
Per unit*
1 - 14
MYR148.88
MYR5.955
15 - 49
MYR141.41
MYR5.656
50 +
MYR136.89
MYR5.476
*price indicative
