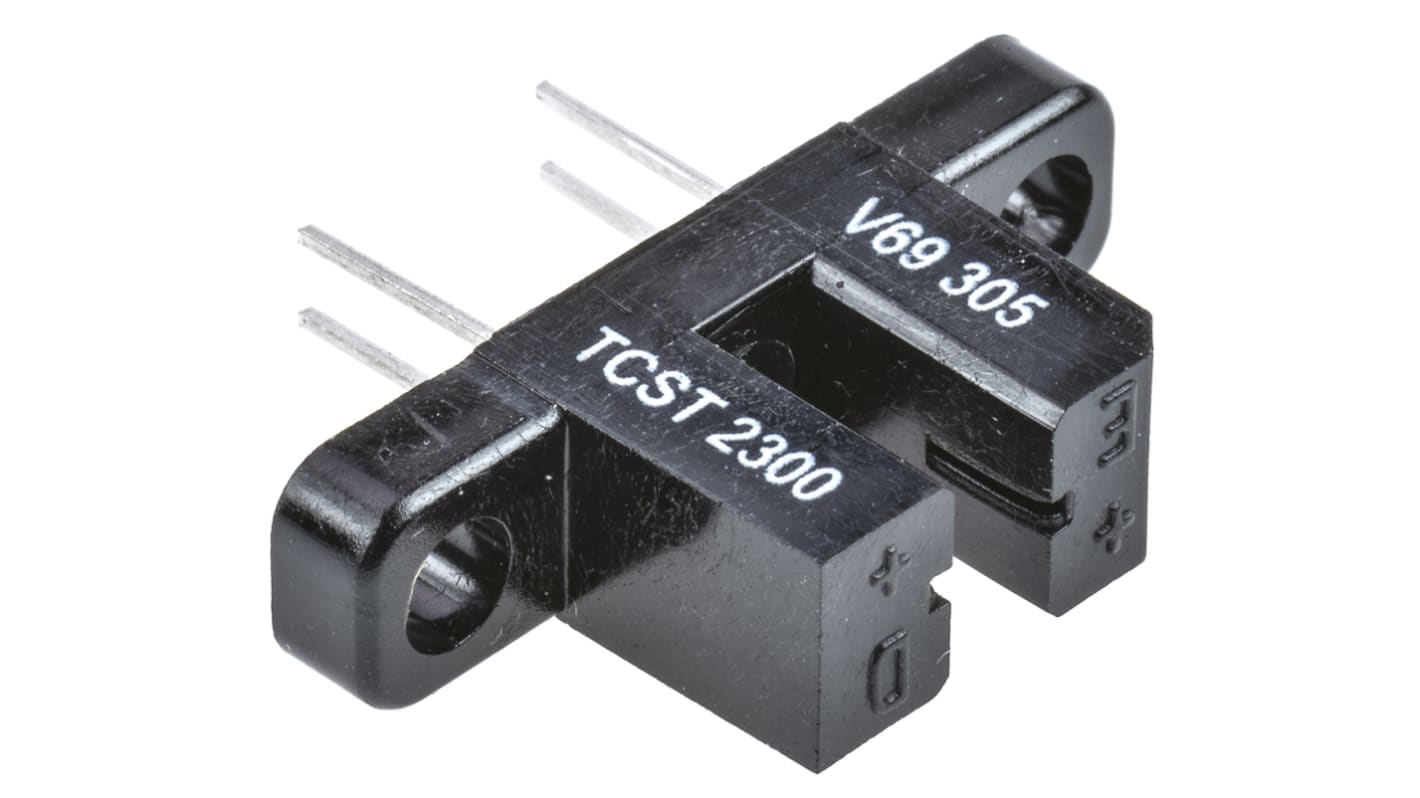

Name: TCST2300 Vishay, Through Hole Slotted Optical Switch, Phototransistor Output
Brand: Vishay
SKU: 708-5556P
Price: 5.80 MYR
Availability: Discontinued

Miniature Slotted Optical Switch, Vishay

The TCST2103, TCST2202, and TCST2300 are transmissive sensors that include an infrared emitter and phototransistor, located face-to-face on the optical axes in a leaded package which blocks visible light. These part numbers include options for aperture width.

Features:

• Package type: leaded
• Detector type: phototransistor
• Dimensions (L x W x H in mm): 24.5 x 6.3 x 10.8
• Gap (in mm): 3.1
• Typical output current under test: IC = 4 mA
(TCST2103)
• Typical output current under test: IC = 2 mA (TCST2202)
• Typical output current under test: IC = 0.5 mA (TCST2300)
• Daylight blocking filter
• Emitter wavelength: 950 nm
• Lead (Pb)-free soldering released

Applications:

• Optical switch
• Photo interrupter
• Counter
• Encoder

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Slotted Optical Switches, Vishay

Select all	Attribute	Value
	Brand	Vishay
	Output Device	Phototransistor
	Number of Channels	1
	Typical Rise Time	10µs
	Typical Fall Time	8µs
	Mounting Type	Through Hole
	Number of Pins	4
	Dimensions	24.5 x 6.3 x 11.1mm
	Height	11.1mm
	Length	24.5mm
	Maximum Operating Temperature	+85°C
	Minimum Operating Temperature	-55°C
	Slot Width	3.1mm
	Width	6.3mm
	Operating Temperature Range	-55 → +85°C
