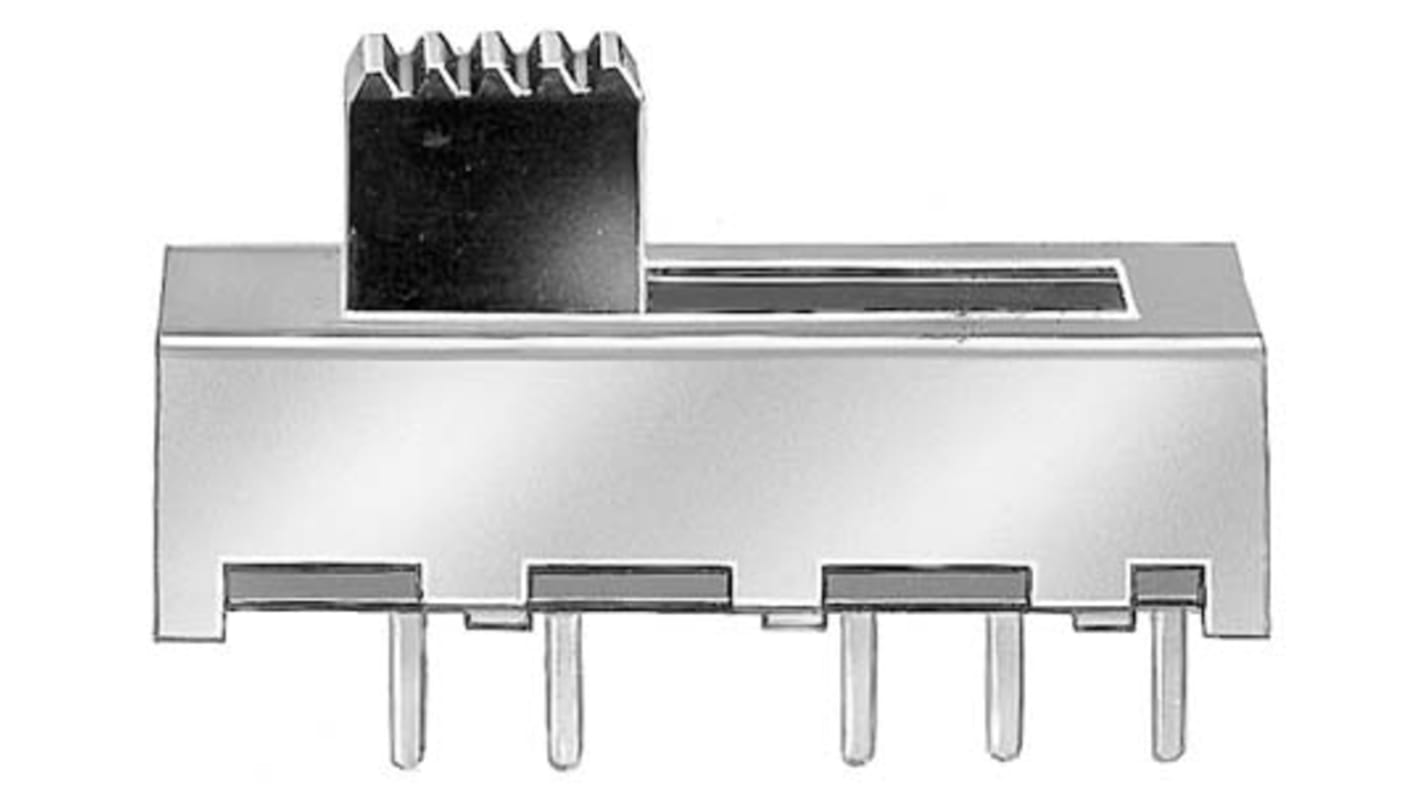

PCB Slide Switch DP Slide

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Knitter Switch Miniature Slide Switches - MFP Series

PCB mount, Break before make
Contact material: copper alloy, silver plated over nickel barrier
Mechanical life: 10000 operations min.

Specifications
Attribute Value
Contact Configuration DP
Mounting Type PCB
Terminal Type Pc Pin
Actuator Type Slide
Length 16mm
Width 6mm
Depth 9.2mm
Dimensions 16 x 6 x 9.2mm
100 In Global stock for delivery within 4 - 6 working days
Price Each (In a Bag of 5)
MYR 5.804
units
Per unit
Per Bag*
5 - 20
MYR5.804
MYR29.02
25 - 45
MYR5.598
MYR27.99
50 - 120
MYR5.392
MYR26.96
125 - 245
MYR5.146
MYR25.73
250 +
MYR4.838
MYR24.19
*price indicative
