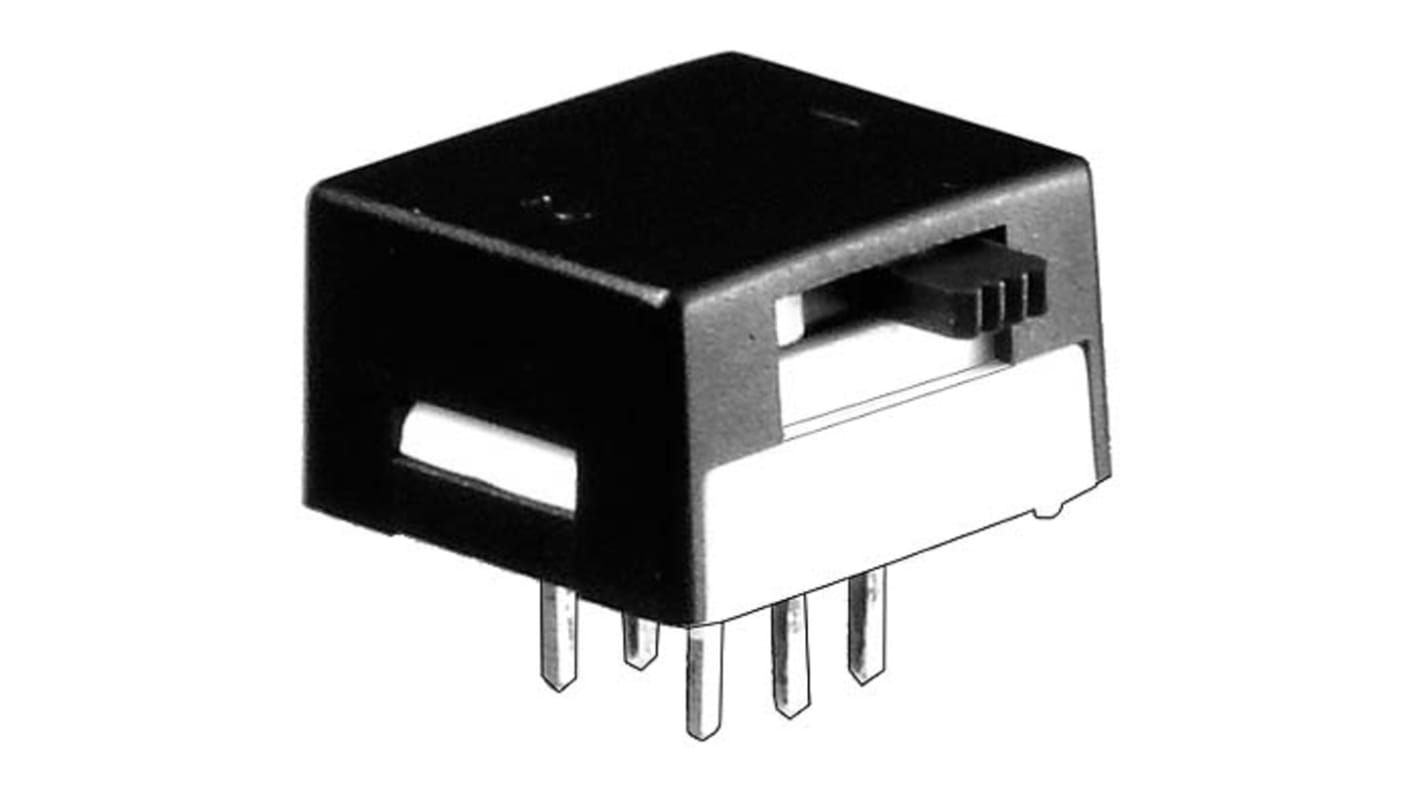

KNITTER-SWITCH PCB Slide Switch DPDT Latching 1 A @ 250 V ac, 3 A @ 120 V ac, 3 A @ 28 V dc Slide
- RS Stock No.:
- 913-8937
- Mfr. Part No.:
- MSS 3122 N
- Manufacturer:
- KNITTER-SWITCH
Temporarily out of stock - back order for despatch 16/09/2024, delivery within 4 working days from despatch date
Price Each
MYR19.05
| Units | Per Unit |
| 1 + | MYR19.05 |
- RS Stock No.:
- 913-8937
- Mfr. Part No.:
- MSS 3122 N
- Manufacturer:
- KNITTER-SWITCH
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Knitter Switch Miniature Slide Switches - MSS Series
Lead-free auto-solderable at 260ºC for 5 seconds
Black nylon actuator and case, white nylon base
Typical applications include PCB or front panel control for hand held products, instrumentation, white goods, medical, IT and telecomms equipment
Black nylon actuator and case, white nylon base
Typical applications include PCB or front panel control for hand held products, instrumentation, white goods, medical, IT and telecomms equipment
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | DPDT |
| Mounting Type | PCB |
| Switch Operation | Latching |
| Contact Current Rating | 1 A @ 250 V ac, 3 A @ 120 V ac, 3 A @ 28 V dc |
| Terminal Type | PC Pin |
| Actuator Type | Slide |
| Length | 14mm |
| Width | 12.8mm |
| Depth | 10.5mm |
| Dimensions | 14 x 12.8 x 10.5mm |
| Contact Resistance | 50mΩ |
| Voltage Rating | 28 V dc, 120 V ac, 250V ac |
| Mechanical Life | 20000Operations |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Contact Material | Copper Alloy |
| Minimum Operating Temperature | -40°C |
| Actuator Material | Nylon |
