Units	Per Unit
1 - 49	MYR28.56
50 - 99	MYR27.95
100 - 249	MYR27.12
250 +	MYR26.29

Select all	Attribute	Value
	Brand	C & K
	Contact Configuration	Double Pole Double Throw (DPDT)
	Mounting Type	Through Hole
	Contact Current Rating	5 A @ 250 V ac
	Terminal Type	PC Terminal
	Actuator Type	Slide
	Length	26.19mm
	Width	16.5mm
	Depth	15.75mm
	Dimensions	26.19 x 16.5 x 15.75mm
	Contact Resistance	10mΩ
	Mechanical Life	10000 (Electrical)Cycles
	Maximum Operating Temperature	+85°C
	Operating Temperature Range	-30 → +85°C
	Minimum Operating Temperature	-30°C
	Contact Material	Silver Plated Copper
	Actuator Material	Glass Fibre Reinforced PET

	Select all
	Brand C & K
	Contact Configuration Double Pole Double Throw (DPDT)
	Mounting Type Through Hole
	Contact Current Rating 5 A @ 250 V ac
	Terminal Type PC Terminal
	Actuator Type Slide
	Length 26.19mm
	Width 16.5mm
	Depth 15.75mm
	Dimensions 26.19 x 16.5 x 15.75mm
	Contact Resistance 10mΩ
	Mechanical Life 10000 (Electrical)Cycles
	Maximum Operating Temperature +85°C
	Operating Temperature Range -30 → +85°C
	Minimum Operating Temperature -30°C
	Contact Material Silver Plated Copper
	Actuator Material Glass Fibre Reinforced PET

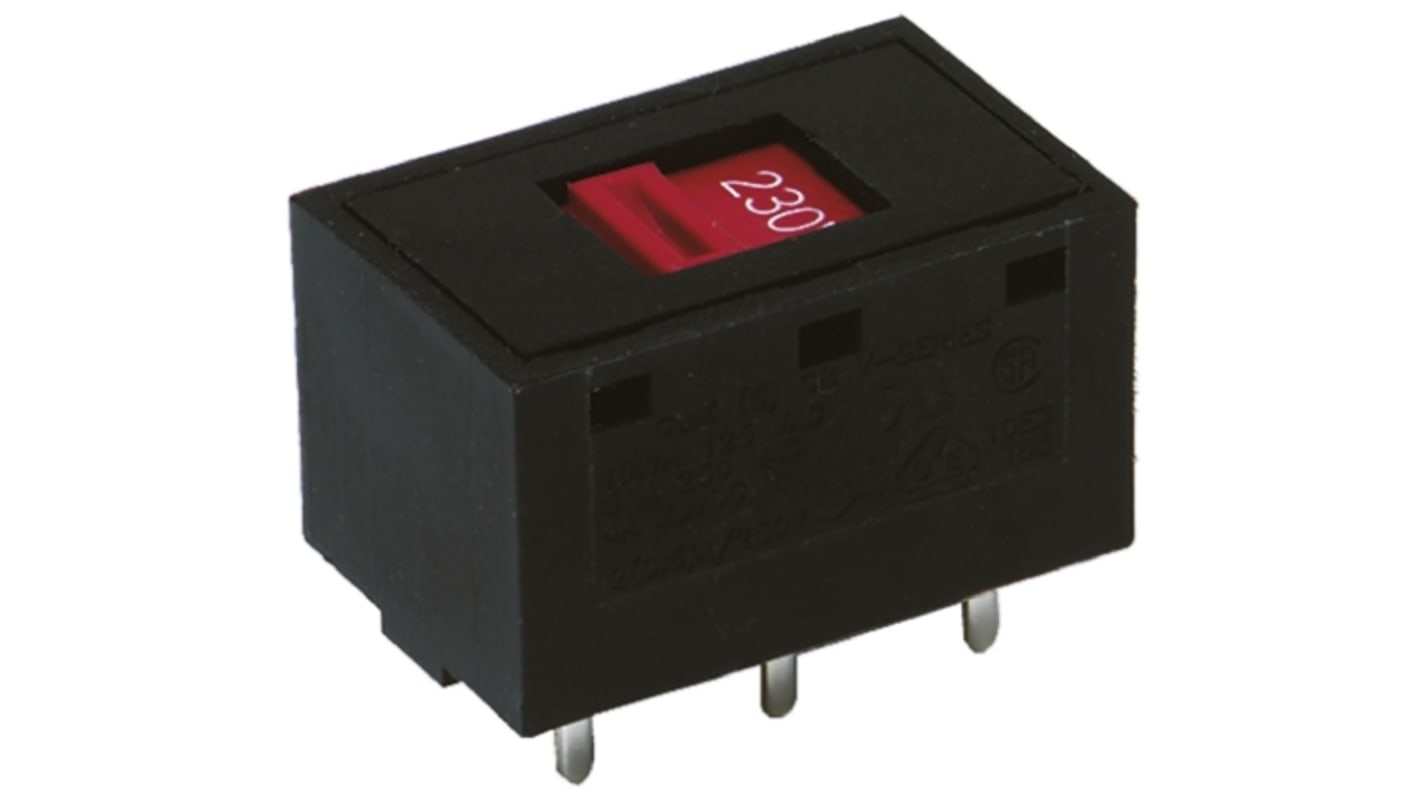

C & K Through Hole Slide Switch DPDT 5 A @ 250 V ac Slide

FREE delivery for orders over MYR500.00

C&K - V Series Slide Switch

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
