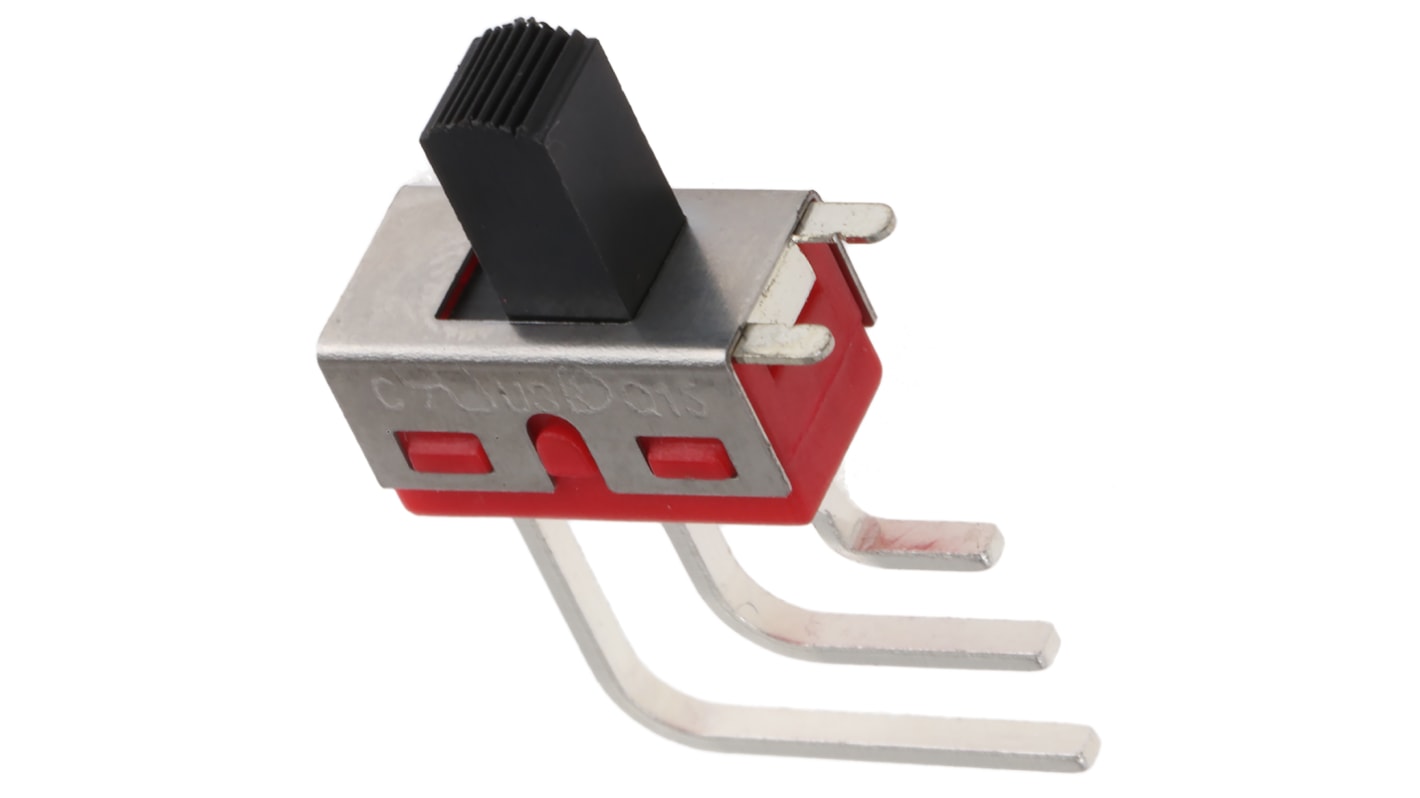

RS PRO PCB Slide Switch SPDT Latching 5 A @ 28 V dc Slide
- RS Stock No.:
- 734-7321
- Manufacturer:
- RS PRO
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR20.16
| Units | Per Unit |
| 1 - 4 | MYR20.16 |
| 5 + | MYR16.60 |
- RS Stock No.:
- 734-7321
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
Product Details
RS - Miniature Slide Switches
Suitable for wave soldering at 260ºC for 5 seconds
Black nylon actuator, DAP case and stainless steel housing
Typical applications include PCB or front panel control for hand held products, instrumentation, white goods, medical, IT and telecomms equipment
Black nylon actuator, DAP case and stainless steel housing
Typical applications include PCB or front panel control for hand held products, instrumentation, white goods, medical, IT and telecomms equipment
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Mounting Type | PCB |
| Switch Operation | Latching |
| Contact Current Rating | 5 A @ 28 V dc |
| Terminal Type | Through Hole |
| Actuator Type | Slide |
| Length | 12.7mm |
| Width | 6.6mm |
| Depth | 17.44mm |
| Dimensions | 12.7 x 6.6 x 17.44mm |
| Contact Resistance | 10mΩ |
| Mechanical Life | 30000Cycles |
| Voltage Rating | 28V dc |
| Actuator Material | Nylon |
| Maximum Operating Temperature | +85°C |
| Contact Material | Silver Plated Brass |
| Operating Temperature Range | -30 → +85°C |
| Minimum Operating Temperature | -30°C |
