APEM PCB Slide Switch SPDT On-Off-On 100 mA @ 30 V dc Slide
- RS Stock No.:
- 692-6318
- Mfr. Part No.:
- 25139NLDH
- Manufacturer:
- APEM
237 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR24.55
| Units | Per Unit |
| 1 + | MYR24.55 |
- RS Stock No.:
- 692-6318
- Mfr. Part No.:
- 25139NLDH
- Manufacturer:
- APEM
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details

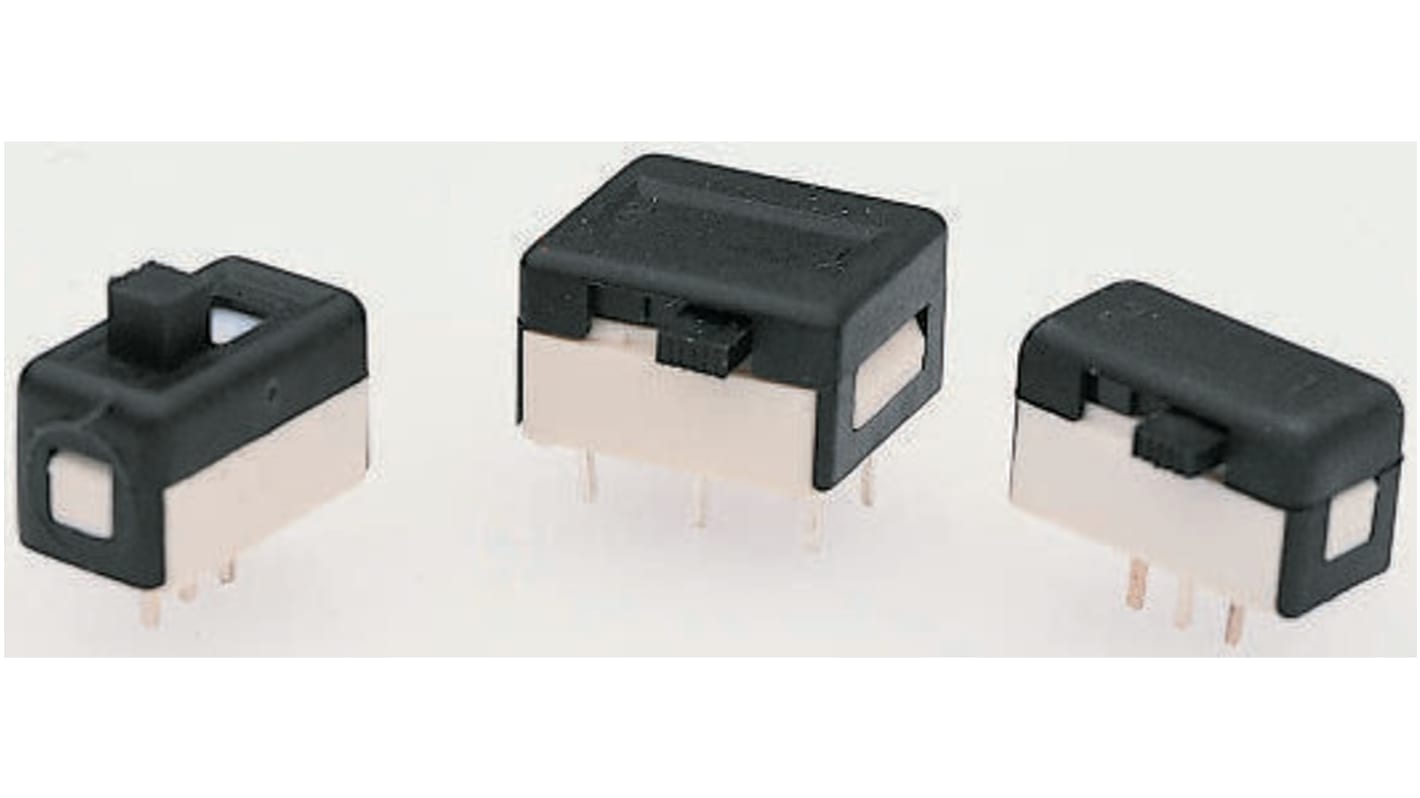

Apem Miniature Slide Switches - 25000N Series
Top & side actuation versions
Sealed terminals to prevent ingress of flux during soldering
Electrical life: 10000 cycles
Glass filled Polyamide actuator and PBT high temperature thermoplastic case
Sealed terminals to prevent ingress of flux during soldering
Electrical life: 10000 cycles
Glass filled Polyamide actuator and PBT high temperature thermoplastic case
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Mounting Type | PCB |
| Switch Operation | On-Off-On |
| Contact Current Rating | 100 mA @ 30 V dc |
| Terminal Type | Through Hole |
| Actuator Type | Slide |
| Length | 14.1mm |
| Width | 7.5mm |
| Depth | 8.1mm |
| Dimensions | 14.1 x 8.1 x 7.5mm |
| Contact Resistance | 50mΩ |
| Mechanical Life | 20000Operations |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
| Contact Material | Gold Plated Brass |
| Actuator Material | Glass Fibre Reinforced PA |
| Maximum Operating Temperature | +85°C |
