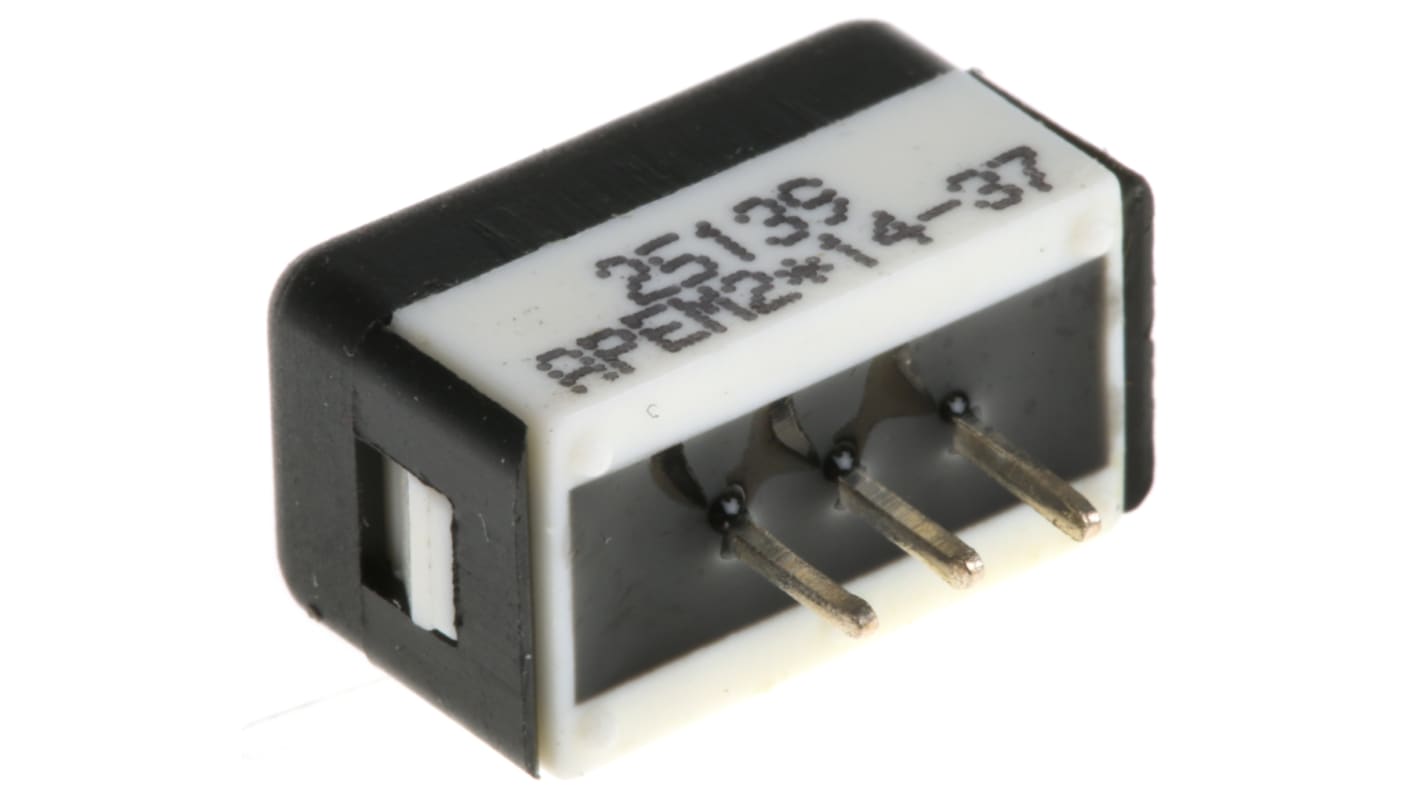

APEM PCB Slide Switch SPDT On-Off-On 1 A @ 30 V dc Slide
- RS Stock No.:
- 692-6254P
- Mfr. Part No.:
- 25139NAB
- Manufacturer:
- APEM
Subtotal 1 unit (supplied in a tray)**
MYR24.18
21 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over MYR500.00
Real time qty checker
Units | Per Unit |
|---|---|
| 1 + | MYR24.18 |
**price indicative
- RS Stock No.:
- 692-6254P
- Mfr. Part No.:
- 25139NAB
- Manufacturer:
- APEM
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | APEM | |
| Contact Configuration | Single Pole Double Throw (SPDT) | |
| Mounting Type | PCB | |
| Switch Operation | On-Off-On | |
| Contact Current Rating | 1 A @ 30 V dc | |
| Terminal Type | Through Hole | |
| Actuator Type | Slide | |
| Length | 14.1mm | |
| Width | 7.5mm | |
| Depth | 11.9mm | |
| Dimensions | 14.1 x 11.9 x 7.5mm | |
| Contact Resistance | 10mΩ | |
| Mechanical Life | 20000Operations | |
| Actuator Material | Glass Fibre Reinforced PA | |
| Operating Temperature Range | -40 → +85°C | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Silver | |
| Maximum Operating Temperature | +85°C | |
