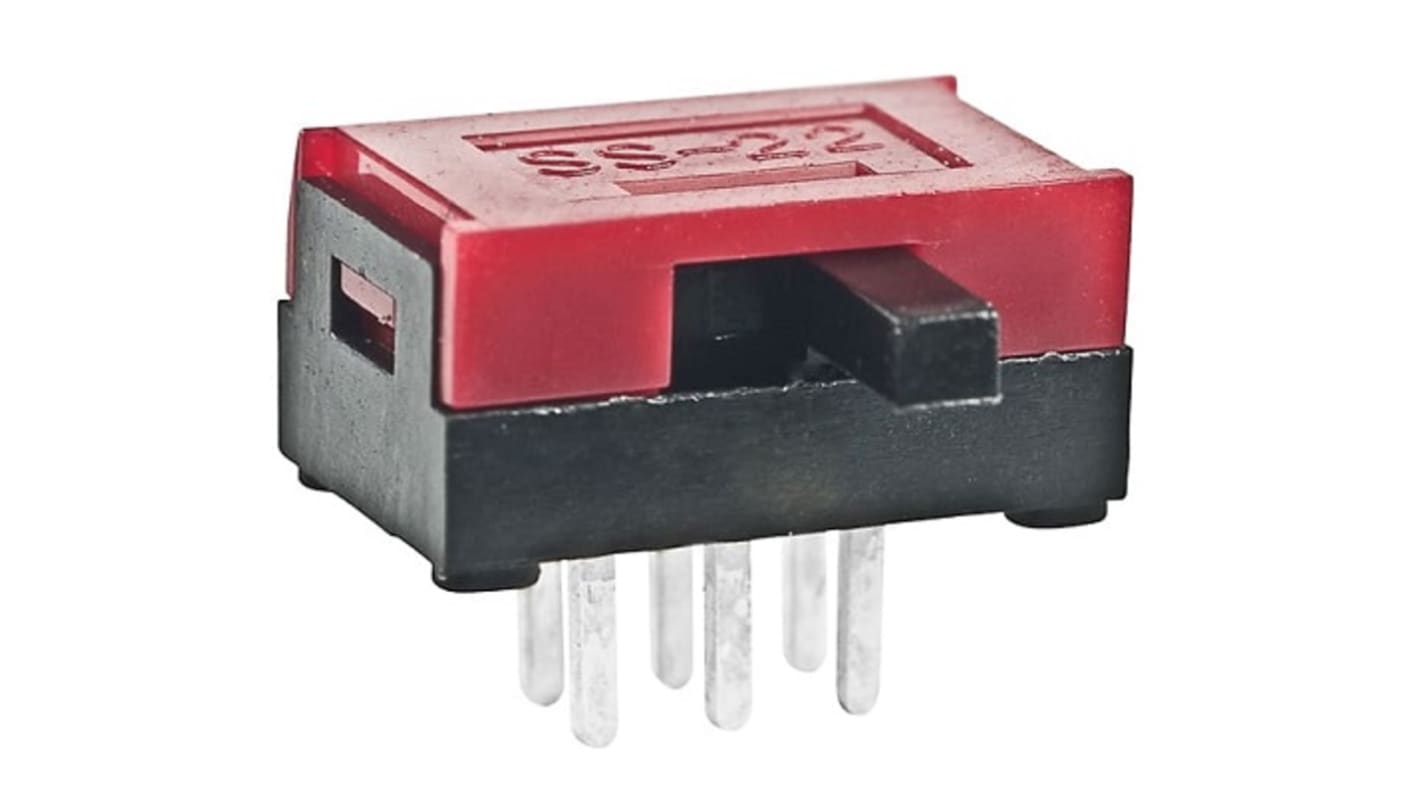

PCB Slide Switch Double Pole Double Throw (DPDT) Latching 100 mA @ 30 V dc Slide

  • RS Stock No. 429-0027
  • Mfr. Part No. SS-22SBH2
  • Manufacturer NKK Switches
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

Subminiature Slide Switch SS Series

Operates smoothly
Dual contact with high contact reliability
Self-cleaning by dual side sliding contact mechanism
High ingress protection

Note

Solder heat-resistance leave at room temperature for two minutes after soldering. Not completely washable.

//media.rs-online.com/t_line/LJ428994-08.gif
Specifications
Attribute Value
Contact Configuration Double Pole Double Throw (DPDT)
Mounting Type PCB
Switch Operation Latching
Contact Current Rating 100 mA @ 30 V dc
Terminal Type Through Hole
Actuator Type Slide
Contact Resistance 20mΩ
Mechanical Life 10000Operations
Contact Material Silver
Operating Temperature Range -15 → +60°C
Actuator Material Polyamide
Maximum Operating Temperature +60°C
Minimum Operating Temperature -15°C
1 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 6.75
units
Per unit
1 - 24
MYR6.75
25 - 99
MYR5.91
100 - 249
MYR5.14
250 - 499
MYR4.29
500 +
MYR3.45
