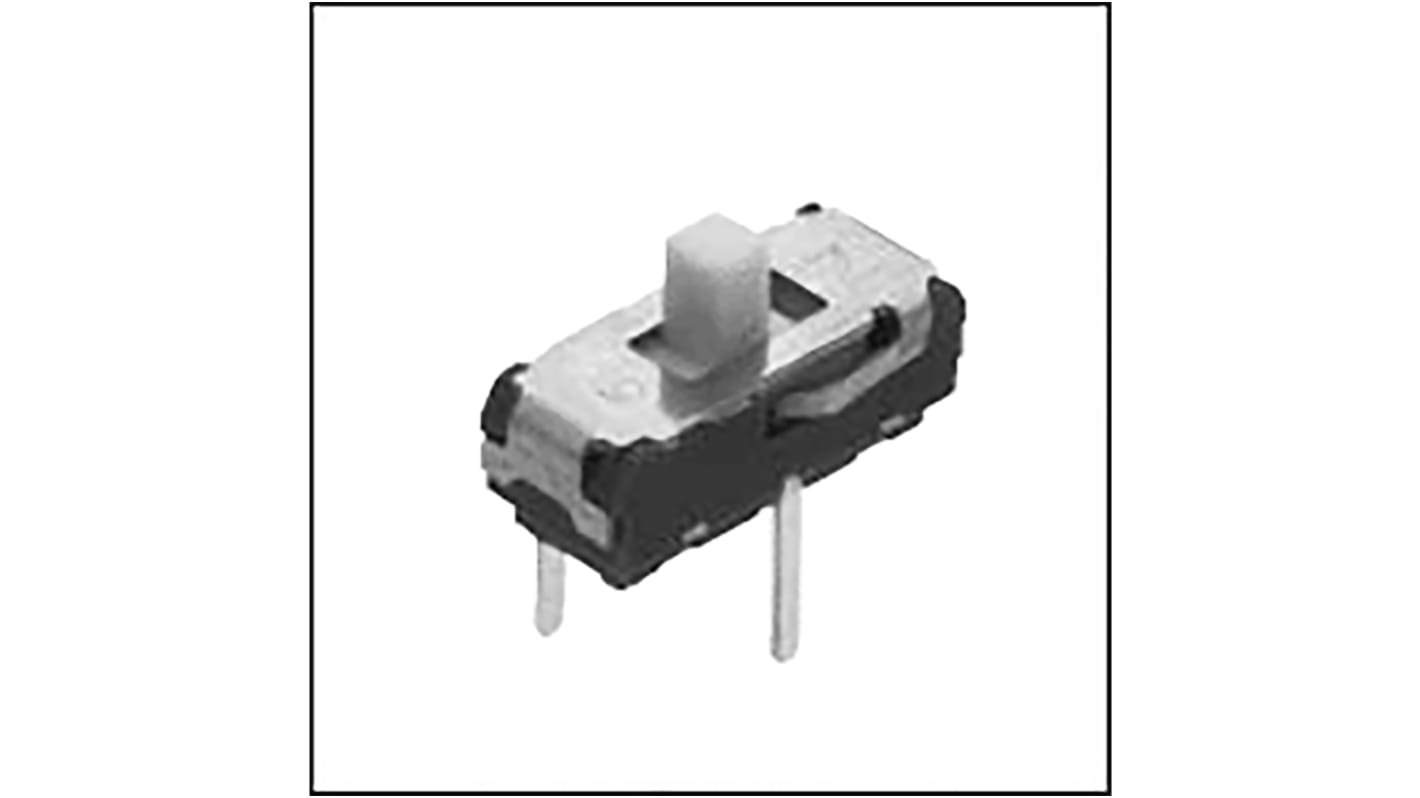

Alps Alpine Through Hole Slide Switch SPDT Latching 300 mA Slide
- RS Stock No.:
- 123-8913
- Mfr. Part No.:
- SSSS213000
- Manufacturer:
- Alps Alpine
55 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 5)
MYR4.76
| Units | Per Unit | Per Pack* |
| 5 - 45 | MYR4.76 | MYR23.80 |
| 50 - 95 | MYR4.702 | MYR23.51 |
| 100 - 245 | MYR4.616 | MYR23.08 |
| 250 + | MYR4.544 | MYR22.72 |
| *price indicative | ||
- RS Stock No.:
- 123-8913
- Mfr. Part No.:
- SSSS213000
- Manufacturer:
- Alps Alpine
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
Alps SSSS Series Slide Switch
Alps SSSS series of slide switches are an excellent choice for compact & high density portable devices. The SSSS series can be simply mounted via a snap-in method, making installation quick and keeping maintainence downtime at a low.
Features and Benefits
Offered in both horizontal & vertical actuator options.
2 mm travel slide switch.
Offered with a 2 mm long actuator.
10,000 cycle mean time before failure (MTBF).
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPDT |
| Mounting Type | Through Hole |
| Switch Operation | Latching |
| Contact Current Rating | 300 mA |
| Terminal Type | Solder |
| Actuator Type | Slide |
| Length | 9mm |
| Width | 3.5mm |
| Depth | 5.5mm |
| Dimensions | 9 x 3.5 x 5.5mm |
| Contact Resistance | 130 (After Lifetime) mΩ, 70 (Initial) mΩ |
| Voltage Rating | 6V dc |
| Mechanical Life | 10000Cycles |
| Operating Temperature Range | -40 → +85°C |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
