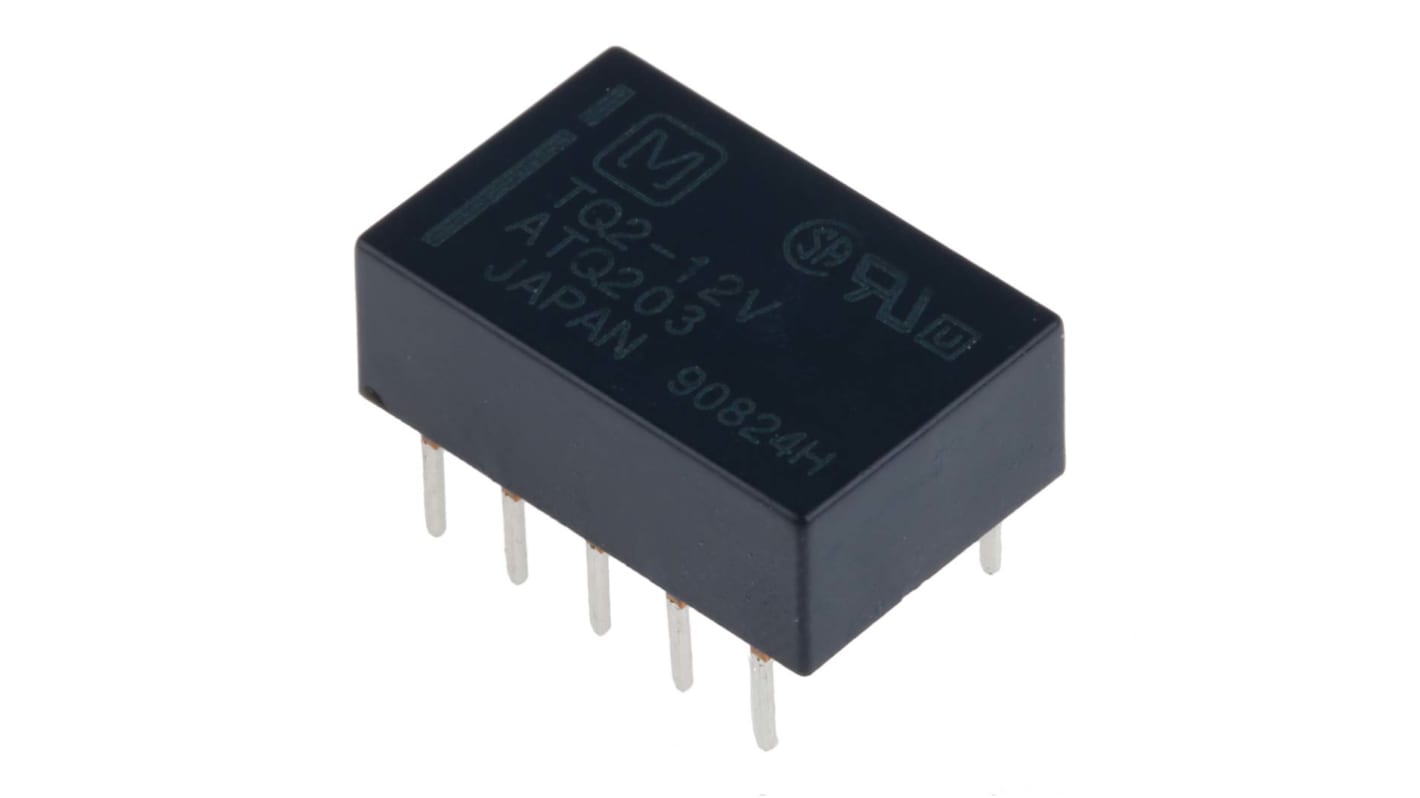

Panasonic PCB Mount Signal Relay, 12V dc Coil, DPDT

This image is representative of the product range

View all Signal Relays
Bulk discount available

Subtotal (1 unit)*

MYR13.74

Add to Basket
Select or type quantity
In Stock
  • 816 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per Unit
1 - 12MYR13.74
13 - 24MYR13.25
25 +MYR12.65

*price indicative

RS Stock No.:
815-4855
Distrelec Article No.:
137-10-951
Mfr. Part No.:
TQ2-12V
Manufacturer:
Panasonic
Find similar products by selecting one or more attributes.
Select all

Brand

Panasonic

Coil Voltage

12V dc

Contact Configuration

DPDT

Mounting Type

PCB Mount

Length

14mm

Depth

9mm

Height

5mm

Dimensions

14 x 9 x 5mm

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

-40°C

Electrical Life

200000 Cycles

Standards Met

CSA, UL

Contact Material

Gold Plated

Operating Temperature Range

-40 → +70°C

Coil Resistance

1028Ω

Life

200000Cycles

Relay Switching Classification

General Purpose Relay

Coil Power

140mW

COO (Country of Origin):
JP

TQ2 Series


These surface mount relays have a low profile of 6mm and offer high sensitivity.

Flat compact body with low profile surface-mount terminals
High frequency characteristics
Suitable for SMD automatic insertion
Low thermal EMF (approx 2μV)
Ideal for communication applications, measurement and QA equipment etc

Note

For through hole types see stk no. 113-8825 typically

Approvals

UL, CSA
