    Panasonic PCB Mount Latching Signal Relay, 24V dc Coil, DPDT

    Panasonic PCB Mount Latching Signal Relay, 24V dc Coil, DPDT

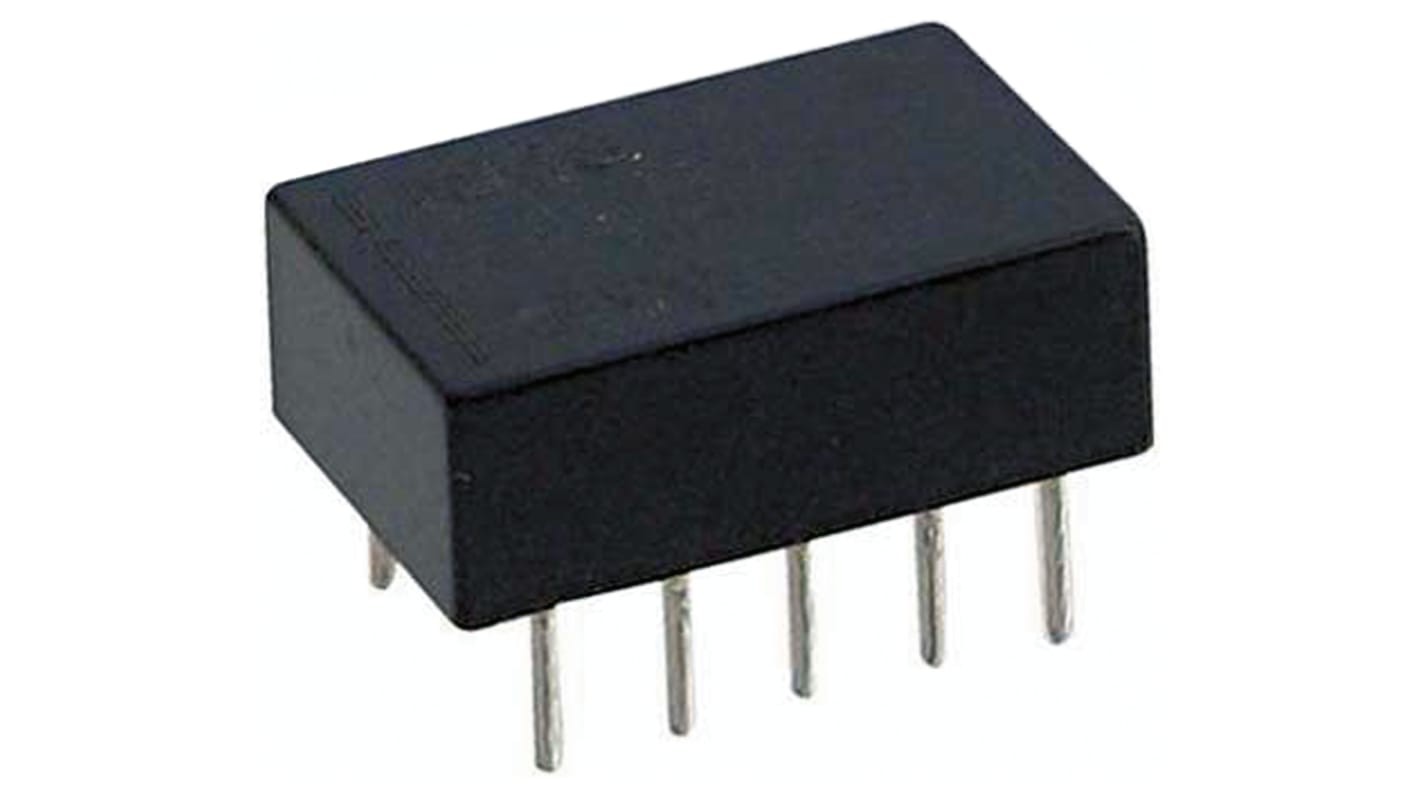

    This image is representative of the product range

    1 / 1
    View all Signal Relays

    Subtotal (1 tube of 50 units)**

    MYR876.15

    Add to Basket
    Select or type quantity
    Temporarily out of stock - back order for despatch 02/01/2026, delivery within 4 working days from despatch date*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Units
    Per Unit
    Per Tube**
    50 +MYR17.523MYR876.15

    **price indicative

    Alternative

    This product is not currently available. Here is our alternative recommendation.

    presentation
    Panasonic PCB Mount Latching Signal Relay, 24V dc Coil, DPDT
    RS Stock No.
    815-4962

    Each

    MYR18.39

    RS Stock No.:
    173-9242
    Mfr. Part No.:
    TQ2-L2-24V
    Manufacturer:
    Panasonic
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Panasonic

    Coil Voltage

    24V dc

    Contact Configuration

    DPDT

    Mounting Type

    PCB Mount

    Latching

    Yes

    Length

    14mm

    Depth

    9mm

    Height

    5mm

    Dimensions

    14 x 9 x 5mm

    Life

    200000Cycles

    Standards Met

    CSA, UL

    Relay Switching Classification

    General Purpose Relay

    Contact Material

    Gold Plated

    Maximum Operating Temperature

    +70°C

    Minimum Operating Temperature

    -40°C

    Electrical Life

    200000 Cycles

    Coil Resistance

    1920Ω

    Operating Temperature Range

    -40 → +70°C

    Coil Power

    300mW
