    Panasonic PCB Mount Latching Signal Relay, 4.5V dc Coil, 2A Switching Current, DPDT

    Panasonic PCB Mount Latching Signal Relay, 4.5V dc Coil, 2A Switching Current, DPDT

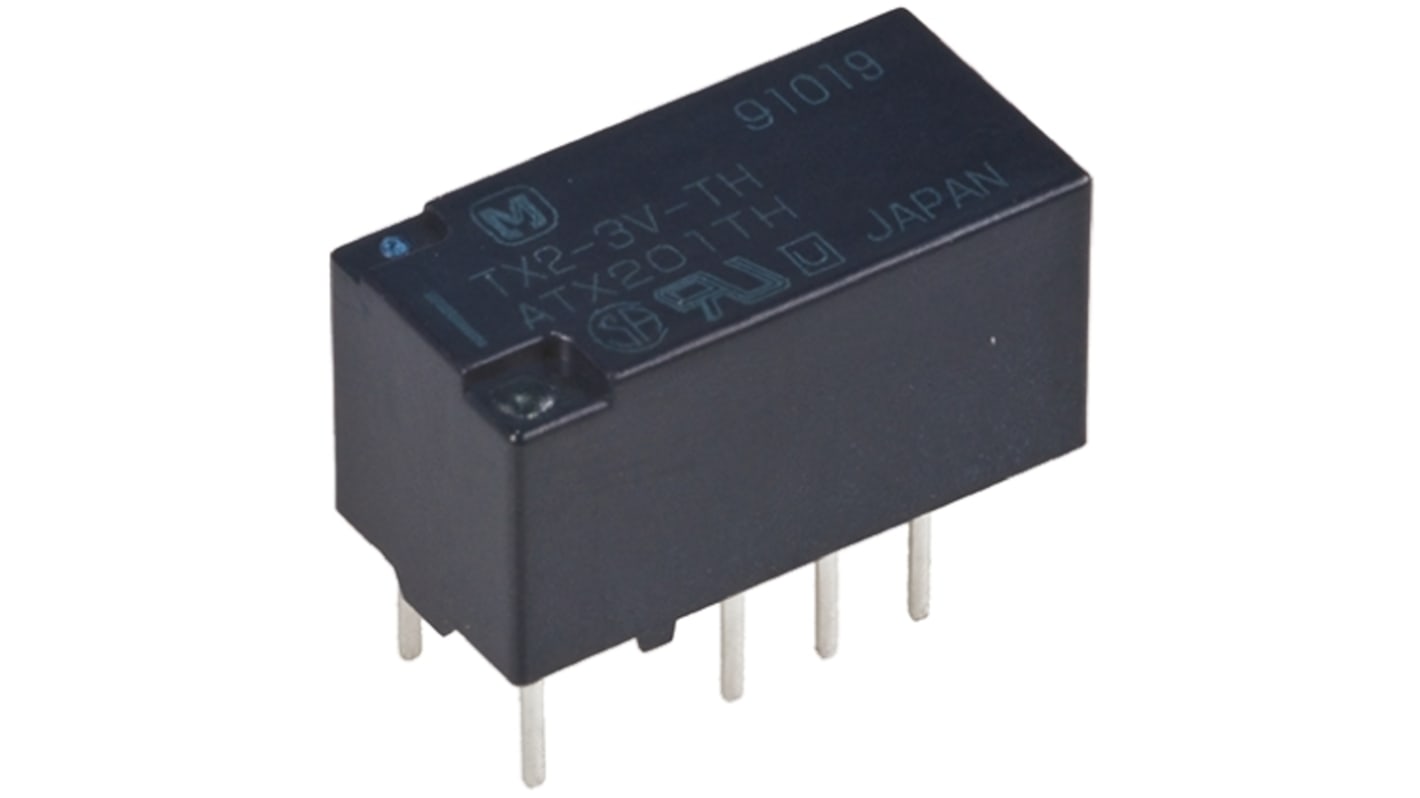

    This image is representative of the product range

    1 / 1
    View all Signal Relays
    Bulk discount available

    Subtotal (1 tube of 40 units)**

    MYR685.48

    Add to Basket
    Select or type quantity
    Temporarily out of stock - back order for despatch 24/10/2025, delivery within 4 working days from despatch date*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Units
    Per Unit
    Per Tube**
    40 - 40MYR17.137MYR685.48
    80 - 120MYR16.76MYR670.40
    160 +MYR16.451MYR658.04

    **price indicative

    RS Stock No.:
    173-8991
    Mfr. Part No.:
    TX2-L2-4.5V-TH
    Manufacturer:
    Panasonic
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Panasonic

    Coil Voltage

    4.5V dc

    Contact Configuration

    DPDT

    Mounting Type

    PCB Mount

    Maximum Switching Current AC

    7.5 A

    Maximum Switching Current DC

    7.5 A

    Maximum Switching Voltage AC

    250V ac

    Maximum Switching Voltage DC

    220V dc

    Maximum Switching Power DC

    60 W

    Length

    15mm

    Latching

    Yes

    Depth

    7.4mm

    Height

    8.2mm

    Dimensions

    15 x 8.2 x 7.4mm

    Terminal Type

    Through Hole

    Switching Current

    2A

    Contact Material

    Gold Plated

    Operating Temperature Range

    -40 → +85°C

    Maximum Switching Power AC

    60VA

    Life

    100000000 cycles

    Isolation Coil To Contact

    2kV rms

    Coil Power

    140mW

    Maximum Operating Temperature

    +85°C

    Minimum Operating Temperature

    -40°C

    Coil Resistance

    145 <ohm/>
