    Panasonic Surface Mount Signal Relay, 12V dc Coil, 1A Switching Current, SPDT

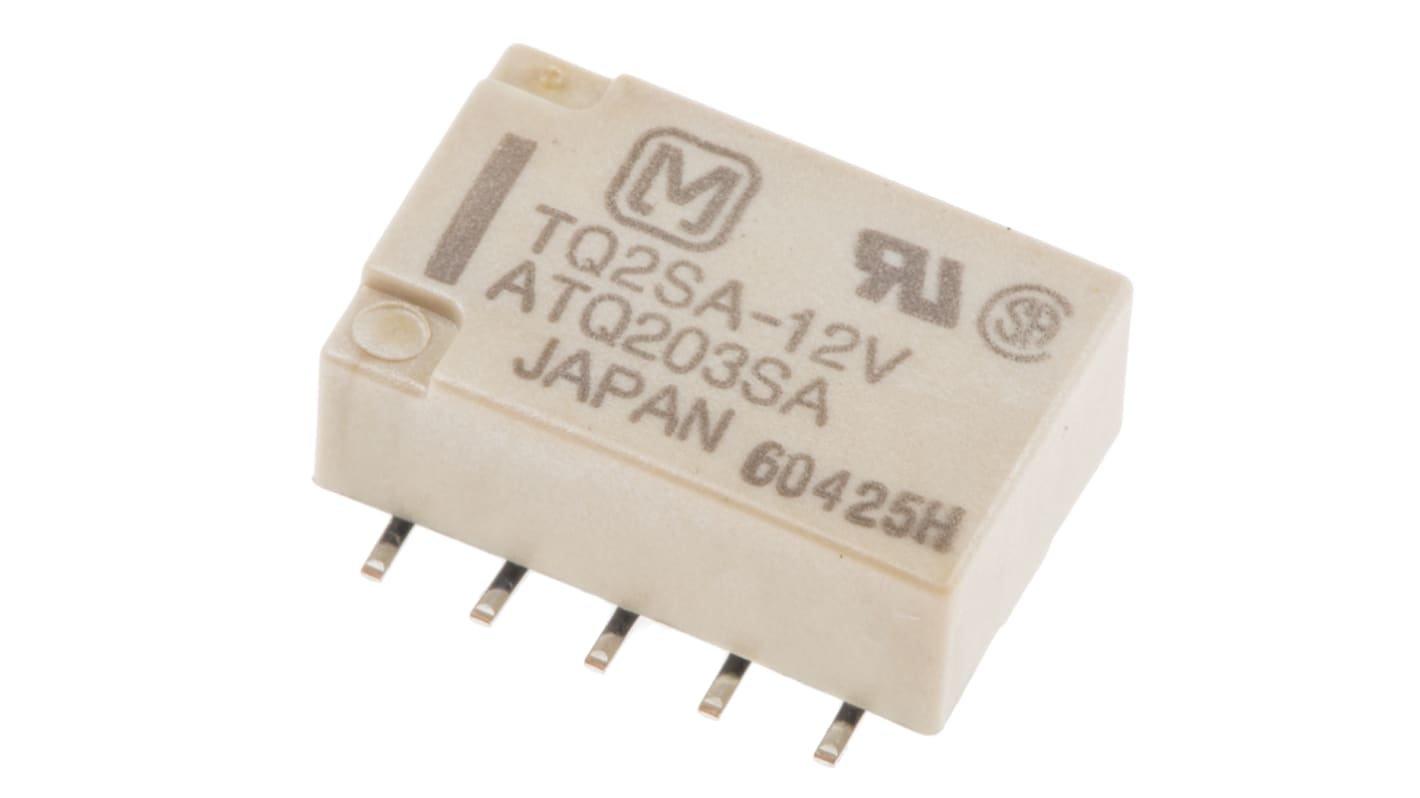

    This image is representative of the product range

    View all Signal Relays
    Bulk discount available

    Subtotal (1 tube of 50 units)**

    MYR637.55

    Add to Basket
    Select or type quantity
    100 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ*

    * Delivery dates may change based on your chosen quantity and delivery address.

    Real time qty checker
    Units
    Per Unit
    Per Tube**
    50 - 50MYR12.751MYR637.55
    100 - 150MYR12.471MYR623.55
    200 +MYR12.241MYR612.05

    **price indicative

    RS Stock No.:
    173-8204
    Mfr. Part No.:
    TQ2SA-12V
    Manufacturer:
    Panasonic
    Find similar products by selecting one or more attributes.
    Select all

    Brand

    Panasonic

    Coil Voltage

    12V dc

    Contact Configuration

    SPDT

    Mounting Type

    Surface Mount

    Maximum Switching Current DC

    1 A

    Maximum Switching Voltage AC

    125V ac

    Maximum Switching Voltage DC

    110V dc

    Series

    TQ

    Maximum Switching Power DC

    30 W

    Latching

    No

    Length

    14mm

    Depth

    9mm

    Height

    5.6mm

    Dimensions

    14 x 9 x 5.6mm

    Terminal Type

    PCB Pin

    Number of Poles

    1

    Application

    General Purpose

    Switching Current

    1A

    Maximum Switching Power AC

    62.5VA

    Isolation Coil To Contact

    1.5kV rms

    Features

    High Density Mounting Possible, Low Thermal Electromotive Force, Self Clinching Terminal Also Available

    Minimum Operating Temperature

    -40°C

    Operating Temperature Range

    -40 → +70°C

    Coil Power

    140mW

    Life

    100000000 (Electrical) cycles

    Coil Resistance

    1020Ω

    Contact Material

    Gold Plated

    Maximum Operating Temperature

    +70°C
