TE Connectivity Surface Mount Signal Relay, 12V dc Coil, 2A Switching Current, DPDT

RS Stock No.:: 515-498
Mfr. Part No.:: IM26GR
Manufacturer:: TE Connectivity

TE Connectivity Surface Mount Signal Relay, 12V dc Coil, 2A Switching Current, DPDT

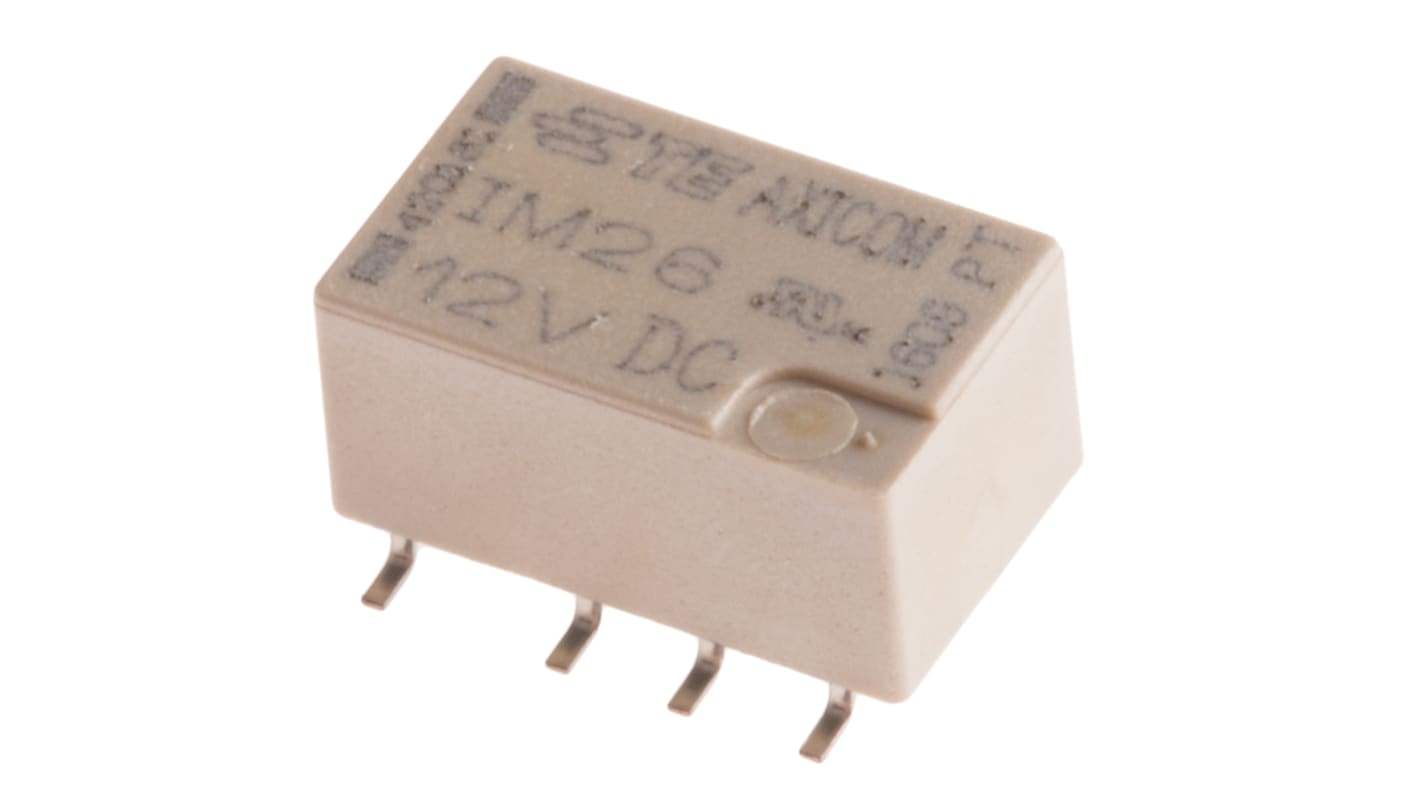

This image is representative of the product range

Bulk discount available

Subtotal (1 unit)*

MYR20.31

FREE delivery for orders over RM 500.00

In Stock

2 unit(s) ready to ship from another location
Plus 433 unit(s) shipping from 24 December 2025

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 - 249	MYR20.31
250 - 499	MYR19.88
500 +	MYR19.28

*price indicative

RS Stock No.:: 515-498
Mfr. Part No.:: IM26GR
Manufacturer:: TE Connectivity

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TE Connectivity
	Coil Voltage	12V dc
	Contact Configuration	DPDT
	Mounting Type	Surface Mount
	Maximum Switching Current DC	2 A
	Maximum Switching Voltage AC	250V ac
	Maximum Switching Voltage DC	220V dc
	Maximum Switching Power DC	60 W
	Series	IM
	Length	10mm
	Latching	No
	Depth	6mm
	Height	5.65mm
	Dimensions	10 x 6 x 5.65mm
	Terminal Type	Through Hole
	Number of Poles	2
	Switching Current	2A
	Application	Signal
	Maximum Switching Power AC	62.5 VA
	Operating Temperature Range	-40 → +85°C
	Coil Power	50mW
	Contact Material	Gold Plated
	Features	Bifurcated Contacts, Low Coil Power Consumption
	Minimum Operating Temperature	-40°C
	Coil Resistance	2.88 kΩ
	Maximum Operating Temperature	+85°C

	Select all
	Brand TE Connectivity
	Coil Voltage 12V dc
	Contact Configuration DPDT
	Mounting Type Surface Mount
	Maximum Switching Current DC 2 A
	Maximum Switching Voltage AC 250V ac
	Maximum Switching Voltage DC 220V dc
	Maximum Switching Power DC 60 W
	Series IM
	Length 10mm
	Latching No
	Depth 6mm
	Height 5.65mm
	Dimensions 10 x 6 x 5.65mm
	Terminal Type Through Hole
	Number of Poles 2
	Switching Current 2A
	Application Signal
	Maximum Switching Power AC 62.5 VA
	Operating Temperature Range -40 → +85°C
	Coil Power 50mW
	Contact Material Gold Plated
	Features Bifurcated Contacts, Low Coil Power Consumption
	Minimum Operating Temperature -40°C
	Coil Resistance 2.88 kΩ
	Maximum Operating Temperature +85°C

Datasheet

Telecom/Signal Relay IM Series

Slimline and low profile - 10x6x5.65 mm
Gull wing SMT legs
Bifurcated contacts, gold plated
Hermetically sealed (RT V), IP67
High mechanical shock resistance up to 300G functional, 500G survival
Insulation resistance at 500Vdc >10⁹Ω
High surge capability - meets Telcordia TR-NWT-001089 (2 / 10 μs) & EC 60950 (10 / 700 μs)

Approvals

TE Connectivity DPDT Non-latching Relay

The TE Connectivity IM series PCB mount Slimline low profile telecom non-latching relay has a contact configuration of DPDT. It is actuated with 12VDC coil voltage and 2A switching current. This relay has SMT gull-wing legs and hermetically sealed construction.

Features and Benefits

Coil power is 50mW
Coil resistance is 2.88Kohm
Gold-plated bifurcated contacts
High mechanical shock resistance is up to 300G functional, 500G survival
High surge capability
Insulation resistance at 500VDC >10^9ohm
Terminal type is surface mount

Certifications

IP 67 rated
UL approved
