Festo Shock Absorber, YSR-20-25-C, 104 mm Body Length, 149.5 mm Body Length, 25 mm Body Length

RS Stock No.:: 202-3096
Mfr. Part No.:: YSR-20-25-C
Manufacturer:: Festo

Festo Shock Absorber, YSR-20-25-C, 104 mm Body Length, 149.5 mm Body Length, 25 mm Body Length

Subtotal (1 unit)*

MYR1,644.42

FREE delivery for orders over RM 500.00

In Stock

9 unit(s) ready to ship from another location
Plus 5 unit(s) shipping from 13 February 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per Unit
1 +	MYR1,644.42

*price indicative

RS Stock No.:: 202-3096
Mfr. Part No.:: YSR-20-25-C
Manufacturer:: Festo

Specifications

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Product Type	Shock Absorber
	Overall Length	149.5mm
	Length	104mm
	Stroke Length	25mm
	Series	YSR
	Maximum Energy Capacity Per Hour	92000Nm
	Maximum Energy Capacity Per Cycle	60Nm
	Minimum Operating Temperature	-10°C
	Standards/Approvals	RoHS
	Maximum Operating Temperature	80°C

	Select all
	Brand Festo
	Product Type Shock Absorber
	Overall Length 149.5mm
	Length 104mm
	Stroke Length 25mm
	Series YSR
	Maximum Energy Capacity Per Hour 92000Nm
	Maximum Energy Capacity Per Cycle 60Nm
	Minimum Operating Temperature -10°C
	Standards/Approvals RoHS
	Maximum Operating Temperature 80°C

COO (Country of Origin):: DE

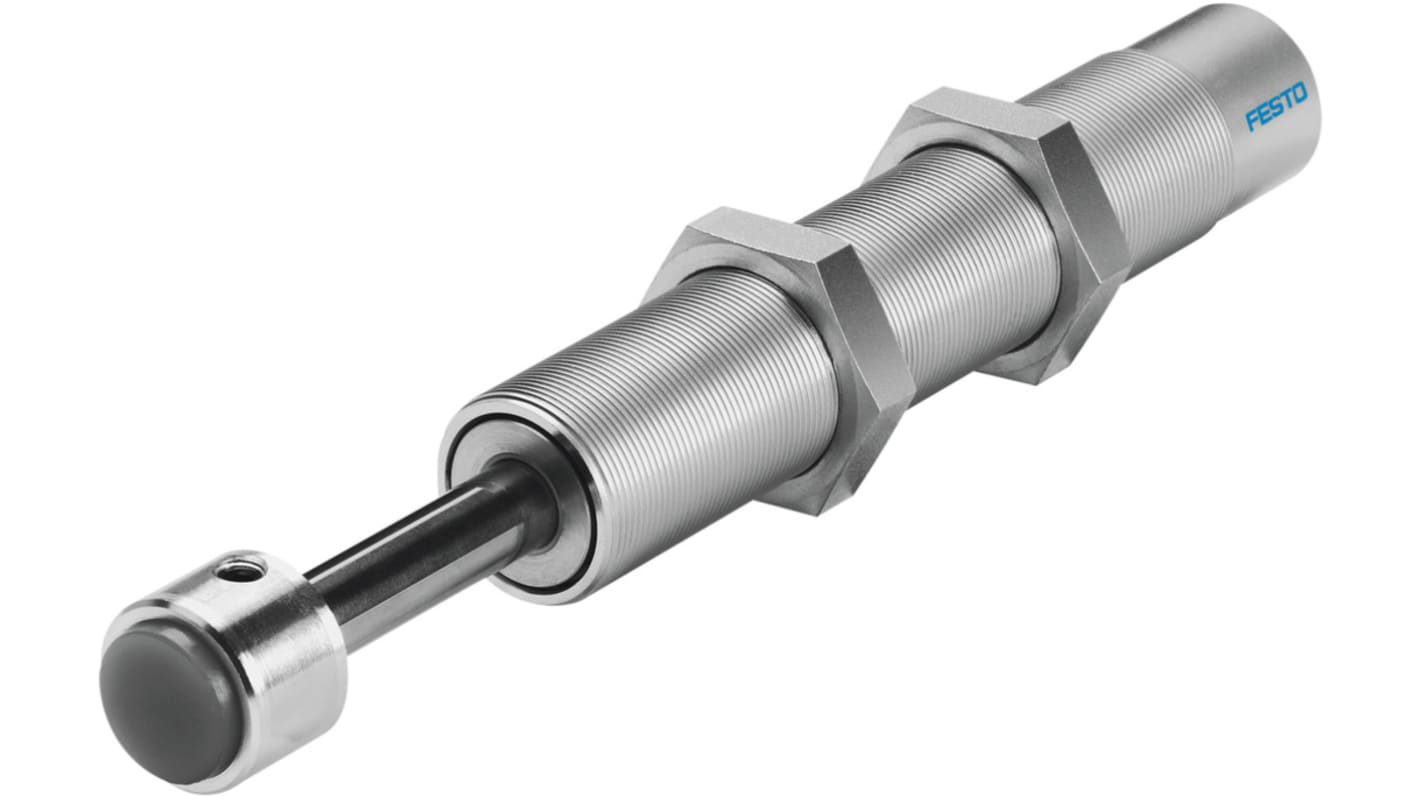

Festo Shock Absorber, 25mm Stroke, -10 to 80°C Ambient Temperature - YSR-20-25-C, Numeric Part Number: 34574

This shock absorber features a robust self-adjusting cushioning mechanism, a maximum stop force of 3000 N, and an ambient temperature range of -10°C to 80°C. Its design ensures efficiency in operation, with a reset time at room temperature of just 0.3 seconds. It is suitable for environments with moderate corrosion stress, as defined by CRC class 2.

Features & Benefits

• Self-adjusting cushioning enhances operational efficiency

• Single-acting design simplifies installation

• Corrosion resistance class 2 provides protection against moderate corrosion

• Return force of 10N ensures effective impact management

• Quick reset time improves cycle times for machinery

Applications

• Self-adjusting cushioning enhances operational efficiency

• Single-acting design simplifies installation

• Corrosion resistance class 2 provides protection against moderate corrosion

• Return force of 10N ensures effective impact management

• Quick reset time improves cycle times for machinery

What is the maximum impact speed for this shock absorber?

The maximum impact speed is 3 m/s.

What is the weight of the product?

The product weighs 318 g.

Is it possible to detect position with this product?

No, position detection is not included in its features.
