Seeed Studio W5500 Ethernet Shield
- RS Stock No.:
- 184-5101
- Distrelec Article No.:
- 300-69-884
- Mfr. Part No.:
- 103030021
- Manufacturer:
- Seeed Studio
Subtotal (1 unit)*
MYR165.72
FREE delivery for orders over RM 150.00
In Stock
- 78 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit |
|---|---|
| 1 + | MYR165.72 |
*price indicative
- RS Stock No.:
- 184-5101
- Distrelec Article No.:
- 300-69-884
- Mfr. Part No.:
- 103030021
- Manufacturer:
- Seeed Studio
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Seeed Studio | |
| Product Type | Arduino Compatible Shield | |
| Product Name | W5500 Ethernet Shield | |
| For Use With | Arduino | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Seeed Studio | ||
Product Type Arduino Compatible Shield | ||
Product Name W5500 Ethernet Shield | ||
For Use With Arduino | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- CN

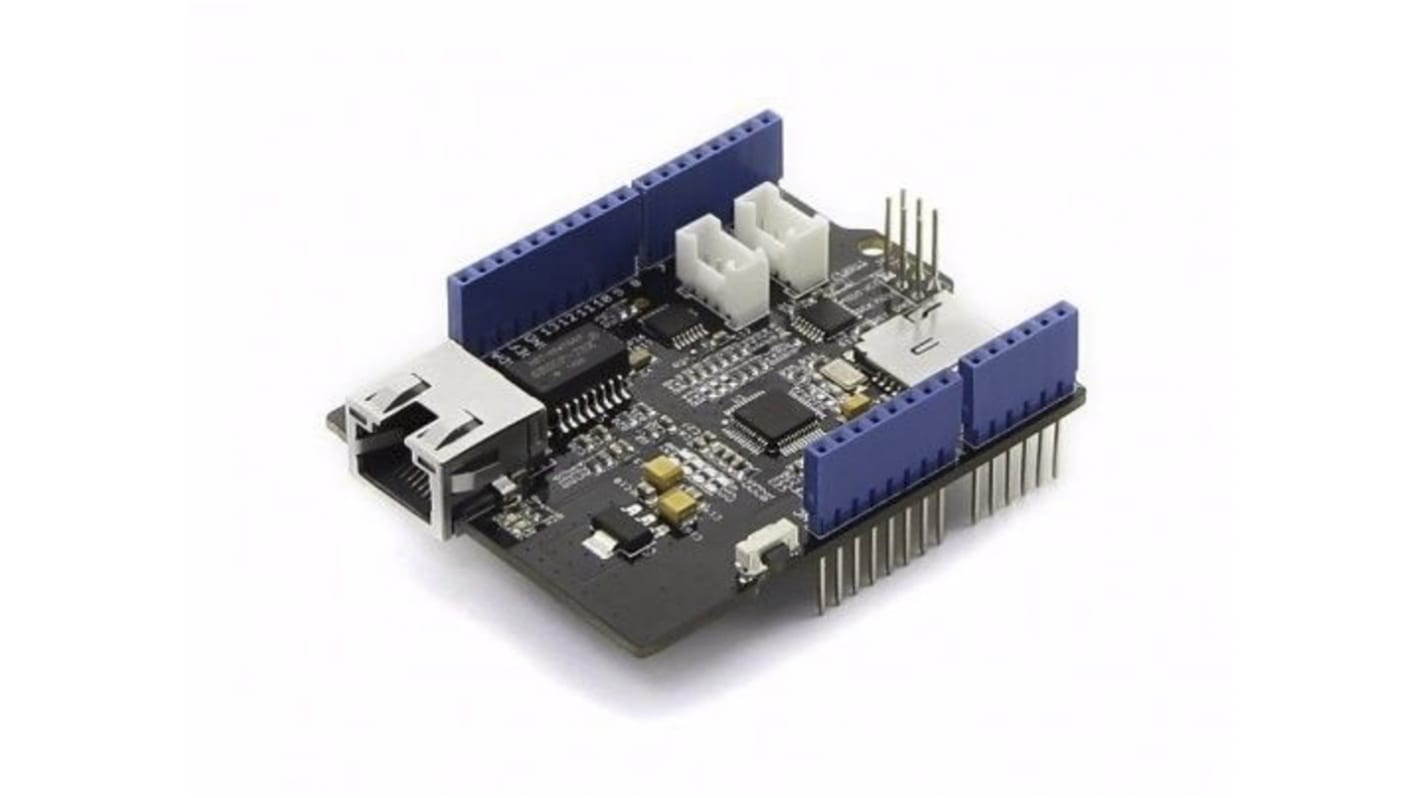

The W5500 Ethernet Shield v1.0 can be used to provide your projects with internet connectivity.W5500 enables users to have the Internet connectivity in their applications just by using the single chip in which TCP/IP stack, 10/100 Ethernet MAC and PHY embedded. The shield also have two Grove connectors and a microSD card socket to support projects which require storing large amounts of data from Grove sensor. The RJ45 port (Where the Ethernet cable is connected to) is low enough to allow you to stack more shields on top of this one if needed.
Supports Hard wired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PoE
Supports 8 independent sockets simultaneously
Supports Power down mode
Supports Wake on LAN over UDP
Supports High Speed Serial Peripheral Interface(SPI MODE 0, 3)
Internal 32Kbytes Memory for TX/RX Buffers
10BaseT/100BaseTX Ethernet PHY embedded
Supports Auto Negotiation (Full and half duplex, 10 and 100 based )
Not supports IP Fragmentation
3.3V operation with 5V I/O signal tolerance
LED outputs (Full/Half duplex, Link, Speed, Active)
Micro-SD card socket
Grove connector for I2C and UART
