    Seeed Studio, Screw Shield

    RS Stock No.:
    184-5100
    Mfr. Part No.:
    103030006
    Manufacturer:
    Seeed Studio
    View all Shields For Arduino
    150 In Global stock for delivery within 4 - 6 working days
    Add to Basket
    units

    Added

    Price Each

    MYR49.68

    unitsPer Unit
    1 - 9MYR49.68
    10 - 24MYR44.46
    25 +MYR43.72
    RS Stock No.:
    184-5100
    Mfr. Part No.:
    103030006
    Manufacturer:
    Seeed Studio
    COO (Country of Origin):
    CN

    Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    CN

    Product Details

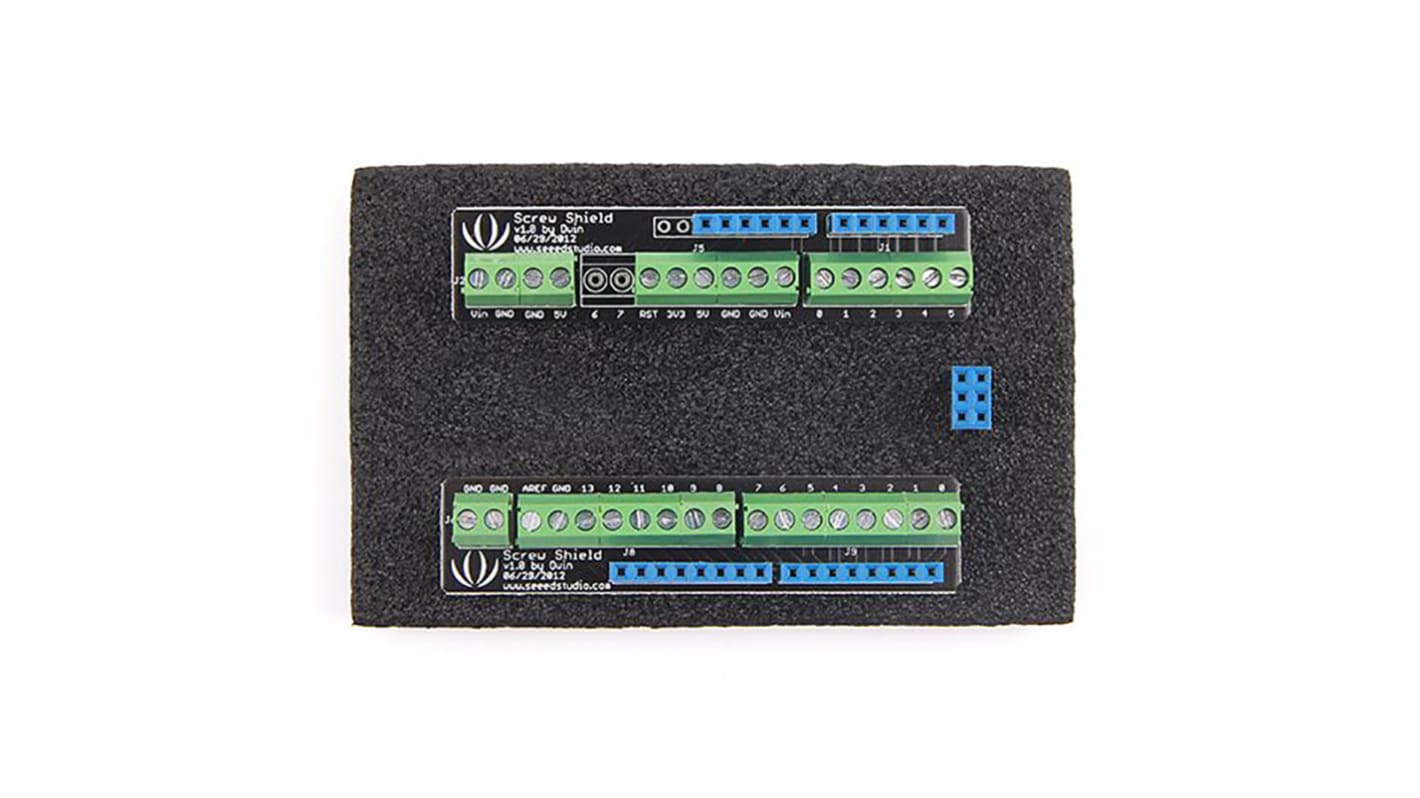

    Screw shield is a wing-like shield that extends both sides of your Arduino or Arduino variants into sturdy and reliable screw terminal blocks. On the digital pins side, it contains 18 terminals: 16 normal terminals and 2 extra GND. As to the analogue pins side, there are 16 terminals (12 normal terminals, 4 extra terminals for Vin, 2*GND and 5V) and 2 breakout through holes for 2 additional ADC pins. Sweetly, a special extension block for SPI interface is included in this product to make it a truly stackable shield for other shields like TFT touch screen to mount on.


    Arduino and Seeeduino compatible
    Extra ADC though holes and SPI extension interface
    Truly stackable



    Specifications

    AttributeValue
    Product NameScrew Shield
    Processor Part Number103030006
    For Use WithArduino, Seeeduino
