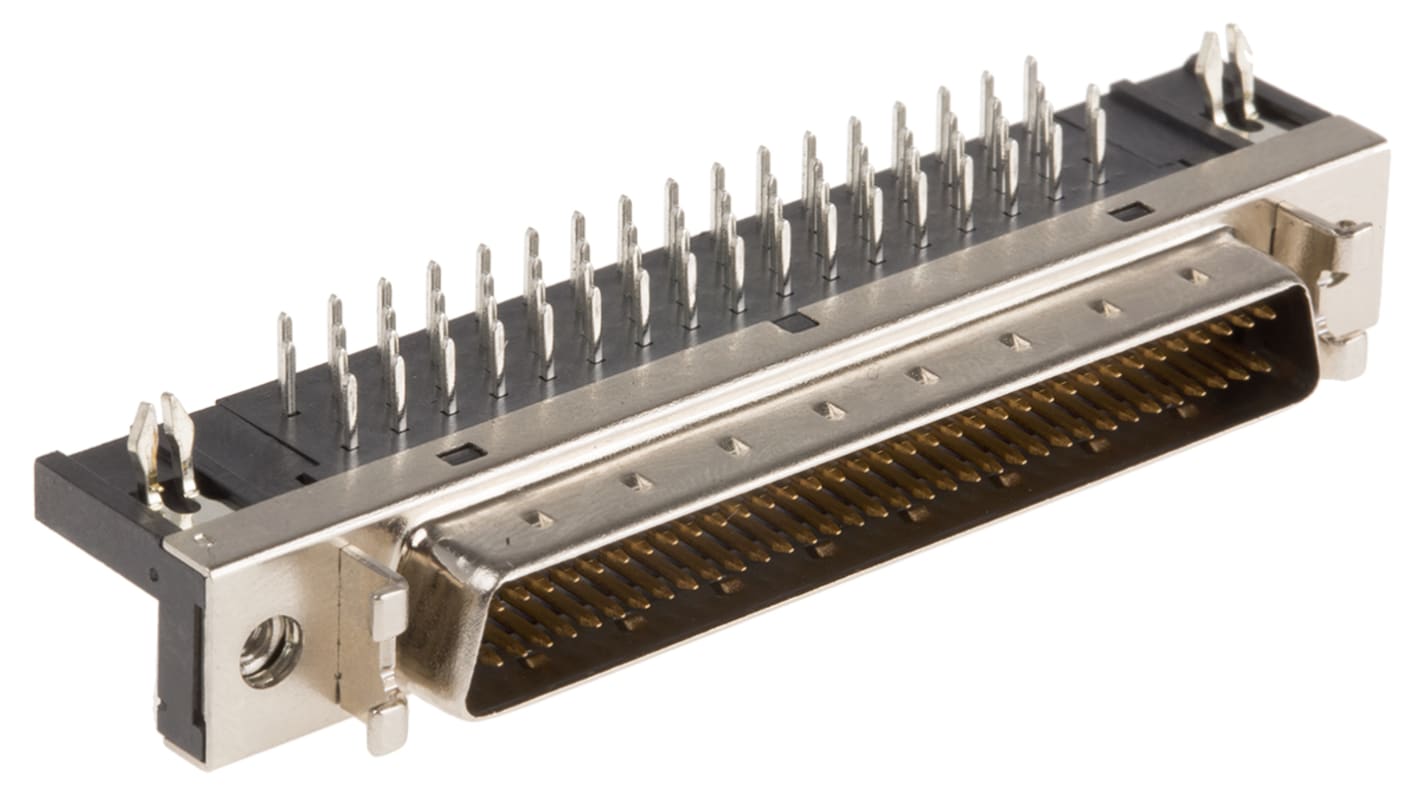

MH Connectors, SCSI Male 68 Pin Right Angle Through Hole SCSI Connector 2.54mm Pitch, Solder
- RS Stock No.:
- 813-3313
- Mfr. Part No.:
- 3700-0121-01
- Manufacturer:
- MH Connectors
646 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR122.17
| Units | Per Unit |
| 1 - 14 | MYR122.17 |
| 15 - 49 | MYR119.73 |
| 50 + | MYR117.36 |
- RS Stock No.:
- 813-3313
- Mfr. Part No.:
- 3700-0121-01
- Manufacturer:
- MH Connectors
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
PCB Mounted I/O Plug
SCSI metal shell PCB Plug available in right angle 68 way version.
Designed to receive sockets with solder bucket termination (e.g. stock no. 175-4893)
Specifications
Attribute | Value |
|---|---|
| Gender | Male |
| Number of Contacts | 68 |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold |
| Housing Material | LCP |
| Pitch | 2.54mm |
| Current Rating | 500mA |
| Voltage Rating | 500 V ac |
| Termination Method | Solder |
| Series | SCSI |
| Length | 63.86mm |
| Width | 16.7mm |
| Maximum Operating Temperature | +85°C |
| Depth | 12.5mm |
| Minimum Operating Temperature | -55°C |
