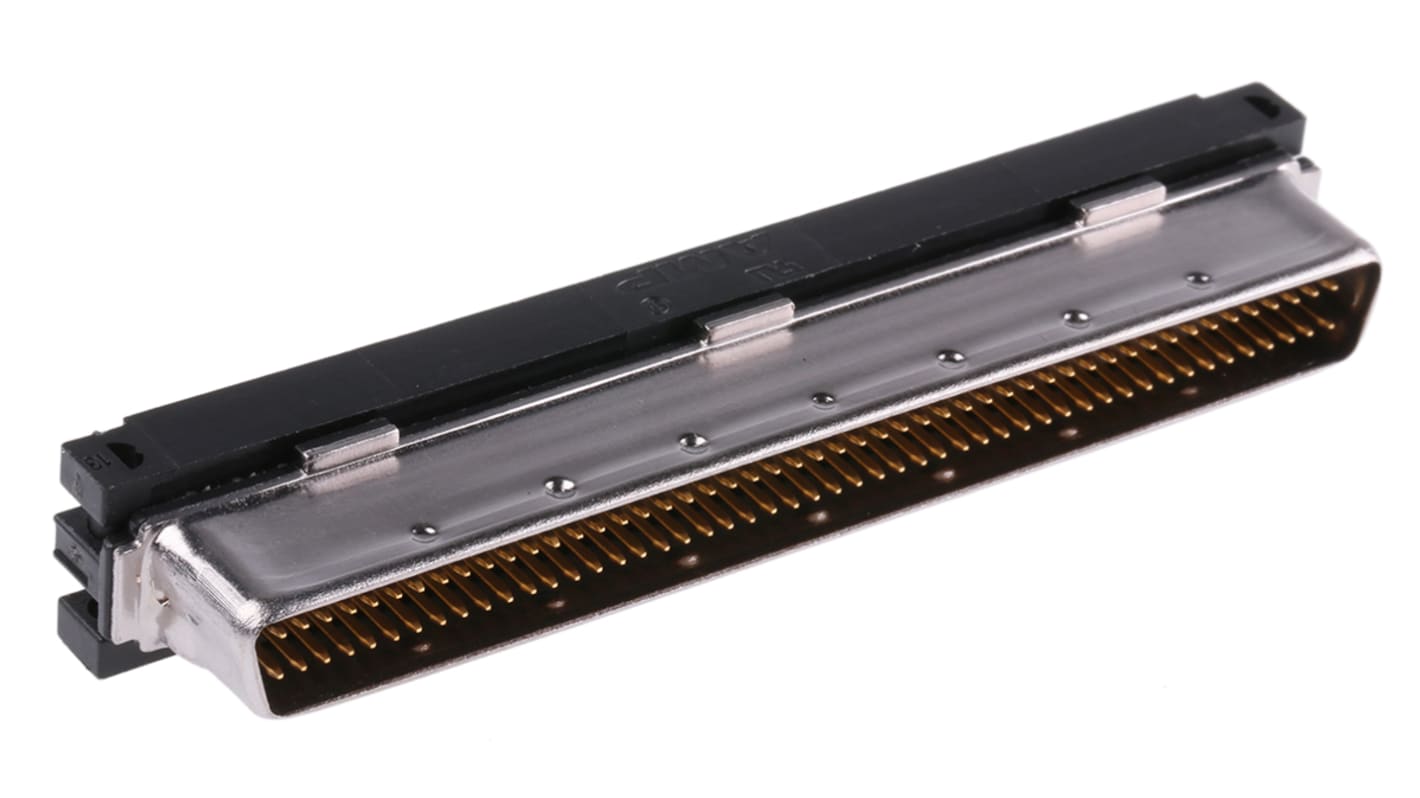

TE Connectivity Male 100 Pin Right Angle Cable Mount SCSI Connector 1.27mm Pitch, IDC

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
Product Details

TE Connectivity AMPLIMITE .050 Series III Shielded D-Sub Cable Plugs

The AMPLIMITE .050 series III shielded D-sub cable plugs with a compact design, high density D type interface and a 1.27 x 2.54 mm centreline. These AMPLIMITE .050 series III d-subminiature connectors have a steel shell with a tin nickel plating which provides excellent EMI/RFI protection. The connectors are preloaded with gold plated IDC pin contacts that provide fast, reliable and economical terminations onto discrete wire or ribbon cable. These AMPLIMITE .050 Series III Shielded D-Sub cable plugs are supplied with standard termination covers. Versions of these d-sub connectors are available with latching blocks which provide quick easy connection and disconnection. Versions are also available with rails which provide extra alignment and prevent the connector moving reducing contact damage. The backshell kits for these connectors must be ordered separately. These connectors are used with round jacketed cable (discrete or laminated) Part numbers X-5749111-X are supplied with both rails and latching blocks
Part numbers X-5749621-X are supplied with latching blocks

Features and Benefits

• Compact design with 1.27 x 2.54 mm centreline
• Excellent EMI/RFI protection
• IDC contacts for fast and reliable wire termination
• Latching blocks for easy connection and disconnection
• Rails for extra mating alignment

Product Application Information

These AMPLIMITE .050 series III D-subminiature connectors are suitable for use in a wide range of I/O applications. These applications include industrial machinery, medical instrumentation, computers and peripherals and file servers.

Standards

SCSI-2, SCSI-3, EIA RS-232, ISO-11569 (26 position cable assembly with spring latches), IPI-2, HIPPI and IEE 802.3 MII standards

TE Connectivity AMPLIMITE D-Subminiature Connectors

Specifications
Attribute Value
Gender Male
Number of Contacts 100
Body Orientation Right Angle
Mounting Type Cable Mount
Contact Material Phosphor Bronze
Contact Plating Gold over Palladium Nickel
Housing Material Thermoplastic
Pitch 1.27mm
Current Rating 1A
Voltage Rating 30 V ac
Termination Method IDC
Length 71.86mm
Maximum Operating Temperature +105°C
Width 14.94mm
Minimum Operating Temperature -55°C
8 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 75.08
units
Per unit
1 - 24
MYR75.08
25 - 74
MYR71.32
75 - 199
MYR67.75
200 - 399
MYR56.64
400 +
MYR53.80
