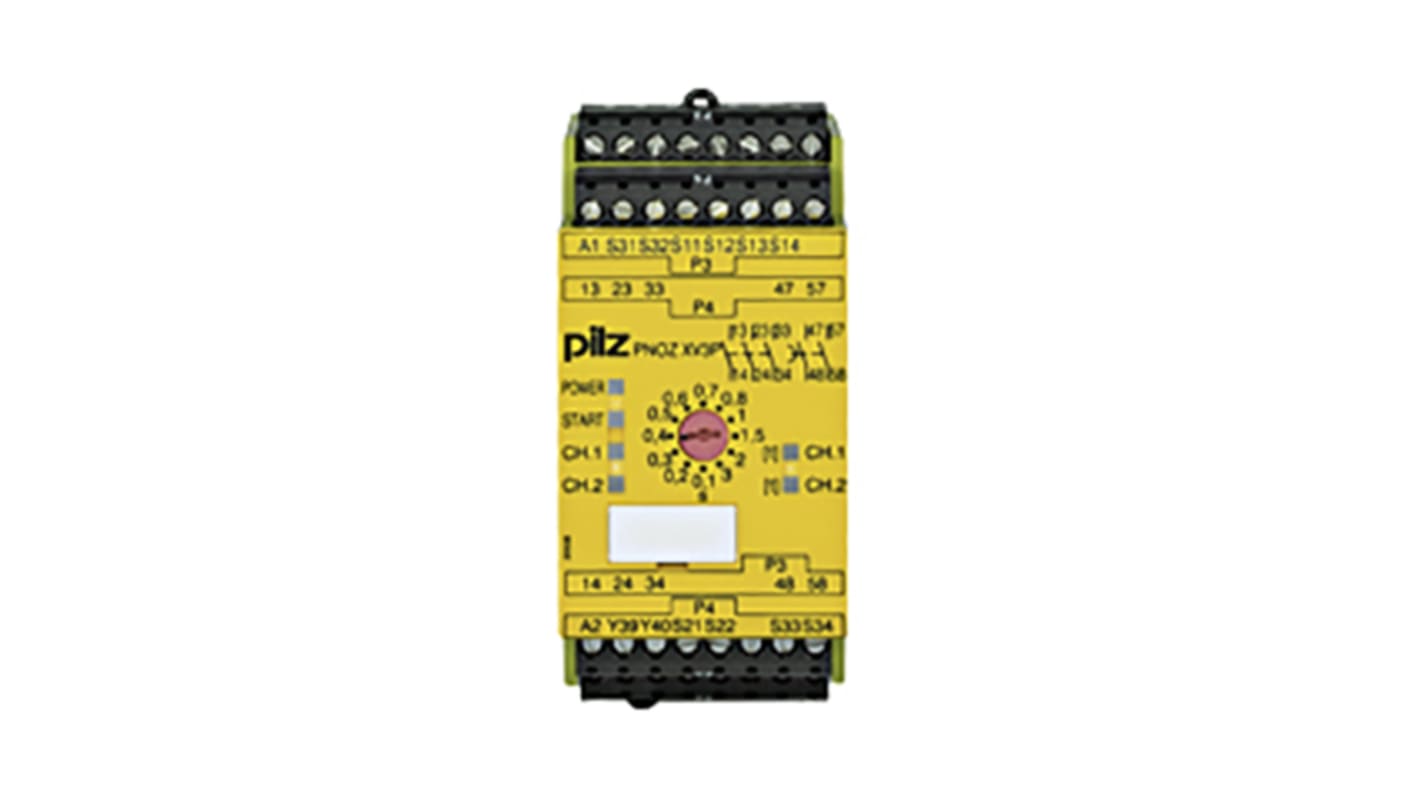

Pilz PNOZ X PNOZ XV3P Emergency Stop Safety Relay, 24V dc, Dual-Channel, 3 Safety Contacts

The PNOZ XV3P 3 safety relay provides a safety-related interruption of a safety circuit. It meets the requirements of EN 60947-5- 1, EN 60204-1 and VDE 0113-1.

Relay outputs, instantaneous 3 safety contacts (n/o), positive-guided
Relay outputs, delay-on re-energised: 2 safety contacts (n/o), positive-guided with adjustable or fixed delay-on de-energisation (dependent on unit)
LED for operating voltage, LED's for switching positions of all output relays and reset circuit
Connection for safety limit switches, E-stops, safety gate switches and for external reset buttons
Output circuit is redundant
Single or two channel operation
Feedback control loop for monitoring external contactors/relays
Prevents machine operation in the event of a power supply failure, component failure, coil defect in a relay, cable break and earth fault
DIN Rail mounted
Screw terminals

The PNOZ XV3P 3 safety relay is used in applications with E-stops and safety gates.

EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1, EN 60947-5-1.

CE, cULus Listed, TÜV, CCC.
