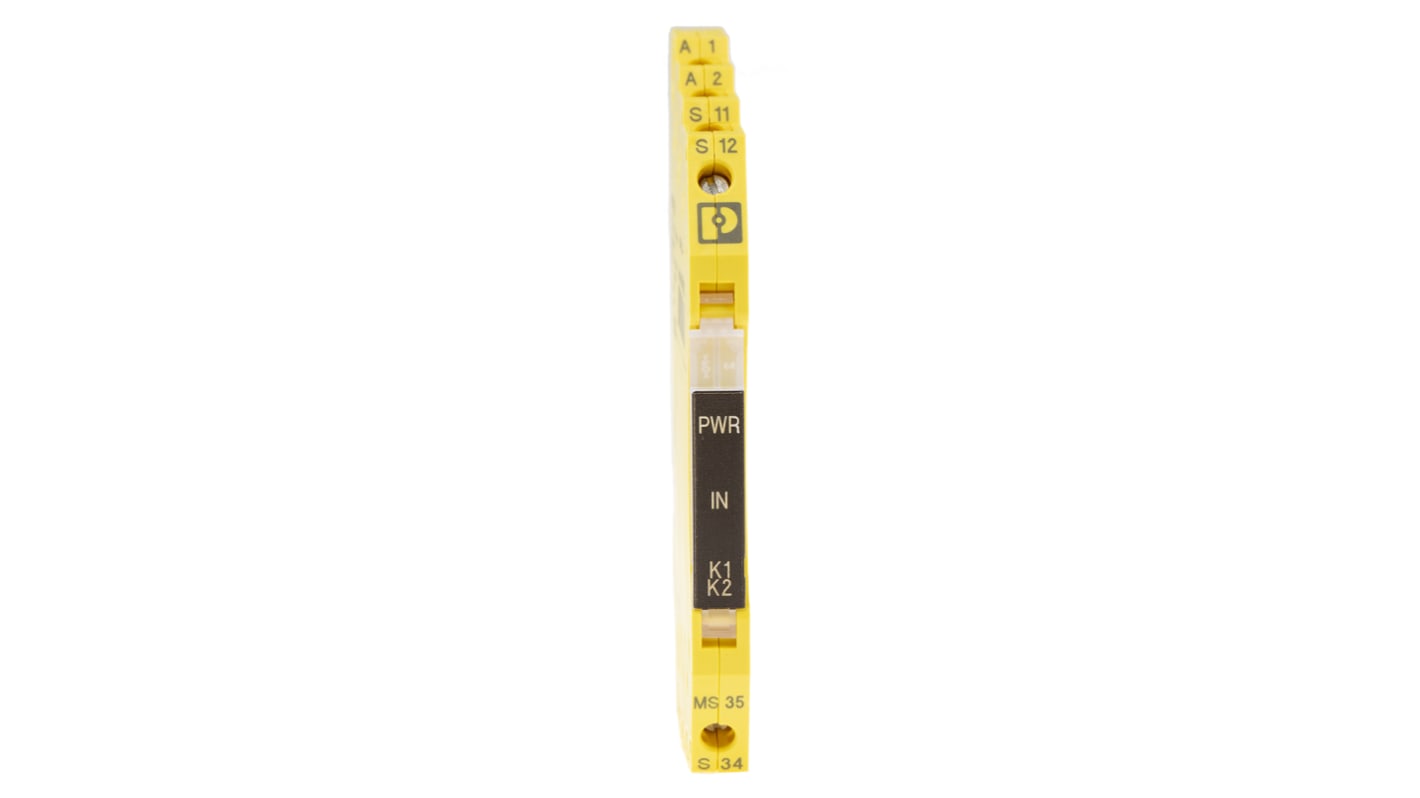

Phoenix Contact 24 V dc Safety Relay Dual Channel With 1 Safety Contact and 1 Auxilary Contact

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Phoenix Contact PSRmini Safety Relay

The PSRmini safety relays from Phoenix Contact are the most narrow safety relay on the market to provide proven safety thanks to force-guided contacts. The Innovative relay technology offers maximum safety and high switching loads up to 6 A.
The PSR-MS with a width of just 6 mm comes with 1 to 2 enabling paths, and the PSR-MC with a width of 12 mm comes with 2 to 3 enabling paths. They are available as a single or dual channel device suitable for monitoring emergency stops, safety doors and light curtains - as well as to control actuators.

Features and Benefits

• Compatible with all important signal transmitters and safety-relevant systems
• Screw and push-in spring connection
• Automatic reset, Automatic/Manual reset, Automatic/Manual/Monitored reset, Manual/Monitored reset options available
• Up to 70% space saved
• Easy and quick diagnosis given means shorter downtime

Standards

EN ISO 13849-1, EN 62061, IEC 61508.

Approvals

CE, UL, cULus, TUV.

PSR-MS25-1NO-1DO-24DC-SC

Phoenix Contact 2904953 highly compact PSRmini safety relay has a width of only 6.8 mm, screw connections and 1 enabling current paths.

Specifications
Attribute Value
Supply Voltage 24 V dc
Number of Channels 2
Auxiliary Contacts 1
Function Emergency Stop, Safety Switch/Interlock
Safety Contacts 1
Range PSRmini
Reset Method Manual
Safety Category 3
Terminal Type Screw
Standards Met CUL, CULus, EAC, Functional Safety, UL
Width 6.8mm
Length 93.1mm
Depth 102.5mm
93 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 500.45
units
Per unit
1 +
MYR500.45
