Wieland Single-Channel Safety Relay, 24V ac/dc, 2 Safety Contacts
- RS Stock No.:
- 780-5095
- Mfr. Part No.:
- R1.188.3740.0
- Manufacturer:
- Wieland
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR1,235.25
| Units | Per Unit |
| 1 + | MYR1,235.25 |
- RS Stock No.:
- 780-5095
- Mfr. Part No.:
- R1.188.3740.0
- Manufacturer:
- Wieland
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

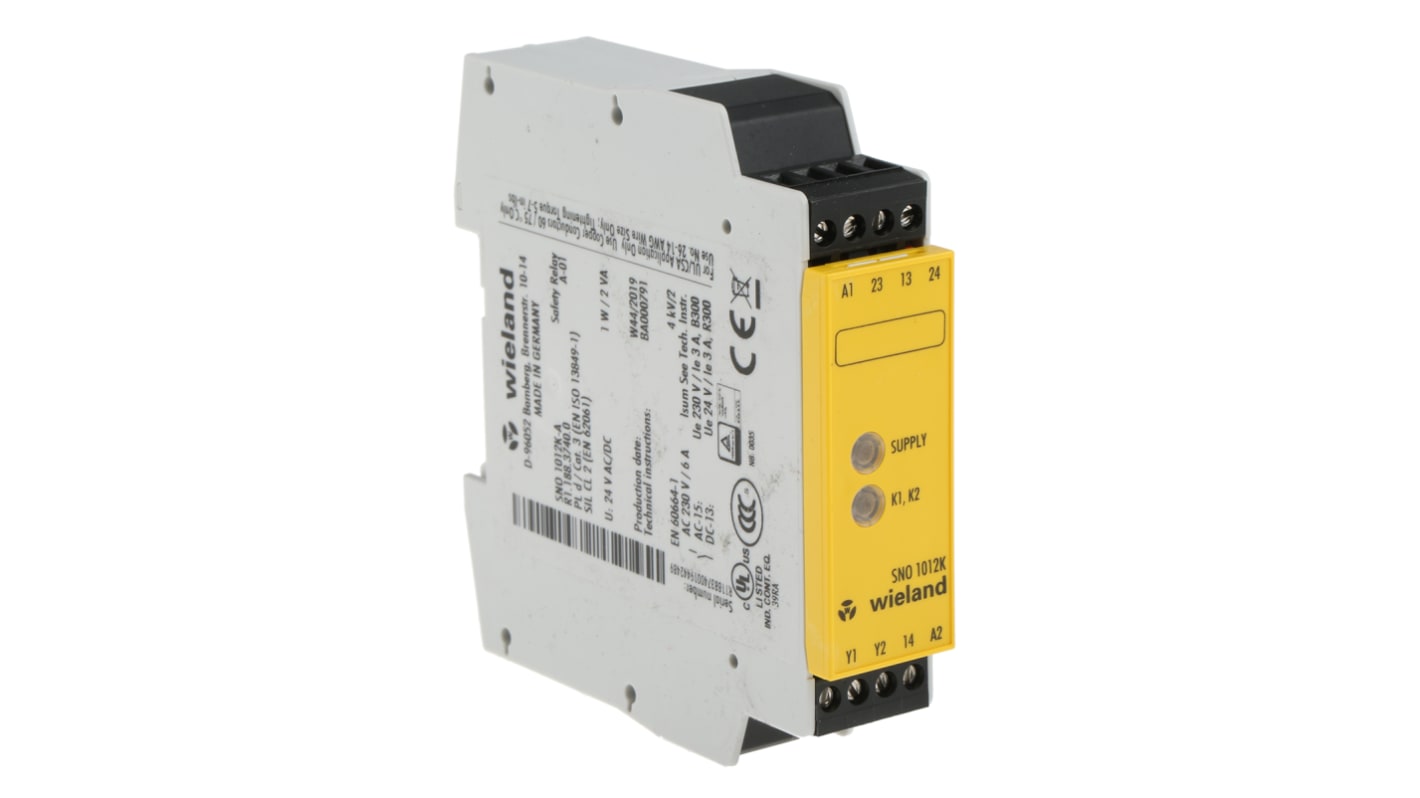

Wieland SNO 1012K Safety Relay
SNO 1012K Safety Relay Function - after the operating voltage (L+/L1) is applied via an unactuated emergency stop button or safety gate contact on A1 and A2, the device can be switched on via a Y1/Y2-connected reset button. When the device is on, the internal relays K1 and K2 are energized and the enabling current paths 13/14 and 23/24 are closed. When the emergency stop button or the safety gate contact is actuated, the current supply of the internal relays is interrupted and the enabling current paths are opened.
Monitoring of E-Stop and Safety Gate applications
Stop Category 0 according to EN 60204-1
Single-channel control
Manual or automatic start
2 enabling current paths
Check of external contactors (EDM)
Compact design
Up to PL d / Category 2 (EN ISO 13849-1)
Up to SILCL 2 (EN 62061)
Stop Category 0 according to EN 60204-1
Single-channel control
Manual or automatic start
2 enabling current paths
Check of external contactors (EDM)
Compact design
Up to PL d / Category 2 (EN ISO 13849-1)
Up to SILCL 2 (EN 62061)
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 24V ac/dc |
| Number of Channels | 1 |
| Safety Contacts | 2 |
| Reset Method | Manual |
| Range | safeRELAY |
| Safety Category ISO 13849-1 | 2 |
| PL ISO 13849-1 | d |
| SIL IEC 61508 | 2 |
| Terminal Type | Screw |
| Width | 22.5mm |
| Series | SNO 1012 |
| Depth | 91.5mm |
| Length | 96.5mm |
| Performance Level | d |
