Pilz 24 V dc Safety Relay Dual Channel With 2 Safety Contacts Compatible With Safety Switch/Interlock

  • RS Stock No. 245-1905
  • Mfr. Part No. 774500
  • Manufacturer Pilz
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

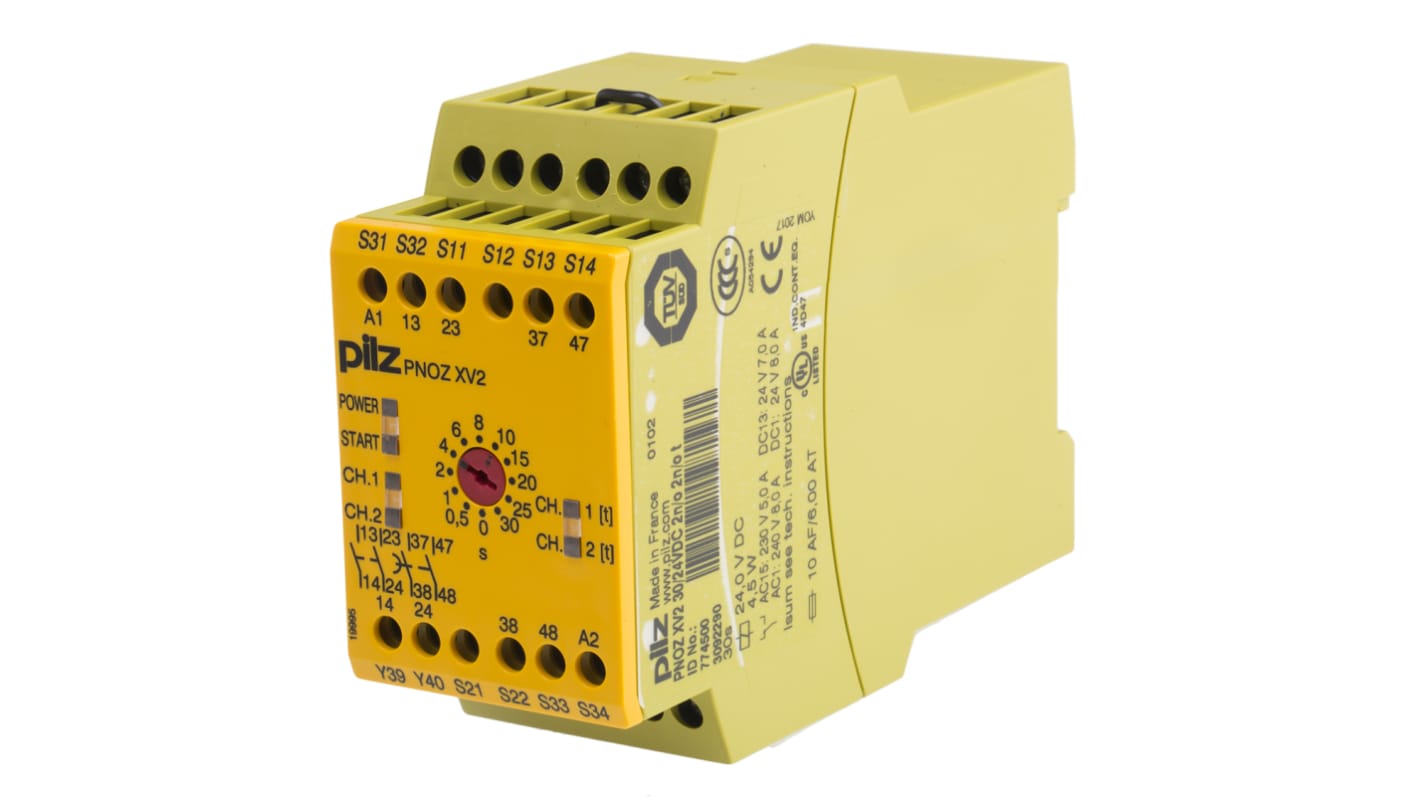

PNOZ XV2 Safety Relay, Adjustable Time Delayed

The PNOZ XV2 range of safety relays from PILZ offers you safety and performance of a top branded safety relay all in one. The PNOZ XV2 offers you different modes of operation such as single or dual channel switches. Suitable for several different applications which are listed below.

Features and benefits:

• DIN rail mounted with screw terminals
• 2 instantaneous delay-on re-energised safety contacts
• LED operating voltage displayed alongside switching psitions and also the reset circuit
• Connections built in for safety limit switches, e-stops and more
• Single or dual channel operation
• Simple and fast wiring saving you time, effort and money long term
• Save costs when exchanging units (there’s no need to rewire therefore you should eliminate potential wiring errors).
• Electromechanical, potential-free

Safety features

• The circuit is redundant with built-in self-monitoring.
• The safety function remains effective in the case of a component failure.
• The correct opening and closing of the safety function relays is tested automatically in each on-off cycle.
• International certification
• Faster commissioning and simple wiring through units with plug-in terminals
• High plant availability and short downtimes thanks to a convenient diagnostic options on the device

Applications

• E-STOP pushbuttons
• Safety gate limit switches
• Reset buttons

Technical safety parameters

• EN 60947-5-1
• EN 60204-1
• VDE 0113-1

Standards

EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1, EN 60947-5-1.

Approvals

CE, cULus Listed, TÜV, KOSHA, CCC.

Specifications
Attribute Value
Supply Voltage 24 V dc
Number of Channels 2
Function Safety Switch/Interlock
Safety Contacts 2
Range PNOZ X
Reset Method Automatic, Manual, Monitored
Terminal Type Screw
Width 45mm
Length 87mm
Depth 121mm
36 Within 4 working day(s) (Global stock)
63 Within 4 working day(s) (Global stock)
Price Each
MYR 2,055.92
units
Per unit
1 +
MYR2,055.92
