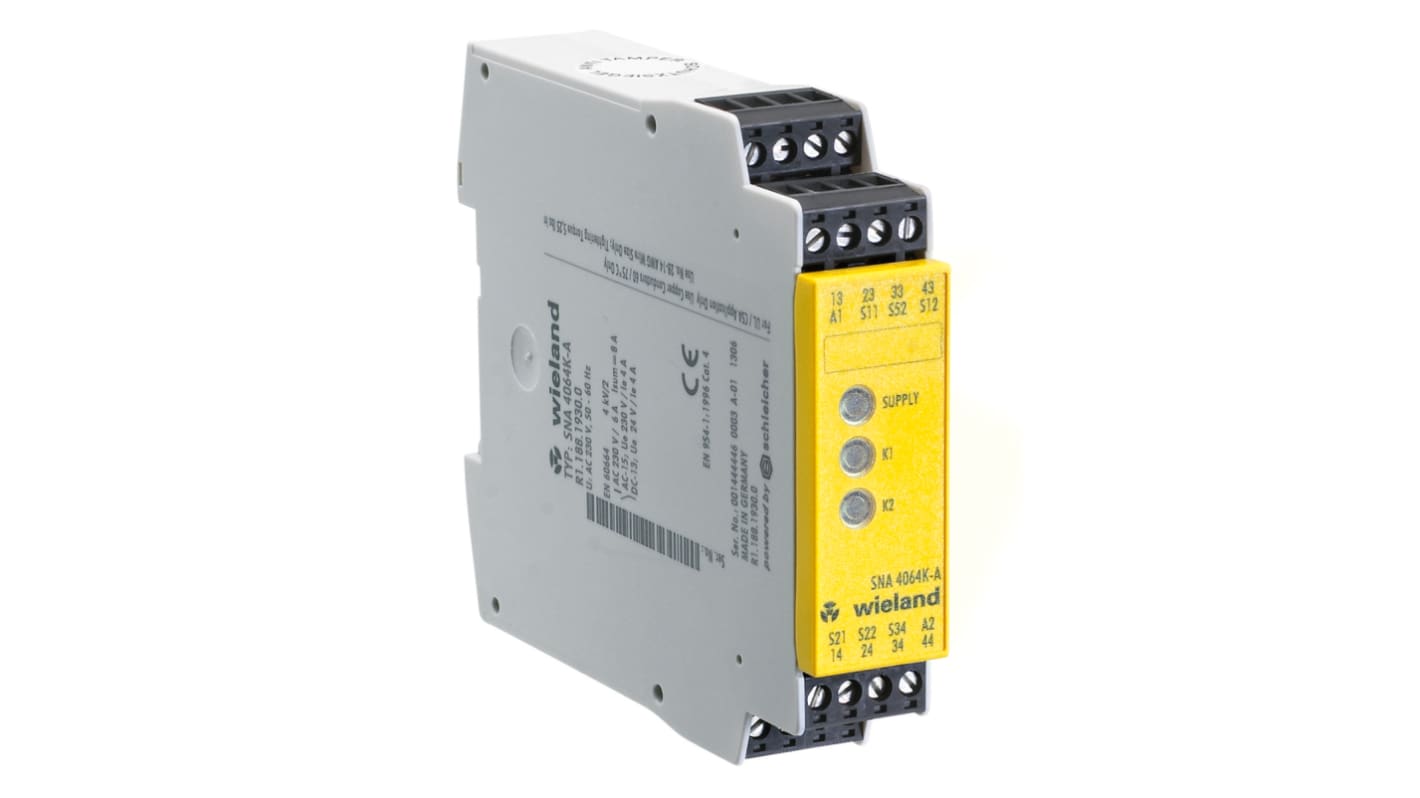

Wieland Dual-Channel Emergency Stop, Light Beam/Curtain, Safety Switch/Interlock Safety Relay, 115 → 120V ac, 3
- RS Stock No.:
- 122-2496
- Mfr. Part No.:
- R1.188.1450.0
- Manufacturer:
- Wieland
Temporarily out of stock - back order for despatch 18/06/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR2,044.52
| Units | Per Unit |
| 1 + | MYR2,044.52 |
- RS Stock No.:
- 122-2496
- Mfr. Part No.:
- R1.188.1450.0
- Manufacturer:
- Wieland
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
SNA 4063K Safety Relay for all Devices including Elevators and Heaters
Stop-Category 0 acc. EN 60204-1
Applications up to Category 4 acc. EN 954-1, to SIL 3 according to EN62061 and PL e according to EN13849-1
Can be used as emergency stop and safety gate monitor
Manual reset with self-monitoring on each ON-OFF cycle
Cross monitoring
One or two-channel wiring
External device monitoring (EDM)
LED indication
Applications up to Category 4 acc. EN 954-1, to SIL 3 according to EN62061 and PL e according to EN13849-1
Can be used as emergency stop and safety gate monitor
Manual reset with self-monitoring on each ON-OFF cycle
Cross monitoring
One or two-channel wiring
External device monitoring (EDM)
LED indication
Approvals
TUV, cULus
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 115 → 120V ac |
| Number of Channels | 2 |
| Safety Contacts | 3 |
| Function | Emergency Stop, Light Beam/Curtain, Safety Switch/Interlock |
| Auxiliary Contacts | 1 |
| Reset Method | Manual, Monitored |
| Range | safeRELAY |
| Safety Category ISO 13849-1 | 4 |
| PL ISO 13849-1 | e |
| Terminal Type | Screw |
| Depth | 96.5mm |
| Series | SNA 4063K |
| Width | 114mm |
| Performance Level | e |
| Length | 22.5mm |
