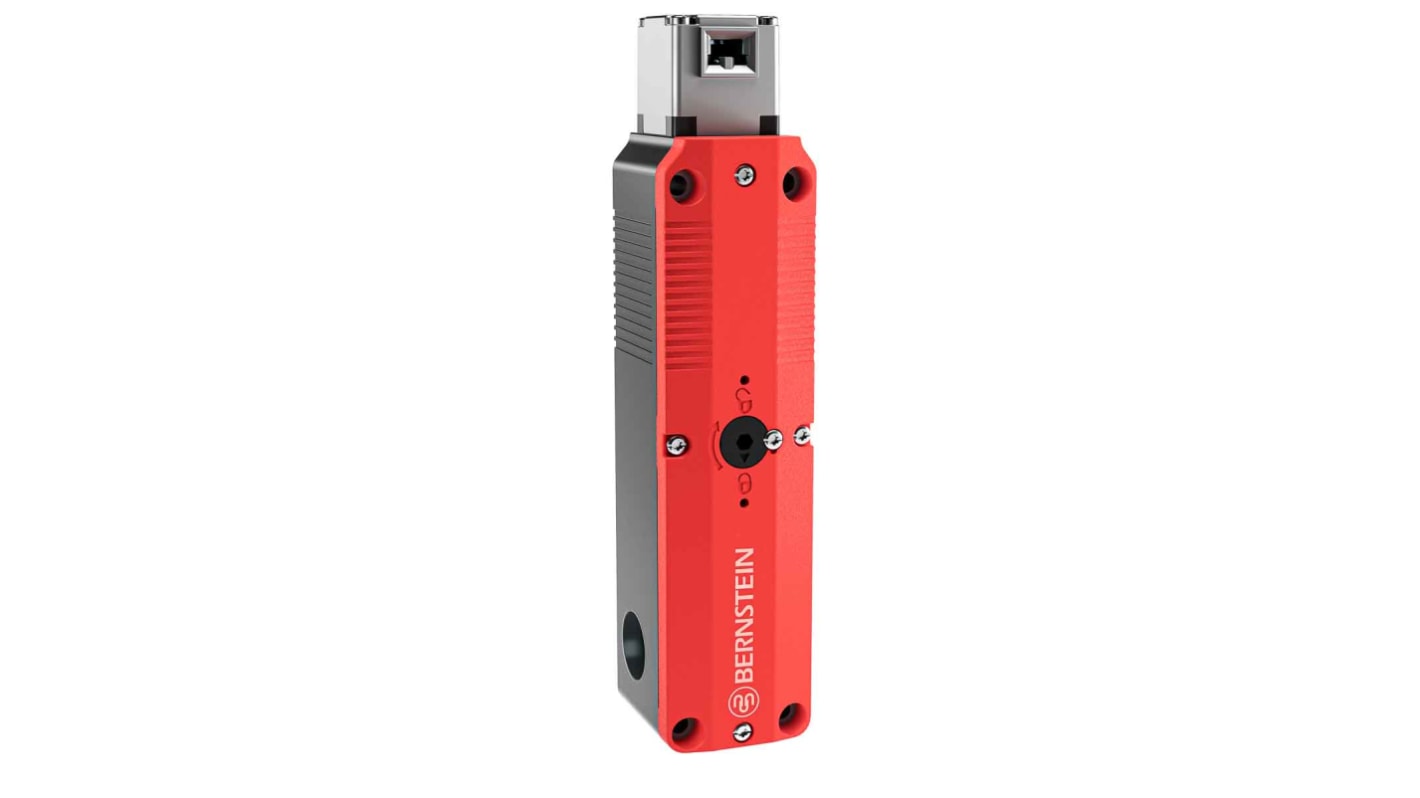

Bernstein AG SLC Safety Interlock Switch, 1NC/1NO + 1NC/1NO Actuator Included, Glass Fibre Reinforced Thermoplastic,
- RS Stock No.:
- 189-5309
- Mfr. Part No.:
- 6018200002
- Manufacturer:
- Bernstein AG
2 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Price Each
MYR1,002.47
| Units | Per Unit |
| 1 + | MYR1,002.47 |
- RS Stock No.:
- 189-5309
- Mfr. Part No.:
- 6018200002
- Manufacturer:
- Bernstein AG
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Lightweight yet robust: Hybrid of metal and plastic
Flexible contact assembly
Integrated manual release
Symmetrical design
Five actuating positions
Rotatable head (4´90°)
Fail-safe guard locking system
Optional emergency exit
Optional emergency release
M12 connector as an option
Enclosure: Thermoplastic, glass fibre reinforced
Cover: Thermoplastic, glass fibre reinforced
Operating device: Metal
Latching force: 1500 N
Ambient temperature: -25 °C to + 55 °C
Switching principle: 4 slow-action-contacts
Contacts
Rated operational voltage Ue: 240 V AC / 24 V DC
Utilization category:
AC-15, Ue / Ie 240 V / 1,5 A
DC-13, Ue / Ie 24 V / 1,5 A, 250 V / 0,11 A
Solenoid
Operating voltage: 24 V AC / DC or 110 V AC or 230 V AC
Safety data B10D: 2 ´106 cycles
Flexible contact assembly
Integrated manual release
Symmetrical design
Five actuating positions
Rotatable head (4´90°)
Fail-safe guard locking system
Optional emergency exit
Optional emergency release
M12 connector as an option
Enclosure: Thermoplastic, glass fibre reinforced
Cover: Thermoplastic, glass fibre reinforced
Operating device: Metal
Latching force: 1500 N
Ambient temperature: -25 °C to + 55 °C
Switching principle: 4 slow-action-contacts
Contacts
Rated operational voltage Ue: 240 V AC / 24 V DC
Utilization category:
AC-15, Ue / Ie 240 V / 1,5 A
DC-13, Ue / Ie 24 V / 1,5 A, 250 V / 0,11 A
Solenoid
Operating voltage: 24 V AC / DC or 110 V AC or 230 V AC
Safety data B10D: 2 ´106 cycles
Specifications
Attribute | Value |
|---|---|
| Normal State Configuration | 1NC/1NO + 1NC/1NO |
| Lock Type | Guard Lock Interlock |
| Actuator Included | Yes |
| Maximum AC Voltage | 24V |
| Maximum DC Voltage | 24V |
| Connection Type | M20 |
| Housing Material | Glass Fibre Reinforced Thermoplastic |
| IP Rating | IP67 |
| Series | SLC |
| Width | 42mm |
| Depth | 44mm |
| Length | 192mm |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +55°C |
| Maximum Current | 5A |
