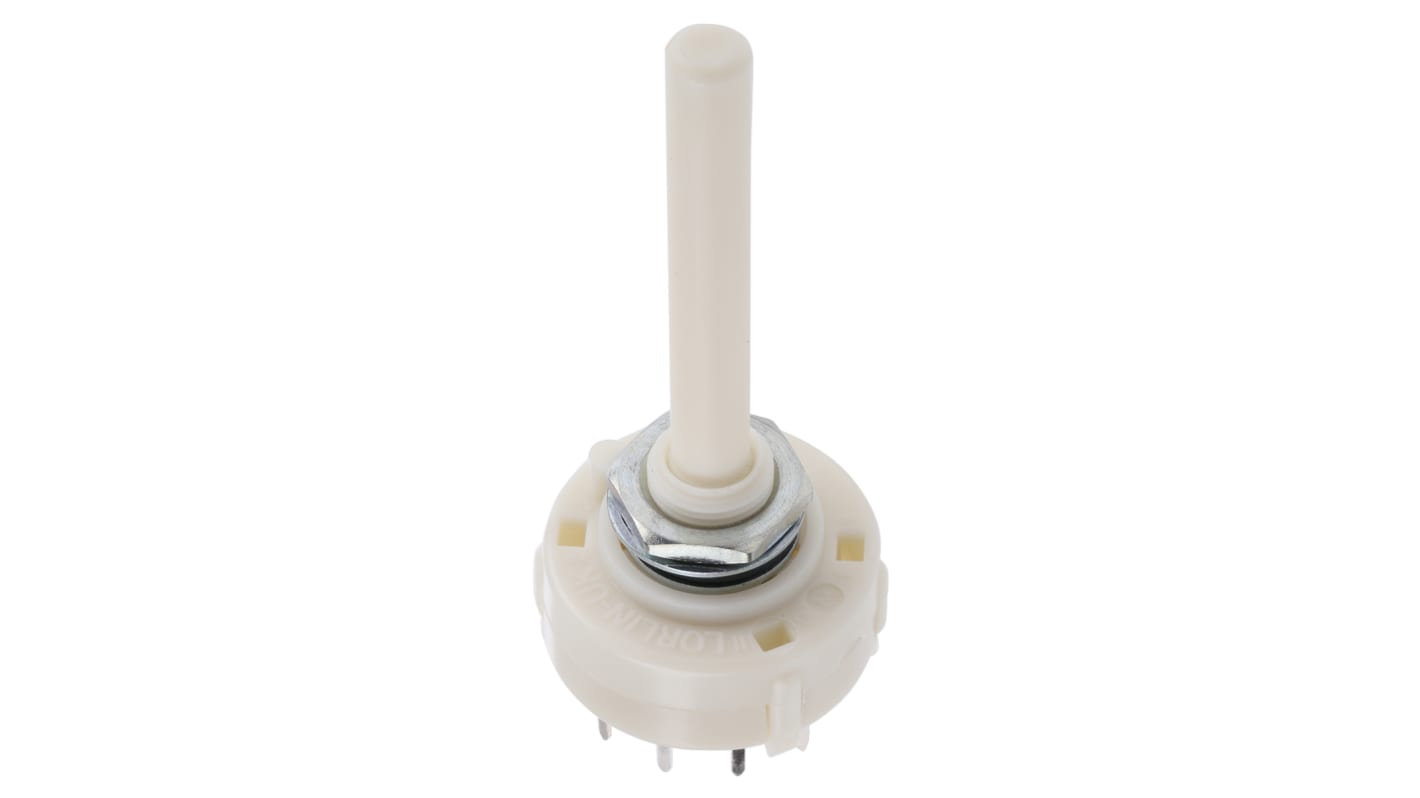

Lorlin, 3 Position 4P3T Rotary Switch, 150 mA @ 250 V ac, Solder
- RS Stock No.:
- 711-8366
- Mfr. Part No.:
- CKF1052
- Manufacturer:
- Lorlin
Stock check temporarily unavailable - call for stock availability
Added
Price Each
MYR30.78
| Units | Per Unit |
| 1 - 9 | MYR30.78 |
| 10 - 49 | MYR30.14 |
| 50 - 99 | MYR29.20 |
| 100 - 249 | MYR28.49 |
| 250 + | MYR27.87 |
- RS Stock No.:
- 711-8366
- Mfr. Part No.:
- CKF1052
- Manufacturer:
- Lorlin
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Sealed Rotary Switch - PCB Mount
Single wafer switch
30° indexing
Non-shorting break before make contacts
Dampened indexing and reduced shaft play
Sealed to IP65
Stop included
30° indexing
Non-shorting break before make contacts
Dampened indexing and reduced shaft play
Sealed to IP65
Stop included
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | 4P3T |
| Contact Current Rating | 150 mA @ 250 V ac |
| Number of Switch Positions | 3 |
| Number of Contacts | 4 |
| Voltage Rating | 250V ac/dc |
| Diameter | 27.5mm |
| Dimensions | 27.5 x 64.1mm |
| Mounting Type | PCB |
| Mounting Hole Size | 1.5 (PCB) mm, 10 (Panel) mm |
| Terminal Type | Solder |
| IP Rating | IP65 |
| Legend Text | 1-12 |
| Maximum Operating Temperature | +85°C |
| Case Material | Nylon 66 |
| Minimum Operating Temperature | -30°C |
| Legend Text Colour | White |
| Height | 64.1mm |
| Contact Material | Silver Plated Brass |
| Mechanical Life | 10000Operations |
