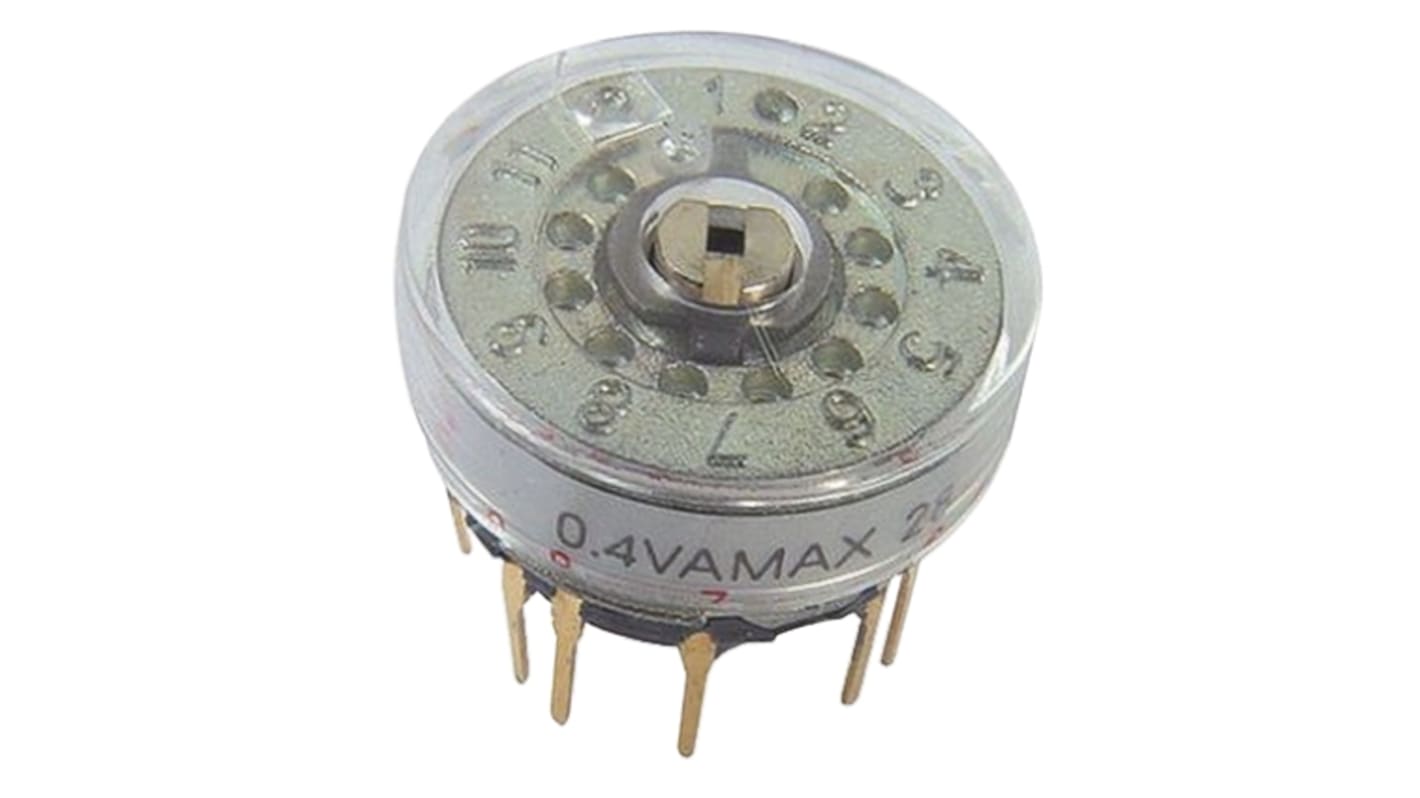

NKK Switches, 2 → 12 Position SP12T Rotary Switch, 0.1 → 100 mA, Through Hole
- RS Stock No.:
- 428-9487
- Mfr. Part No.:
- MR-F112
- Manufacturer:
- NKK Switches
5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR55.59
| Units | Per Unit |
| 1 - 49 | MYR55.59 |
| 50 - 99 | MYR54.43 |
| 100 - 249 | MYR52.79 |
| 250 - 499 | MYR51.49 |
| 500 + | MYR50.37 |
- RS Stock No.:
- 428-9487
- Mfr. Part No.:
- MR-F112
- Manufacturer:
- NKK Switches
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details
PCB Mounting
Footprint/pin spacing: 2.54mm between pins and 5.08mm between rows
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SP12T |
| Contact Current Rating | 0.1 → 100 mA |
| Number of Switch Positions | 2 → 12 |
| Number of Contacts | 1 |
| Diameter | 14mm |
| Dimensions | 14 x 8.2mm |
| Mounting Type | PCB |
| Mounting Hole Size | 0.8mm |
| Terminal Type | Through Hole |
| Minimum Operating Temperature | -10°C |
| Height | 8.2mm |
| Case Material | Zinc Plated Zinc Alloy |
| Contact Material | Gold Plated Phosphor Bronze |
| Mechanical Life | 30000Operations |
| Maximum Operating Temperature | +70°C |
