Units	Per Unit	Per Reel**
20 - 20	MYR17.252	MYR345.04
40 - 180	MYR16.873	MYR337.46
200 +	MYR13.886	MYR277.72

Select all	Attribute	Value
	Brand	RS PRO
	Contact Configuration	SPST
	Series	MTP
	Contact Current Rating	50 mA
	Number of Switch Positions	3
	Number of Contacts	1
	Voltage Rating	12V dc
	Depth	13.5mm
	Width	15.2mm
	Dimensions	15.2 x 13.5 x 5.6mm
	Mounting Type	PCB
	Terminal Type	Solder
	Minimum Operating Temperature	-20°C
	Mechanical Life	10000 / 30000Cycles
	Illuminated	Yes
	Contact Material	Copper Over Silver
	Maximum Operating Temperature	+70°C
	Legend Text Colour	White
	Case Material	Stainless Steel
	Actuator Colour	Black
	Angle of Throw	80°
	Height	5.6mm

	Select all
	Brand RS PRO
	Contact Configuration SPST
	Series MTP
	Contact Current Rating 50 mA
	Number of Switch Positions 3
	Number of Contacts 1
	Voltage Rating 12V dc
	Depth 13.5mm
	Width 15.2mm
	Dimensions 15.2 x 13.5 x 5.6mm
	Mounting Type PCB
	Terminal Type Solder
	Minimum Operating Temperature -20°C
	Mechanical Life 10000 / 30000Cycles
	Illuminated Yes
	Contact Material Copper Over Silver
	Maximum Operating Temperature +70°C
	Legend Text Colour White
	Case Material Stainless Steel
	Actuator Colour Black
	Angle of Throw 80°
	Height 5.6mm

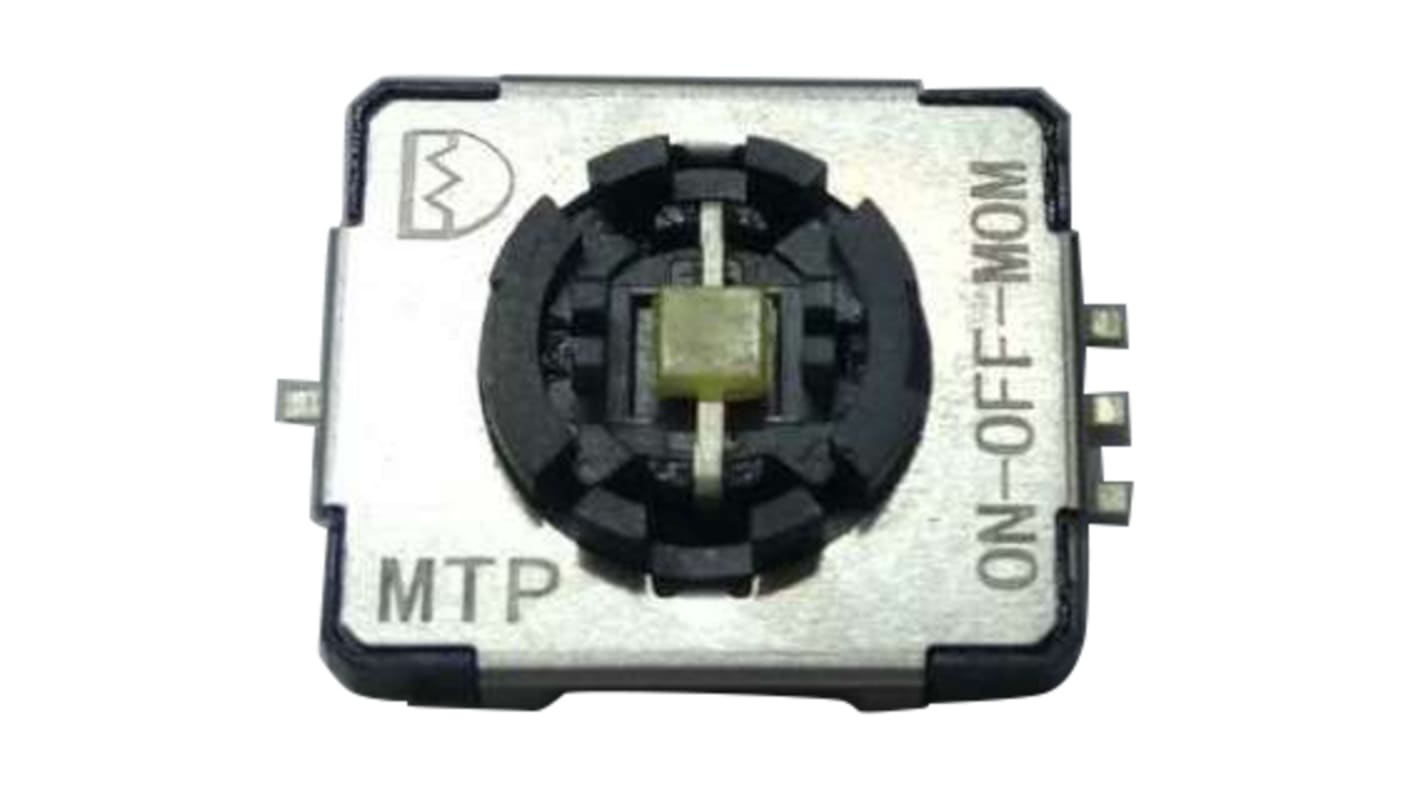

RS PRO, 3 Position SPST Push-Rotary Switch, 50 mA, Solder

FREE delivery for orders over MYR500.00

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
