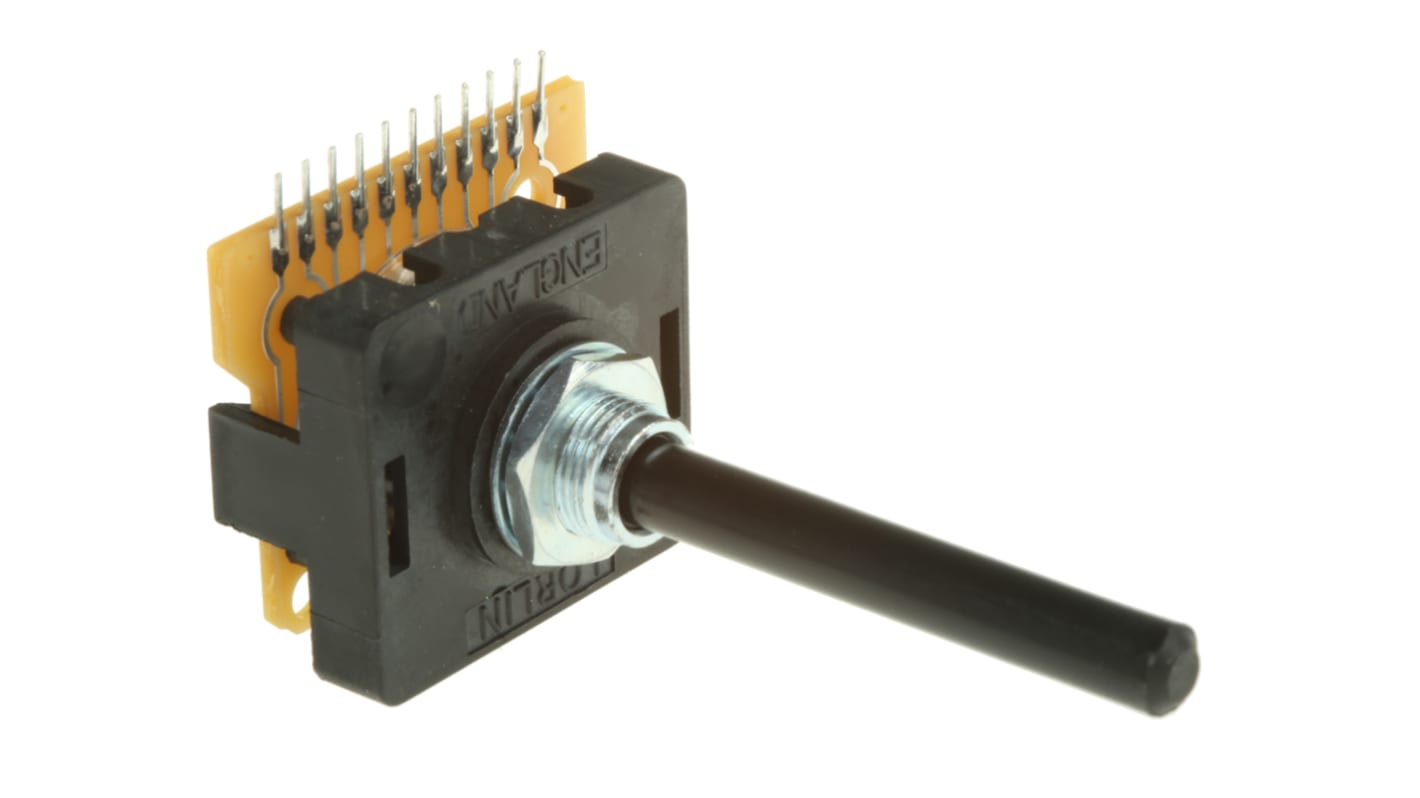

APEM, 10 Position SP10T Rotary Switch, 500 mA @ 250 V ac, Through Hole
- RS Stock No.:
- 161-6634
- Mfr. Part No.:
- PT 6461
- Manufacturer:
- APEM
3 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR128.63
| Units | Per Unit |
| 1 - 49 | MYR128.63 |
| 50 - 99 | MYR125.92 |
| 100 - 249 | MYR122.15 |
| 250 - 499 | MYR119.14 |
| 500 + | MYR116.52 |
- RS Stock No.:
- 161-6634
- Mfr. Part No.:
- PT 6461
- Manufacturer:
- APEM
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
''PT'' rotary switches for printed circuits
Wafer switches.
Perpendicular outputs for printed circuits with a pitch of 2.54 mm.
Non-short circuiting contacts.
These additional wafers can be mounted on any PT series switching assembly detailed previously (30° indexing).
The wafers are separated by a spacer 7.62 mm thick available to order separately.
A shaft of a suitable length for the number of wafers ensures simultaneous switching of the assembly. Once fitted, this shaft is immobilised by a cross knob.
The resultant assembly is secured by a set of M2 washers, nuts and studs.
Models with no flat face.
Perpendicular outputs for printed circuits with a pitch of 2.54 mm.
Non-short circuiting contacts.
These additional wafers can be mounted on any PT series switching assembly detailed previously (30° indexing).
The wafers are separated by a spacer 7.62 mm thick available to order separately.
A shaft of a suitable length for the number of wafers ensures simultaneous switching of the assembly. Once fitted, this shaft is immobilised by a cross knob.
The resultant assembly is secured by a set of M2 washers, nuts and studs.
Models with no flat face.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SP10T |
| Contact Current Rating | 500 mA @ 250 V ac |
| Number of Switch Positions | 10 |
| Number of Contacts | 1 |
| Voltage Rating | 250V ac/dc |
| Depth | 31mm |
| Width | 35.25mm |
| Dimensions | 35.25 x 31 x 61.7mm |
| Mounting Type | PCB |
| Terminal Type | Through Hole |
| Height | 61.7mm |
| Contact Material | Silver Plated Phosphor Bronze |
| Case Material | Nylon 66 |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 10000Operations |
| Minimum Operating Temperature | -30°C |
