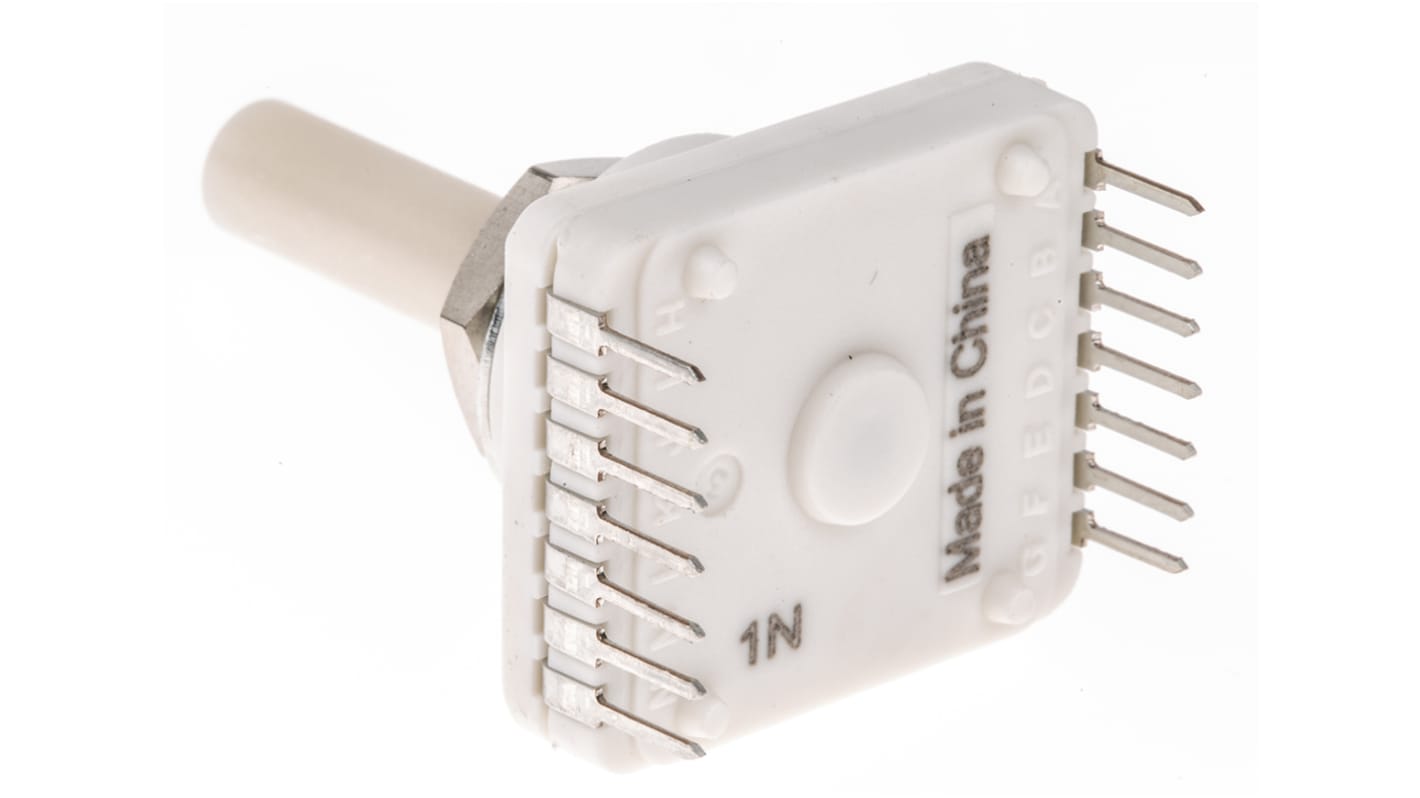

C & K, 12 Position SP12T Rotary Switch, 150 mA @ 60 V dc, Through Hole

RS Stock No.:: 327-901
Mfr. Part No.:: RTAP31S12M25NS
Manufacturer:: C & K

C & K, 12 Position SP12T Rotary Switch, 150 mA @ 60 V dc, Through Hole

Temporarily out of stock - back order for despatch 30/04/2024, delivery within 4 working days from despatch date

Added

Price Each

MYR49.54

Units	Per Unit
1 - 49	MYR49.54
50 - 99	MYR48.48
100 - 249	MYR47.03
250 - 499	MYR45.61
500 +	MYR44.22

RS Stock No.:: 327-901
Mfr. Part No.:: RTAP31S12M25NS
Manufacturer:: C & K

Technical data sheets

RTA Series

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

PCB Mount Rotary Switches

PCB mounting, shaft operated rotary switches with terminal pins on a 0.1in pitch, that may also be panel mounted using the threaded M10 mounting bush provided
Shaft and body moulded in self-extinguishing thermoplastic
Panel cut-out: Ø10.5mm
Shaft: Ø6mm
Silver-plated brass, break-before-make action contacts, with 36° operating angle between positions for the BCD type and 30° operating angle between positions for the other types

Note

Numbers refer to input/output position. Lower case letters refer to pole no. e.g. b4 = 4th position of 2nd pole. Common position denoted by C. No connection denoted by NO. With the BCD switch at least one complementary pair of commons (C1, C2 or C3) must be joined for correct operation. For greatest reliability join all commons together where possible.

Specifications

Attribute	Value
Contact Configuration	SP12T
Contact Current Rating	150 mA @ 60 V dc
Number of Switch Positions	12
Number of Contacts	1
Voltage Rating	60V ac
Depth	22mm
Width	25.8mm
Mounting Type	PCB
Terminal Type	Through Hole
Case Material	Thermoplastic
Minimum Operating Temperature	-20°C
Height	43.6mm
Maximum Operating Temperature	+70°C
Contact Material	Silver Plated
Angle of Throw	30°
