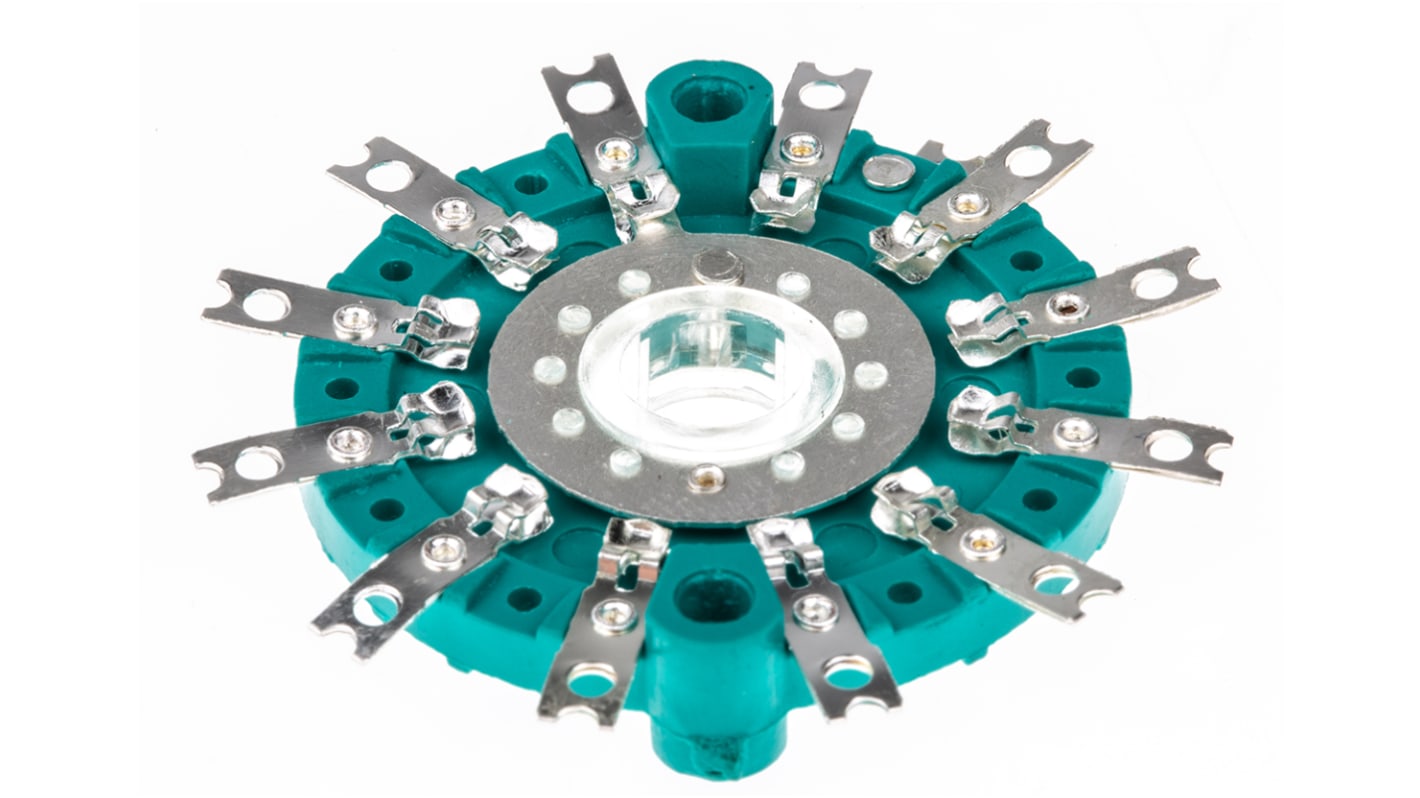

NSF, 12 Position SP12T Rotary Switch, 150 mA @ 250 V ac, Solder

  • RS Stock No. 327-765
  • Mfr. Part No. 454479MK
  • Manufacturer NSF
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Standard Shaft Assembly & Wafers

Standard Shaft Assembly

Double-spring detent mechanisms in standard size
Life expectancy >100000 detent operations
30° indexing and adjustable end stops
Takes up to 10 standard wafers (the capacity is reduced if spacers and/or screens are used)
6mm diameter shaft and M10 x 0.75 mounting bushes
Overall length 190mm, front shaft length 40mm
Optional accessories are available for to suit individual requirements

Wafers

327-765 BBM
327-771 BBM
327-787 BBM
327-793 BBM
327-916 BBM
327-822 MBB
327-838 MBB
327-844 MBB

Glass-fibre loaded diallyl phthalate stators, polycarbonate rotors and silver-plated contacts
Available in break before make (bbm), and make before break (mbb) versions
40mm diameter

Note

For the 6 mm mounting shaft assembly see stock number 327-894

Specifications
Attribute Value
Contact Configuration SP12T
Contact Current Rating 150 mA @ 250 V ac
Number of Switch Positions 12
Number of Contacts 1
Voltage Rating 300V ac/dc
Diameter 32mm
Mounting Type Panel Mount
Terminal Type Solder
Contact Material Silver Plated Brass
Contact Type Non-Shorting
Mechanical Life 100000Operations
480 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 31.79
units
Per unit
1 - 49
MYR31.79
50 - 99
MYR27.92
100 - 249
MYR24.05
250 - 499
MYR20.12
500 +
MYR16.30
