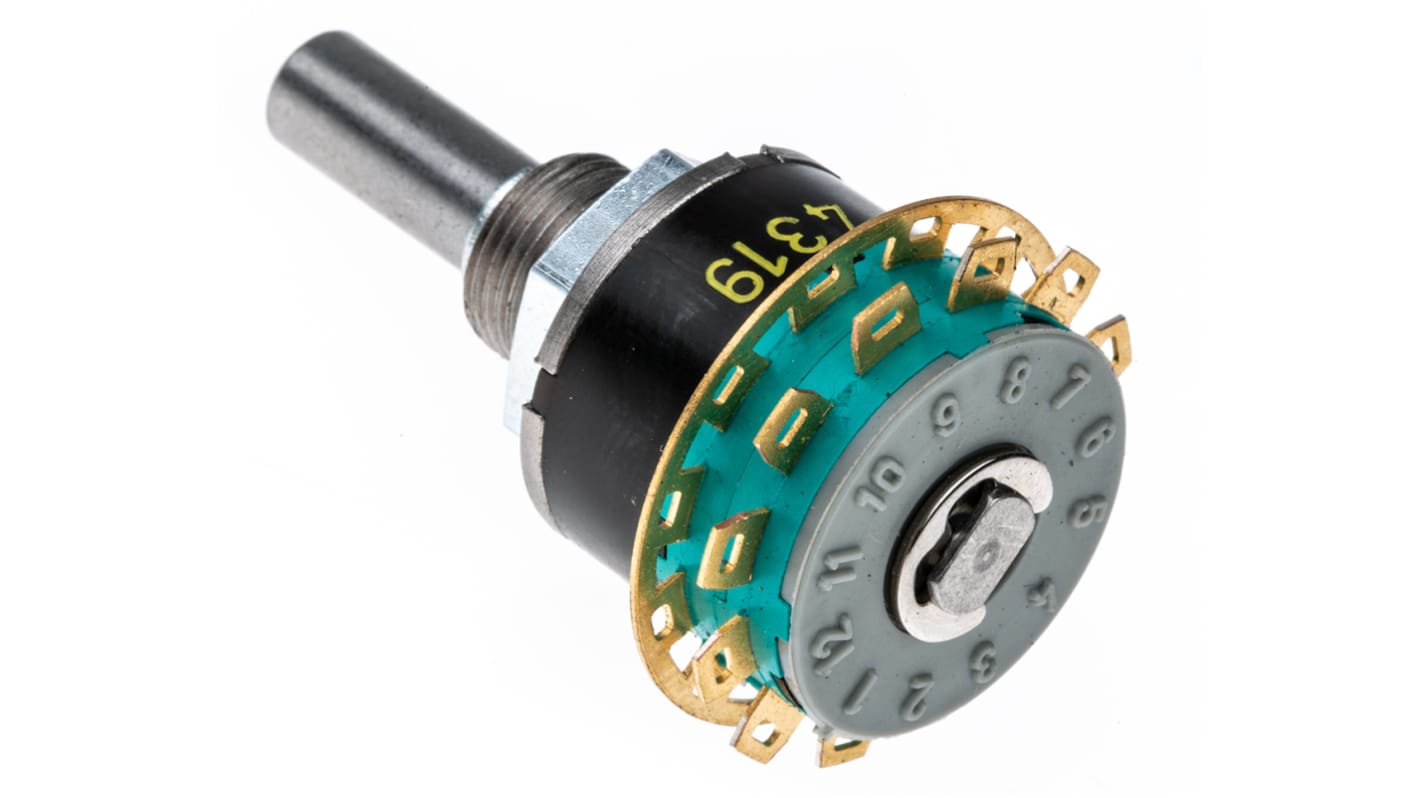

NSF GX non short, 12 Position SP12T Rotary Switch, 250 mA @ 60 V, Solder

RS Stock No.:: 321-363
Mfr. Part No.:: 500399-000-000-000
Manufacturer:: NSF

NSF GX non short, 12 Position SP12T Rotary Switch, 250 mA @ 60 V, Solder

287 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Price Each

MYR419.03

Units	Per Unit
1 - 49	MYR419.03
50 - 99	MYR410.23
100 - 249	MYR397.93
250 - 499	MYR388.15
500 +	MYR379.66

RS Stock No.:: 321-363
Mfr. Part No.:: 500399-000-000-000
Manufacturer:: NSF

Datasheet

Attribute	Value
Series	GX non short
Contact Configuration	SP12T
Contact Current Rating	250 mA @ 60 V
Number of Switch Positions	12
Number of Contacts	1
Voltage Rating	125V ac
Diameter	25.5mm
Dimensions	25.5 x 44mm
Mounting Type	Panel Mount
Mounting Hole Size	8.5 x 10 mm
Terminal Type	Solder
Minimum Operating Temperature	-40°C
Mechanical Life	25000Operations
Height	44mm
Contact Material	Gold
Case Material	Diallylphthalate
Maximum Operating Temperature	+85°C

NSF GX non short, 12 Position SP12T Rotary Switch, 250 mA @ 60 V, Solder

Enclosed Wafer Switch
