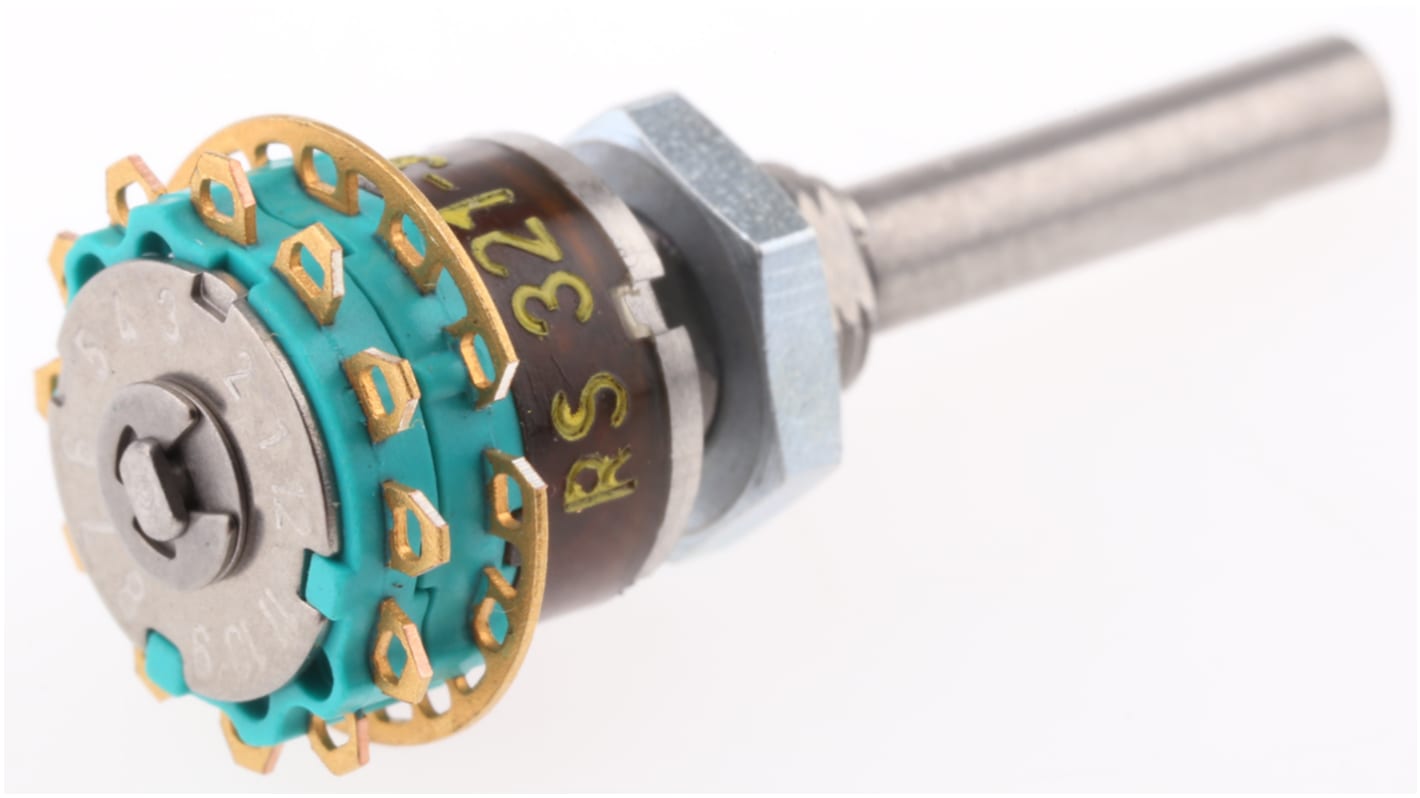

NSF MY non short, 6 Position DP6T Rotary Switch, 1.5 A, Solder
- RS Stock No.:
- 321-329
- Mfr. Part No.:
- 500395-000-000-000
- Manufacturer:
- NSF
134 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR283.36
| Units | Per Unit |
| 1 - 49 | MYR283.36 |
| 50 - 99 | MYR274.86 |
| 100 - 249 | MYR266.36 |
| 250 - 499 | MYR260.69 |
| 500 + | MYR255.01 |
- RS Stock No.:
- 321-329
- Mfr. Part No.:
- 500395-000-000-000
- Manufacturer:
- NSF
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Enclosed Wafer Switch
A rotary wafer switch, the wafers being enclosed within a polymeric housing
The contact material is gold and the switch mechanism has 30° indexing
The contact material is gold and the switch mechanism has 30° indexing
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | DP6T |
| Series | MY non short |
| Contact Current Rating | 1.5 A |
| Number of Switch Positions | 6 |
| Number of Contacts | 2 |
| Voltage Rating | 115V ac |
| Diameter | 12.2mm |
| Dimensions | 12.2 x 37mm |
| Mounting Type | Panel Mount |
| Mounting Hole Size | 5.05 x 4.55 mm |
| Terminal Type | Solder |
| Minimum Operating Temperature | -40°C |
| Height | 37mm |
| Contact Material | Gold |
| Case Material | Diallylphthalate |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 25000Operations |
