Lorlin, 4 Position 3PST Rotary Switch, 150 mA@ 250 V ac, Solder Tab
- RS Stock No.:
- 320-736
- Mfr. Part No.:
- CK1041
- Manufacturer:
- Lorlin
21 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
160 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR14.28
| Units | Per Unit |
| 1 + | MYR14.28 |
- RS Stock No.:
- 320-736
- Mfr. Part No.:
- CK1041
- Manufacturer:
- Lorlin
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

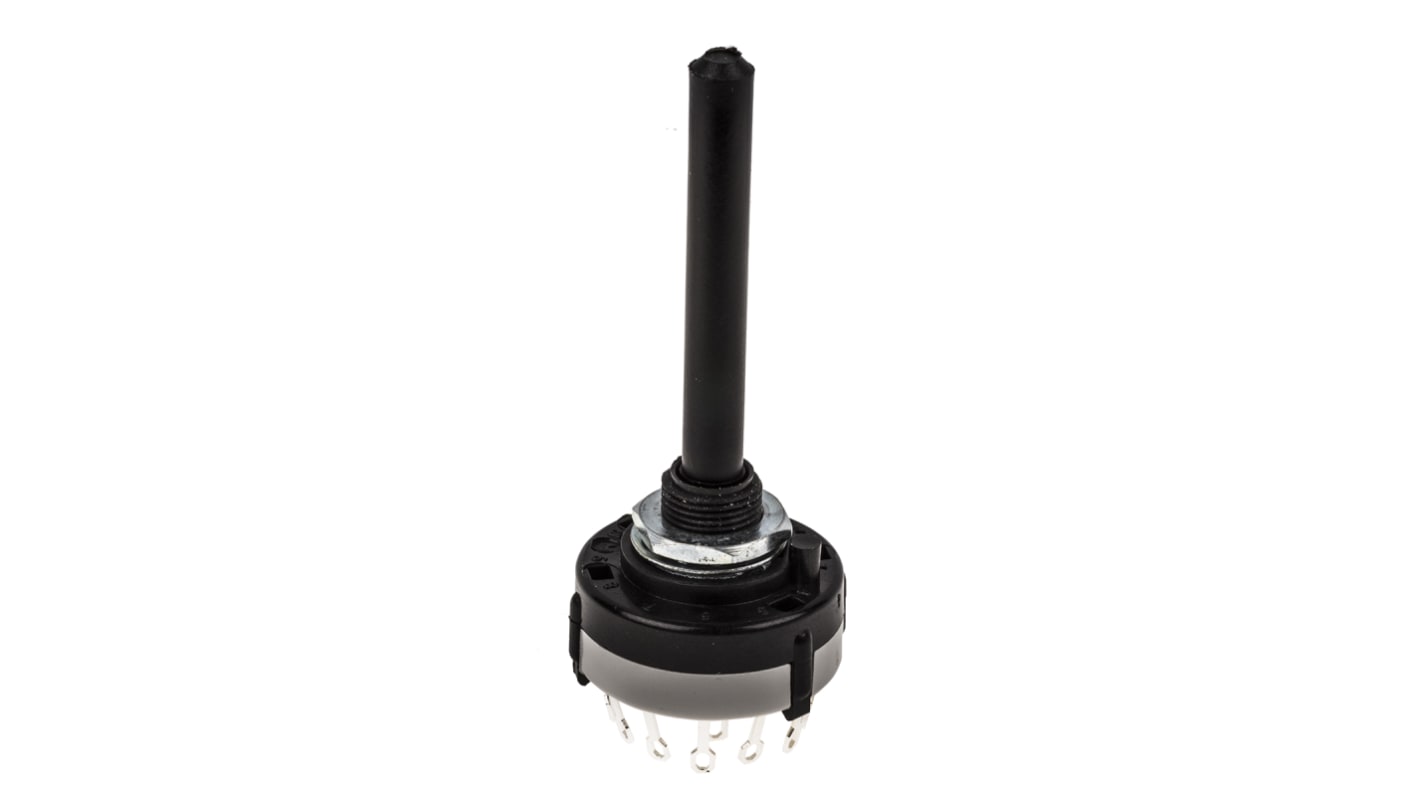

Midget Wafer Switch 6mm Spindle - CK Series
A selection of Lorlin CK rotary switches with various switch configurations.
Contacts rated 150mA @ 250Vac/dc
Proof voltage 1500Vac
UL-VO rated 27.5mm diameter body
30º indexing
Shorting MBB (make before break) or non-shorting BBM (break before make) contacts (see datasheet for reference)
Adjustable stop and continuous rotation options
Dimensions: 50mm long, 6mm diameter spindle with no flat for easy mounting of collet knobs. The bush is 8mm long with a M10x0.75mm thread
Proof voltage 1500Vac
UL-VO rated 27.5mm diameter body
30º indexing
Shorting MBB (make before break) or non-shorting BBM (break before make) contacts (see datasheet for reference)
Adjustable stop and continuous rotation options
Dimensions: 50mm long, 6mm diameter spindle with no flat for easy mounting of collet knobs. The bush is 8mm long with a M10x0.75mm thread
Note
739-2930 features continuous rotation without indexing stops
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | 3P |
| Contact Current Rating | 150 mA@ 250 V ac |
| Number of Switch Positions | 4 |
| Number of Contacts | 3 |
| Voltage Rating | 250 V dc, 250V ac |
| Depth | 27.5mm |
| Width | 27.5mm |
| Mounting Type | Panel Mount |
| Terminal Type | Solder Tab |
| Contact Material | Silver Plated Brass |
| Height | 71.1mm |
| Minimum Operating Temperature | -30°C |
| Maximum Operating Temperature | +85°C |
