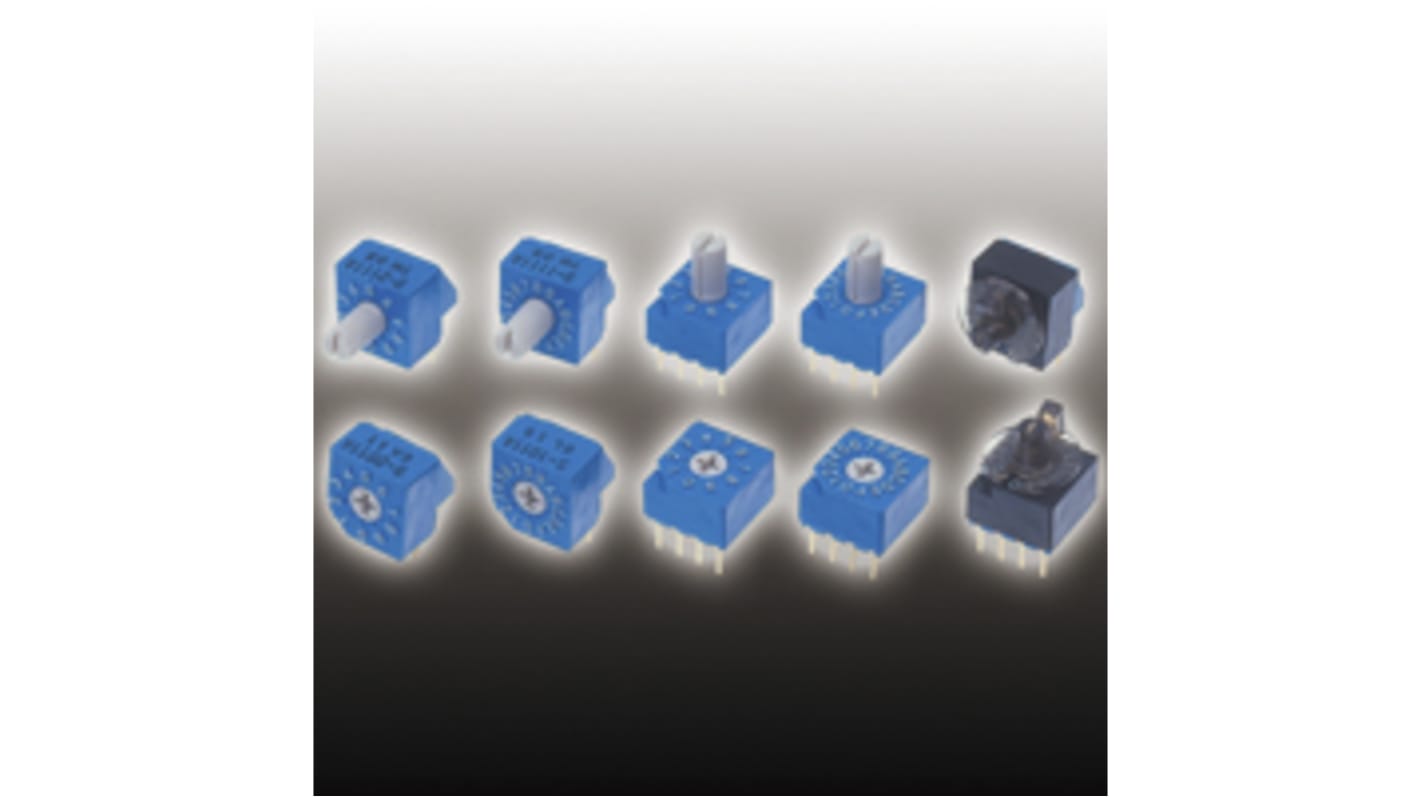

Nidec Components Rotary Coded DIP Switch
- RS Stock No.:
- 179-6354
- Mfr. Part No.:
- S-1110A
- Manufacturer:
- Nidec Components
Bulk discount available
Subtotal (1 bag of 50 units)*
MYR561.95
FREE delivery for orders over RM 500.00
Temporarily out of stock
- Shipping from 30 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per Unit | Per Bag* |
|---|---|---|
| 50 - 50 | MYR11.239 | MYR561.95 |
| 100 - 150 | MYR10.992 | MYR549.60 |
| 200 + | MYR10.755 | MYR537.75 |
*price indicative
- RS Stock No.:
- 179-6354
- Mfr. Part No.:
- S-1110A
- Manufacturer:
- Nidec Components
Specifications
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nidec Components | |
| Mounting Type | Through Hole | |
| Output Coding | BCD, BCH | |
| Terminal Type | Solder | |
| Number of Switch Positions | 16 | |
| Contact Current Rating | 100 mA | |
| Voltage Rating | 5 V dc, 50V dc | |
| Series | S1000 | |
| Height | 13.3mm | |
| Width | 10mm | |
| Depth | 10mm | |
| Select all | ||
|---|---|---|
Brand Nidec Components | ||
Mounting Type Through Hole | ||
Output Coding BCD, BCH | ||
Terminal Type Solder | ||
Number of Switch Positions 16 | ||
Contact Current Rating 100 mA | ||
Voltage Rating 5 V dc, 50V dc | ||
Series S1000 | ||
Height 13.3mm | ||
Width 10mm | ||
Depth 10mm | ||
- COO (Country of Origin):
- CN
Protection against dust and whole cleaning after soldering is possible
Pin compatible with conventional DIP switches
Translucent knob with flange type (S-1200A/2200A series)
Distinguished visibility with translucent flange
Settable with fingers or screwdriver
Pin compatible with conventional DIP switches
Translucent knob with flange type (S-1200A/2200A series)
Distinguished visibility with translucent flange
Settable with fingers or screwdriver
