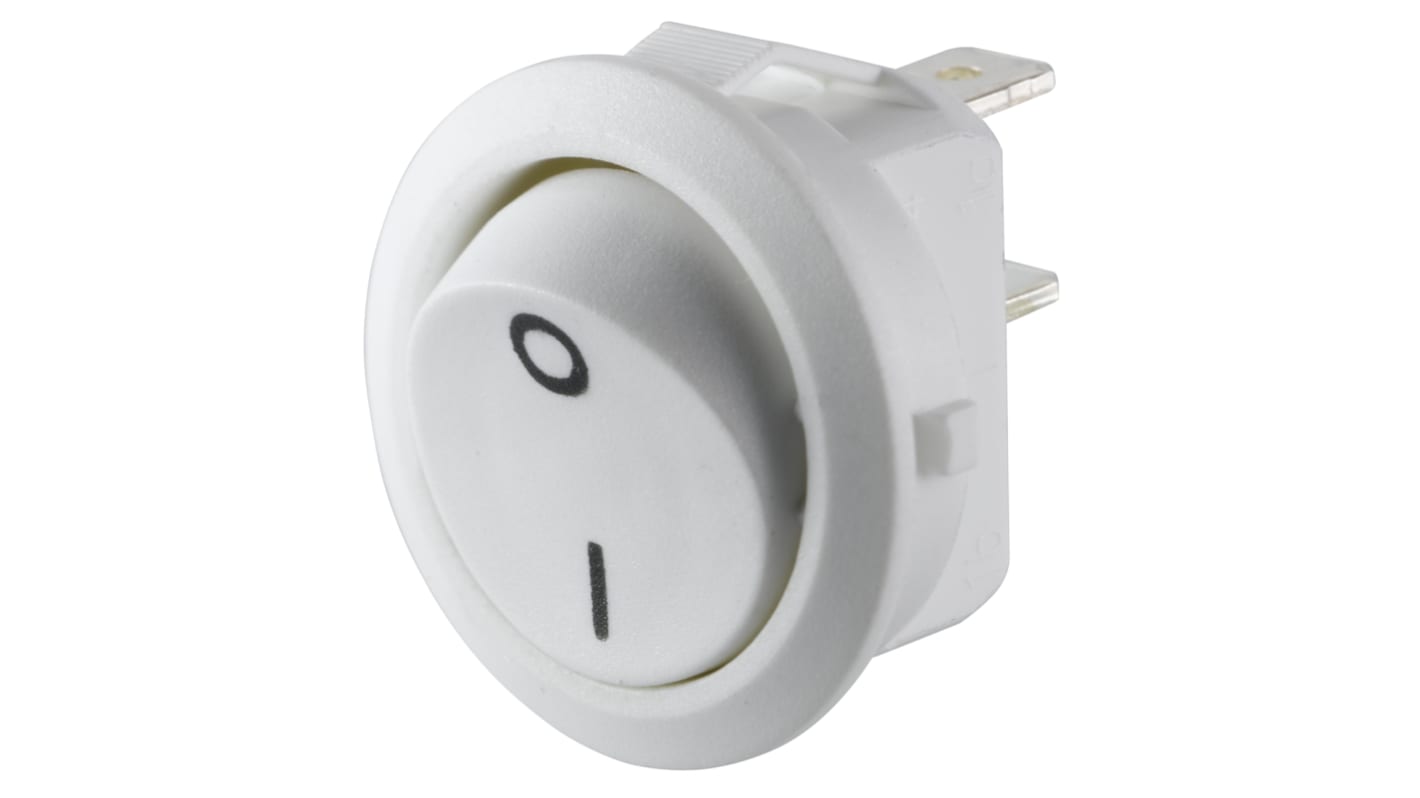

Marquardt SPST, On-Off Rocker Switch Panel Mount

Marquardt 1881 series of round single pole single throw rocker switches. The non illuminated 1881 rocker switches are suitable for use in Class II appliances and feature an abrasion-proof on-off legend. The round, 20mm diameter cut out, rocker switches have silver contacts with a SPST (on-off) switching format, a contact resistance <100mΩ and an insulation resistance of >100MΩ. Electrical connection is made via the 4.8mm Faston/Quick Connect style tab terminals.

High inrush current (capacitive) up to 70A
23mm diameter
Contact distance ≥3mm
Operating force 3N
UL 94 V-2 flammability rated (apart from stock number 575-131 which is UL 94 V-0 rated)

Stock number 575-131 conforms to the household appliances standard IEC/EN 60335-1:2001/2002 chapter 30.
The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings.

UL; CSA; ENEC

Marquardt Rocker Switches
