Units	Per Unit
1 - 9	MYR50.85
10 - 49	MYR49.77
50 - 99	MYR48.24
100 - 249	MYR47.08
250 +	MYR46.07

Select all	Attribute	Value
	Brand	APEM
	Contact Configuration	DPST
	Switch Operation	On-Off
	Panel Cut Out Width	30mm
	Panel Cut Out Height	22mm
	Contact Current Rating	16 A
	Illuminated	No
	Actuator Colour	Black
	Mounting Type	Panel Mount
	Terminal Type	Solder
	Legend Text	On (symbol); Off (symbol)
	Panel Cut Out Size	22 x 30mm
	AC Voltage Rating	125 V, 250V
	Actuator Shape	Rectangular
	Mechanical Life	10000Operations
	Operating Temperature Range	-20 → +85°C
	Contact Resistance	10mΩ
	Case Material	Melamine
	Contact Material	Silver
	Minimum Operating Temperature	-20°C
	Maximum Operating Temperature	+85°C

	Select all
	Brand APEM
	Contact Configuration DPST
	Switch Operation On-Off
	Panel Cut Out Width 30mm
	Panel Cut Out Height 22mm
	Contact Current Rating 16 A
	Illuminated No
	Actuator Colour Black
	Mounting Type Panel Mount
	Terminal Type Solder
	Legend Text On (symbol); Off (symbol)
	Panel Cut Out Size 22 x 30mm
	AC Voltage Rating 125 V, 250V
	Actuator Shape Rectangular
	Mechanical Life 10000Operations
	Operating Temperature Range -20 → +85°C
	Contact Resistance 10mΩ
	Case Material Melamine
	Contact Material Silver
	Minimum Operating Temperature -20°C
	Maximum Operating Temperature +85°C

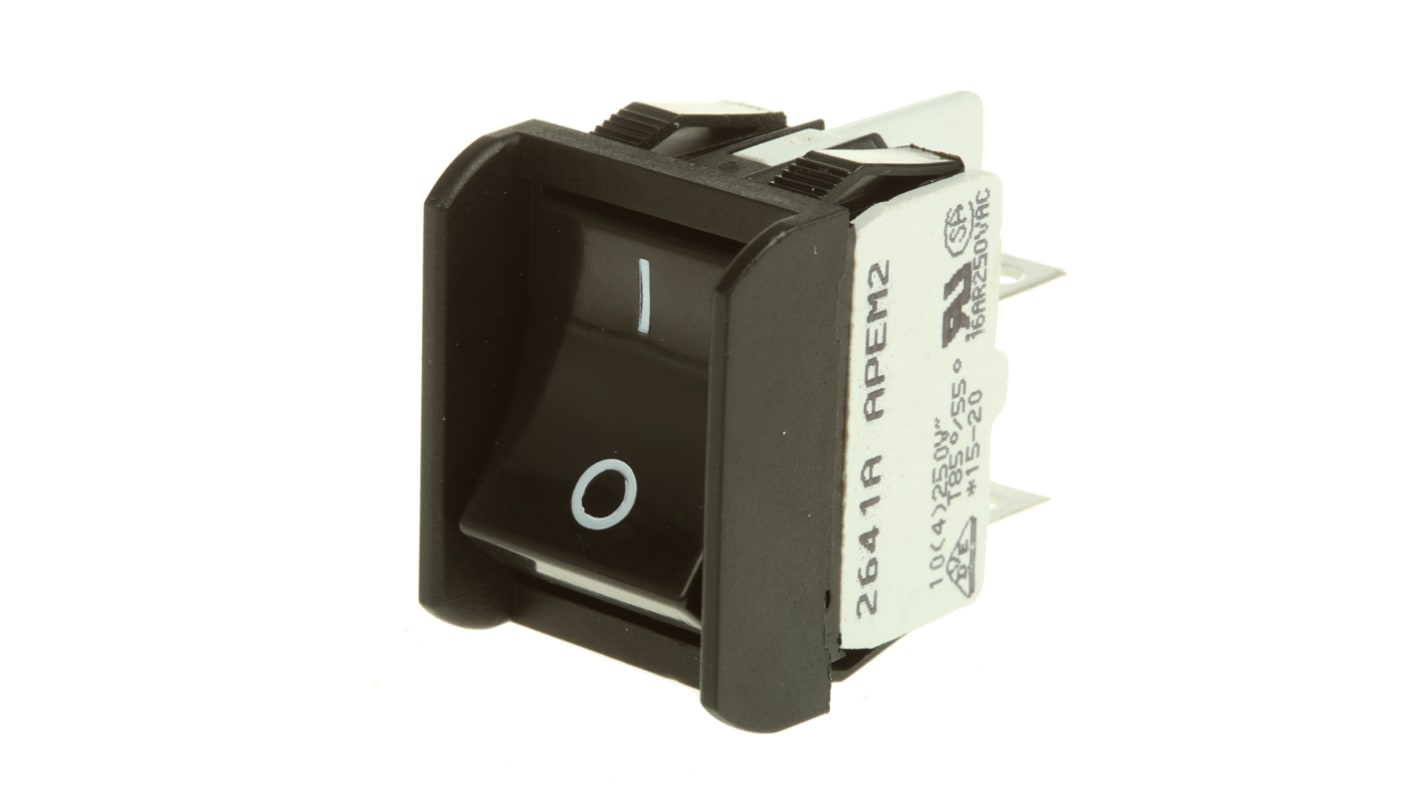

Apem DPST, On-Off Rocker Switch Panel Mount

FREE delivery for orders over MYR500.00

Apem Rocker Switches 2600 Series

Approvals
