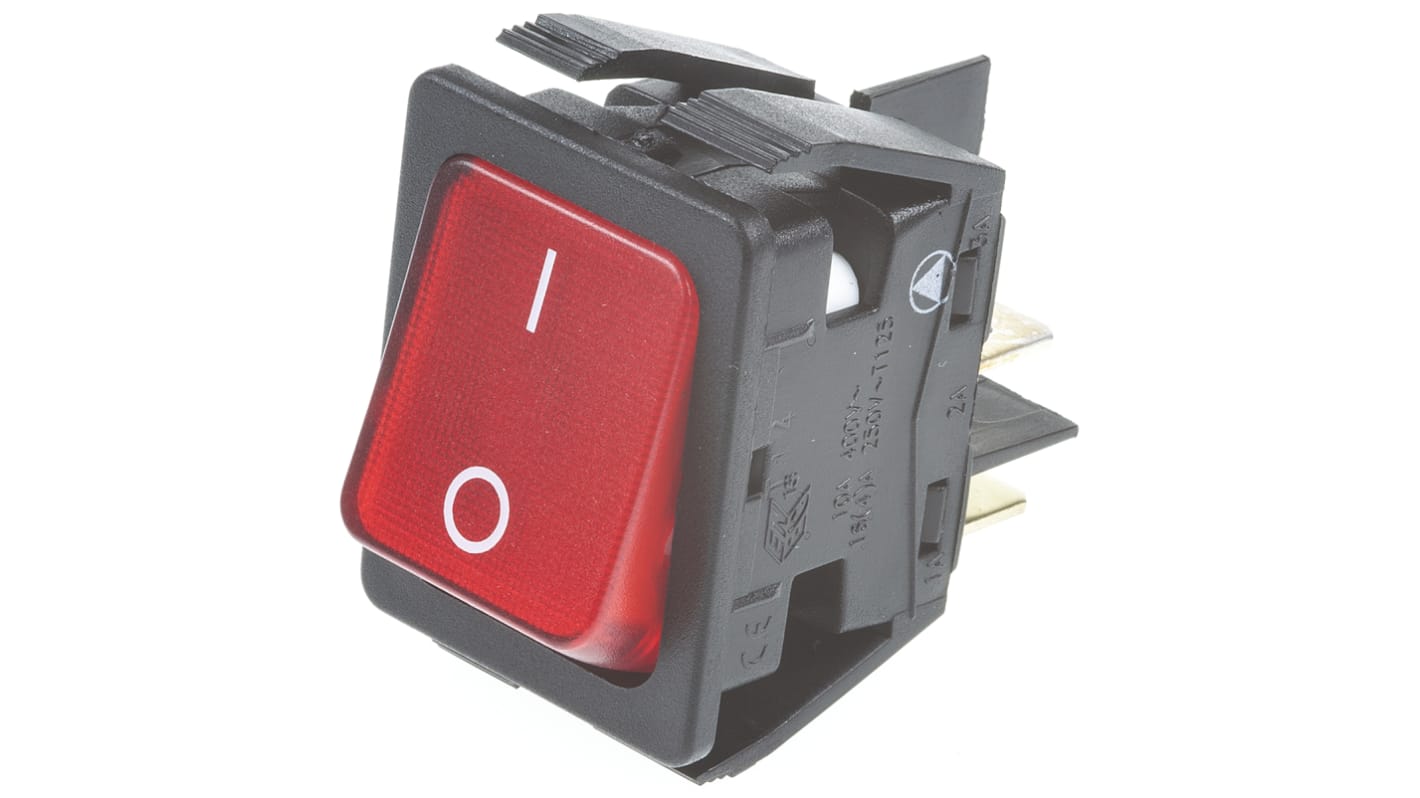

Arcolectric (Bulgin) Ltd Illuminated DPST, On-Off On-Off Rocker Switch Panel

View all Rocker Switches
Bulk discount available

Subtotal (1 unit)*

MYR26.25

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per Unit
1 - 49MYR26.25
50 - 99MYR25.70
100 - 249MYR24.92
250 - 499MYR24.34
500 +MYR23.82

*price indicative

RS Stock No.:
749-2419
Mfr. Part No.:
C6053ALNAEB
Manufacturer:
Arcolectric (Bulgin) Ltd
Find similar products by selecting one or more attributes.
Select all

Brand

Arcolectric (Bulgin) Ltd

Product Type

Rocker Switch

Contact Configuration

DPST

Legend

Off (Symbol), On (Symbol)

Switch Operation

On-Off

Housing Material

Nylon

Panel Cutout Size

30 x 22.1 mm

Illuminated

Yes

Actuator Colour

Red

Series

6050

Mount Type

Panel

Terminal Type

Quick Connect

IP Rating

IP40

Minimum Operating Temperature

100°C

Contact DC Voltage

24V dc

Actuator Style

Rectangular

Switch Configuration

On-Off

Maximum Operating Temperature

100°C

Standards/Approvals

CSA, EN, UR

Legend Text Colour

White

COO (Country of Origin):
TN

Bulgin 6050 Series Rocker Switch, 16A Current Rating, DPST Contact Configuration - C6053ALNAEB


This rocker switch is a versatile DPST (Double Pole, Single Throw) switch designed for panel mounting. The switch features a rectangular actuator and supports both illuminated and non-illuminated options. With an IP40 rating, it provides reliable performance in various environments, making it an ideal choice for electrical and mechanical applications. The dimensions include a panel cut-out width of 22.1mm and a height of 30mm.

Features & Benefits


• Supports up to 16A current for robust performance

• Electric ratings of 125V and 250V ensure compatibility

• Quick connect terminal design allows for easy installation

• Constructed from nylon for durability and longevity

• Silver alloy contacts reduce resistance for efficient operation

Applications


• Used for lighting control panels in commercial settings

• Facilitates machinery operation in industrial environments

• Ideal for consumer electronics needing user-friendly control

• Utilised in automotive for reliable switching

• Suitable for various DIY projects requiring robust switches

How does the illuminated feature benefit usage in dark environments?


The illuminated option enhances visibility, allowing users to locate and operate the switch easily in low-light conditions, improving usability in applications such as home automation or outdoor lighting.

What safety features are included in this rocker switch?


The switch is designed with a positive break mechanism, ensuring that contacts open completely during switching, preventing accidental reconnection and enhancing user safety.

What is the significance of the IP40 rating for this product?


The IP40 rating indicates that the switch is protected against solid objects larger than 1mm, making it suitable for internal use where dust exposure is minimal, optimising its lifespan in less harsh environments.

Antimicrobial Rocker Switches - Arcolectric Splash Resistant C6050 Series


Microbes such as bacteria, mould and fungi occur in even the cleanest environment but due to their nature they can quickly multiply on surfaces. A switch is often the first point of contact when a user interacts with a product, and as a result is a surface where microbes are often spread. There are two basic types of antimicrobial technology available to treat surfaces - organic and inorganic. This range of Arcolectric antimicrobial switches are inorganic which provides safe, long lasting and built-in antimicrobial protection. Inorganic antimicrobials such as silver are non toxic and safer to use than organic antimicrobials.

BioCote® silver ion technology is incorporated into this range of Arcolectric’s switch products at the time of manufacture to provide proven, built-in antimicrobial protection against a wide range of micro-organisms, including bacteria, mould, and viruses for the expected lifetime of the product without breaking down, washing off or wearing off the product over time. The BioCote® antimicrobial protection reduces levels of microbes on surfaces by up to 99.99%. All BioCote® protected products are validated and quality tested to ISO 22196 where applicable, in an independent laboratory. Only products that demonstrate over a 95% reduction in bacteria are able to use the BioCote® brand as a guarantee of antimicrobial performance.

Arcolectric’s antimicrobial switches are suitable for use in a wide range of industries including healthcare, laboratory science, education, catering, leisure and many more public places.

This range of double pole, antimicrobial, rocker switches are available with latching action contacts in a choice of illuminated or non illuminated actuators. Each rocker switch body has a matt surface finish that snap fits into panel cut-outs with a panel thickness of between 0.75 and 3mm, the fixing ribs on the switch housing ensures a tight fit. Arcolectric’s 6050 rocker switches have a integral splash resistance design - current carrying parts are protected from moisture, any droplets that may enter the switch are channelled out through ports in the switch body.

BioCote® antimicrobial additive, independently tested to ISO22196

High inrush rating, 150A to EN61058-1

Actuators with white power on/off legend 'I O'

Contact distance 3mm

Class II compliant

UL 94 V-2 flammability rated

Behind panel depth 30mm

Panel cut - 22.1x30mm

Electrical connection via 6.3x0.8mm Faston/Quick Connect style tab terminals, see stock number 669-2374 typically

Antimicrobial Rocker Switches


Note

The current rating and life expectancy figures quoted are nominal, please see datasheet for further ratings.

Approvals

UL; CSA; ENEC
