Select all	Attribute	Value
	Brand	RS PRO
	Contact Configuration	Double Pole Double Throw (DPDT)
	Switch Operation	On-(On)
	Panel Cut Out Width	15.75mm
	Panel Cut Out Height	8.89mm
	Contact Current Rating	3 A @ 120 V ac
	Illuminated	No
	Actuator Colour	Black
	Mounting Type	Panel Mount
	Terminal Type	Right Angle PC Pin
	Panel Cut Out Size	8.89 x 15.75mm
	Actuator Shape	Rectangular
	AC Voltage Rating	125 V, 250V
	Minimum Operating Temperature	-30°C
	Contact Resistance	20mΩ
	Mechanical Life	30000Operations
	Contact Material	Silver Plated Brass
	Operating Temperature Range	-30 → +85°C
	Maximum Operating Temperature	+85°C
	Case Material	Diallyl Phthalate

	Select all
	Brand RS PRO
	Contact Configuration Double Pole Double Throw (DPDT)
	Switch Operation On-(On)
	Panel Cut Out Width 15.75mm
	Panel Cut Out Height 8.89mm
	Contact Current Rating 3 A @ 120 V ac
	Illuminated No
	Actuator Colour Black
	Mounting Type Panel Mount
	Terminal Type Right Angle PC Pin
	Panel Cut Out Size 8.89 x 15.75mm
	Actuator Shape Rectangular
	AC Voltage Rating 125 V, 250V
	Minimum Operating Temperature -30°C
	Contact Resistance 20mΩ
	Mechanical Life 30000Operations
	Contact Material Silver Plated Brass
	Operating Temperature Range -30 → +85°C
	Maximum Operating Temperature +85°C
	Case Material Diallyl Phthalate

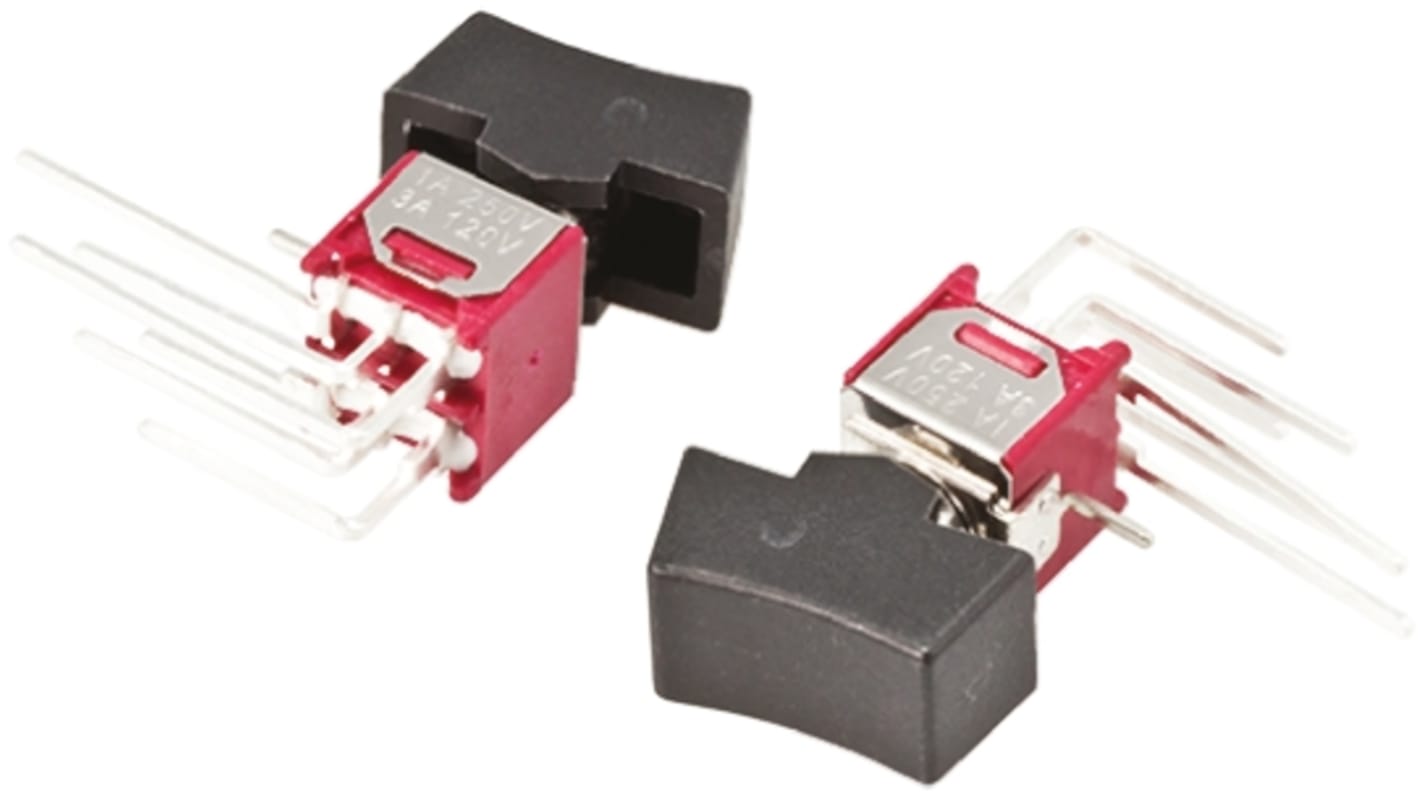

RS PRO DPDT, On-(On) Rocker Switch Panel Mount

Sub-Miniature Rocker Switches - 4M Series
