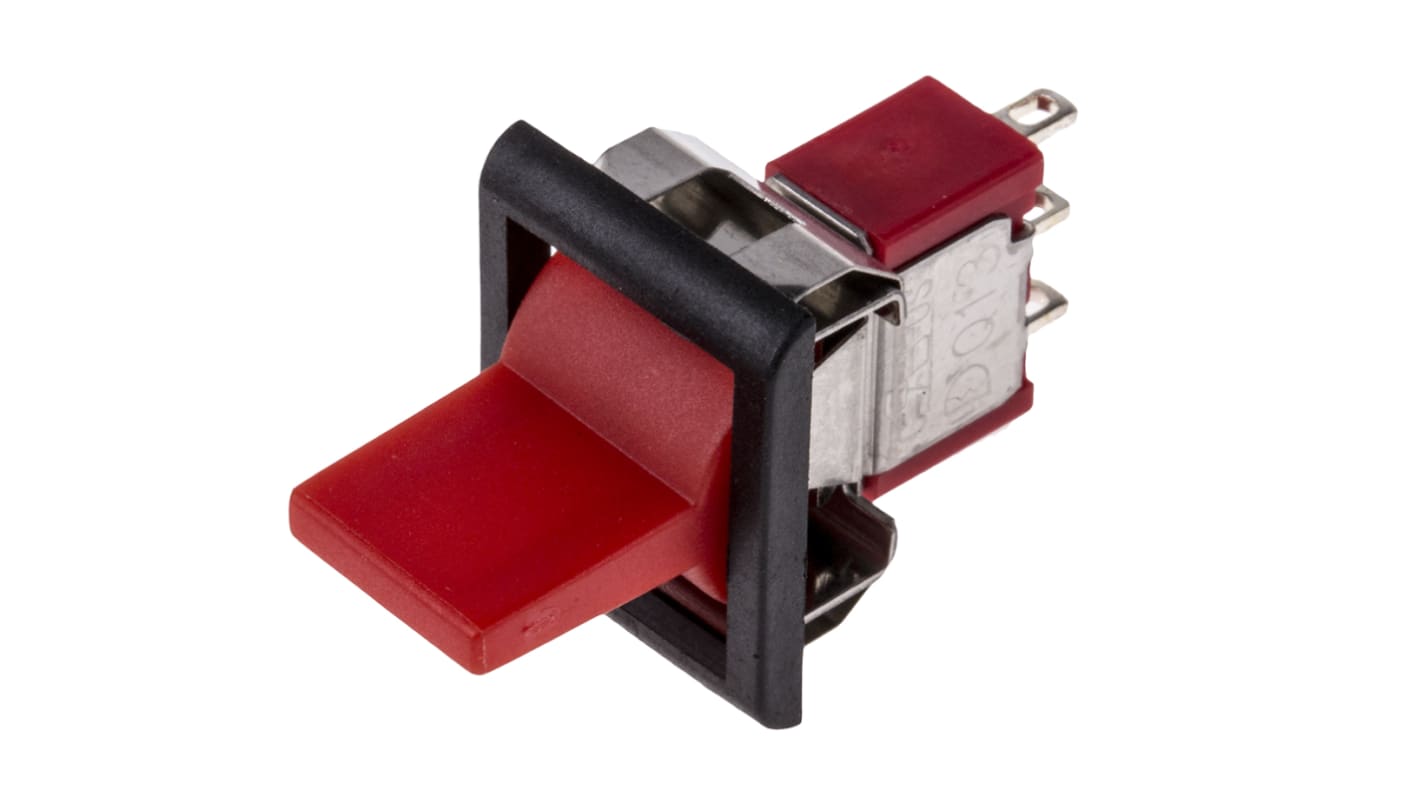

RS PRO SPDT, (On)-Off-(On) Rocker Switch Panel Mount
- RS Stock No.:
- 734-6861
- Manufacturer:
- RS PRO
21 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
95 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR19.97
| Units | Per Unit |
| 1 - 4 | MYR19.97 |
| 5 + | MYR16.43 |
- RS Stock No.:
- 734-6861
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
Product Details
Miniature Rocker and Paddle Switches
These Miniature Rocker and Paddle Switches are available in a variety of switch configurations with SPDT and DPDT contact configurations. Silver plated Brass contacts with a mechanical life of 40000 make and break cycles are a feature of these Miniature Rocker and Paddle Switches . All these Miniature Rocker and Paddle Switches have a UL94V0 case material with Nickel plated Brass bushings and stainless steel housings.
Stock numbers 734-6851 , 734-6855 and 734-6858 have Frames
Stock number 734-6842 has a vertical support bracket
Stock number 734-6845 has a Brass Tin plated panel support
Stock number 734-6864 has a Brass Tin plated panel support but no rocker
Stock numbers 734-6851 and 734-6842 have markings on the rocker, all other rockers have no markings
Stock number 734-6849 has a vertical rocker
Stock number 734-6839 and 734-6870 have no rocker
Stock number 734-6842 has a vertical support bracket
Stock number 734-6845 has a Brass Tin plated panel support
Stock number 734-6864 has a Brass Tin plated panel support but no rocker
Stock numbers 734-6851 and 734-6842 have markings on the rocker, all other rockers have no markings
Stock number 734-6849 has a vertical rocker
Stock number 734-6839 and 734-6870 have no rocker
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Rocker Switches - RS
The RS range of Miniature and Sub-Miniature Rockers Switches are available in a variety of Contact and Switch configurations.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Single Pole Double Throw (SPDT) |
| Switch Operation | (On)-Off-(On) |
| Panel Cut Out Width | 12.7mm |
| Panel Cut Out Height | 15.7mm |
| Contact Current Rating | 5 A @ 250 V ac |
| Illuminated | No |
| Actuator Colour | Red |
| Mounting Type | Panel Mount |
| Terminal Type | Solder |
| AC Voltage Rating | 125 V, 250V |
| DC Voltage Rating | 28V |
| Actuator Shape | Rectangular |
| Panel Cut Out Size | 15.7 x 12.7mm |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -30 → +85°C |
| Mechanical Life | 40000Operations |
| Minimum Operating Temperature | -30°C |
| Case Material | Diallyl Phthalate |
| Contact Resistance | 10mΩ |
| Contact Material | Silver Plated Brass |
