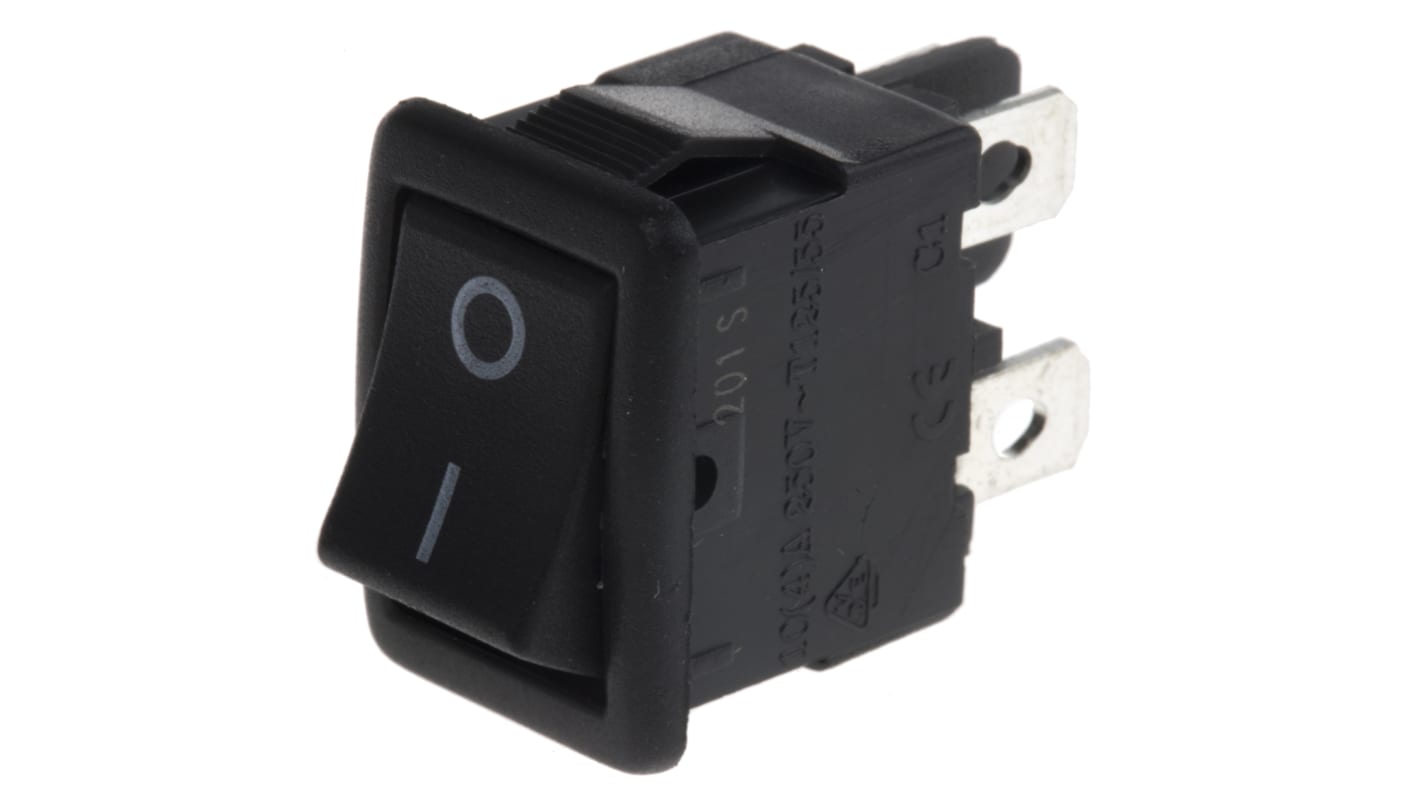

ZF Double Pole Single Throw (DPST), Latching Rocker Switch Panel Mount

  • RS Stock No. 706-4348
  • Mfr. Part No. LRA32H2FBBNN
  • Manufacturer ZF
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

RR Series Circular Rocker Switch

Single-pole and double-pole configurations
Lighted and non-lighted options
Available in a wide variety of colors
High current switching in a compact round package
Self-locking tabs to fit industrystandard panel cut-outs
Mechanical life: min. 100,000 operations

Specifications
Attribute Value
Contact Configuration Double Pole Single Throw (DPST)
Switch Operation Latching
Panel Cut Out Width 12.9mm
Panel Cut Out Height 19.3mm
Contact Current Rating 12 A @ 125 V ac
Actuator Colour Black
Mounting Type Panel Mount
Terminal Type Quick Connect
Maximum Operating Temperature +65°C
Contact Resistance 20mΩ
Operating Temperature Range -20 → +65°C
Contact Material Silver Alloy
Panel Cut Out Size 19.3 x 12.9mm
Mechanical Life 100000Operations
Minimum Operating Temperature -20°C
13 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 4.25
units
Per unit
1 - 49
MYR4.25
50 - 99
MYR3.77
100 - 249
MYR3.36
250 - 499
MYR3.04
500 +
MYR2.86
