ZF DPST, On-Off Rocker Switch Panel Mount
- RS Stock No.:
- 706-4045
- Mfr. Part No.:
- KDH3ANA1BBB
- Manufacturer:
- ZF
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
193 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR20.90
| Units | Per Unit |
| 1 - 49 | MYR20.90 |
| 50 - 99 | MYR20.27 |
| 100 - 249 | MYR19.64 |
| 250 - 499 | MYR19.22 |
| 500 + | MYR18.82 |
- RS Stock No.:
- 706-4045
- Mfr. Part No.:
- KDH3ANA1BBB
- Manufacturer:
- ZF
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

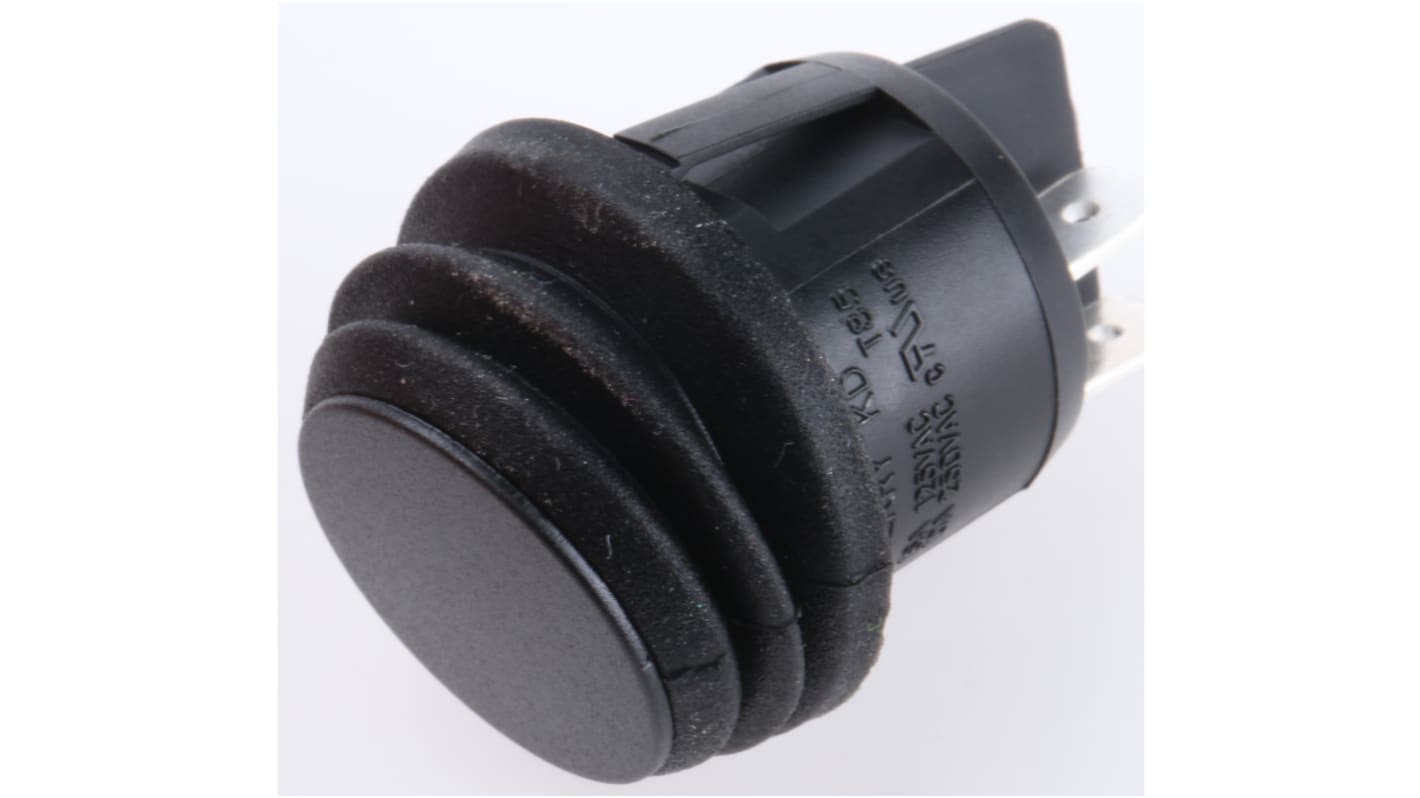

KD Series Waterproof Double Pole Rocker Switches
KD series IP56-rated switches are available in illuminated (red or green actuator) and unilluminated (black actuator) versions.Robust and waterproof, teh KD series of double pole rocker switches are designed to fit a panel cut-out of 20.2 mm diameter.
Features and Benefits:
• Mechanical life: 100,000 cycles
• DC electrical life: 6,000 cycles
• DC electrical life: 6,000 cycles
The KD Series includes:
• Stock number 706-4042 is a green illuminated rocker switch (On-Off)
• Stock number 706-4045 is a plain black rocker switch (On-Off)
• Stock number 706-4048 is a red illuminated rocker switch (On-Off)
• Stock number 706-4051 is a plain black rocker switch (On-On)
• Stock number 706-4054 is a plain black rocker switch (On-Off-On)
• Stock number 868-1660 is a red illuminated rocker switch (On-Off)
• Stock number 706-4045 is a plain black rocker switch (On-Off)
• Stock number 706-4048 is a red illuminated rocker switch (On-Off)
• Stock number 706-4051 is a plain black rocker switch (On-On)
• Stock number 706-4054 is a plain black rocker switch (On-Off-On)
• Stock number 868-1660 is a red illuminated rocker switch (On-Off)
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Double Pole Single Throw (DPST) |
| Switch Operation | On-Off |
| Panel Cut Out Diameter | 20.2mm |
| Contact Current Rating | 20 A @ 14 V dc |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| IP Rating | IP56 |
| Terminal Type | Quick Connect |
| Legend Text | (Blank) |
| DC Voltage Rating | 14 V, 28V |
| Panel Cut Out Size | 20.2 (Dia.)mm |
| AC Voltage Rating | 125 V, 250V |
| Actuator Shape | Round |
| Maximum Operating Temperature | +85°C |
| Mechanical Life | 100000Operations |
| Operating Temperature Range | -25 → +85°C |
| Contact Resistance | 50mΩ |
| Minimum Operating Temperature | -25°C |
| Contact Material | Silver Alloy |
| Case Material | Nylon 66 |
