Select all	Attribute	Value
	Brand	APEM
	Contact Configuration	Double Pole Single Throw (DPST)
	Switch Operation	On-Off
	Panel Cut Out Diameter	20mm
	Contact Current Rating	10 A@ 125 V ac
	Illuminated	Yes
	Actuator Colour	Red
	Mounting Type	Panel Mount
	Terminal Type	Solder
	Actuator Shape	Round
	Panel Cut Out Size	20 (Dia.)mm
	AC Voltage Rating	125 V, 250V
	Contact Resistance	20mΩ
	Contact Material	Silver Cadmium Alloy
	Case Material	Nylon 66
	Minimum Operating Temperature	-20°C
	Operating Temperature Range	-20 → +85°C
	Mechanical Life	10000Operations
	Maximum Operating Temperature	+85°C

	Select all
	Brand APEM
	Contact Configuration Double Pole Single Throw (DPST)
	Switch Operation On-Off
	Panel Cut Out Diameter 20mm
	Contact Current Rating 10 A@ 125 V ac
	Illuminated Yes
	Actuator Colour Red
	Mounting Type Panel Mount
	Terminal Type Solder
	Actuator Shape Round
	Panel Cut Out Size 20 (Dia.)mm
	AC Voltage Rating 125 V, 250V
	Contact Resistance 20mΩ
	Contact Material Silver Cadmium Alloy
	Case Material Nylon 66
	Minimum Operating Temperature -20°C
	Operating Temperature Range -20 → +85°C
	Mechanical Life 10000Operations
	Maximum Operating Temperature +85°C

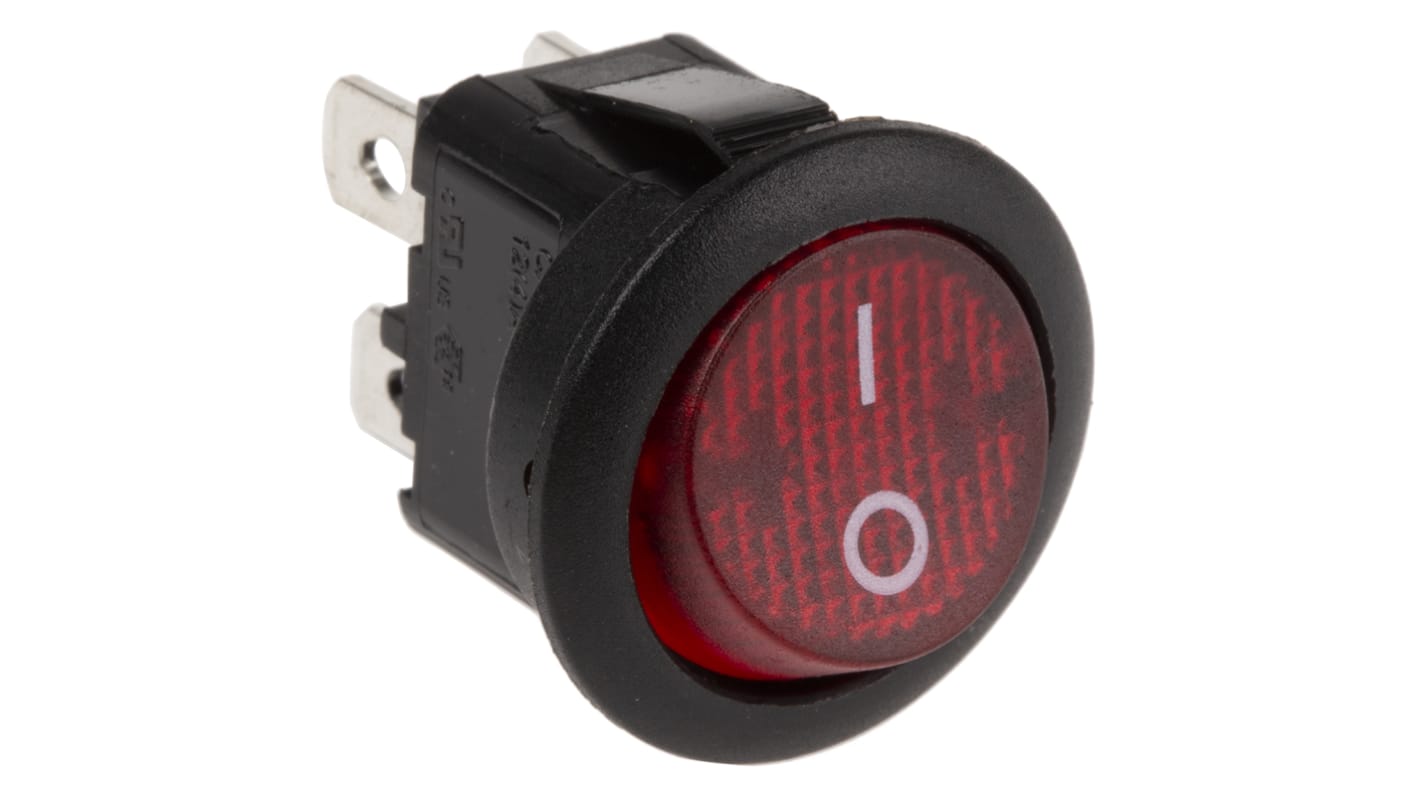

APEM Illuminated DPST, On-Off Rocker Switch Panel Mount

FREE delivery for orders over MYR500.00

Double Pole Round Rocker Switches
