- RS Stock No.:
- 398-5049
- Mfr. Part No.:
- KG462A2XXA21XX
- Manufacturer:
- APEM
14 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR87.45
Units | Per Unit |
1 - 49 | MYR87.45 |
50 - 99 | MYR84.83 |
100 - 249 | MYR82.20 |
250 - 499 | MYR80.46 |
500 + | MYR78.71 |
- RS Stock No.:
- 398-5049
- Mfr. Part No.:
- KG462A2XXA21XX
- Manufacturer:
- APEM
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details

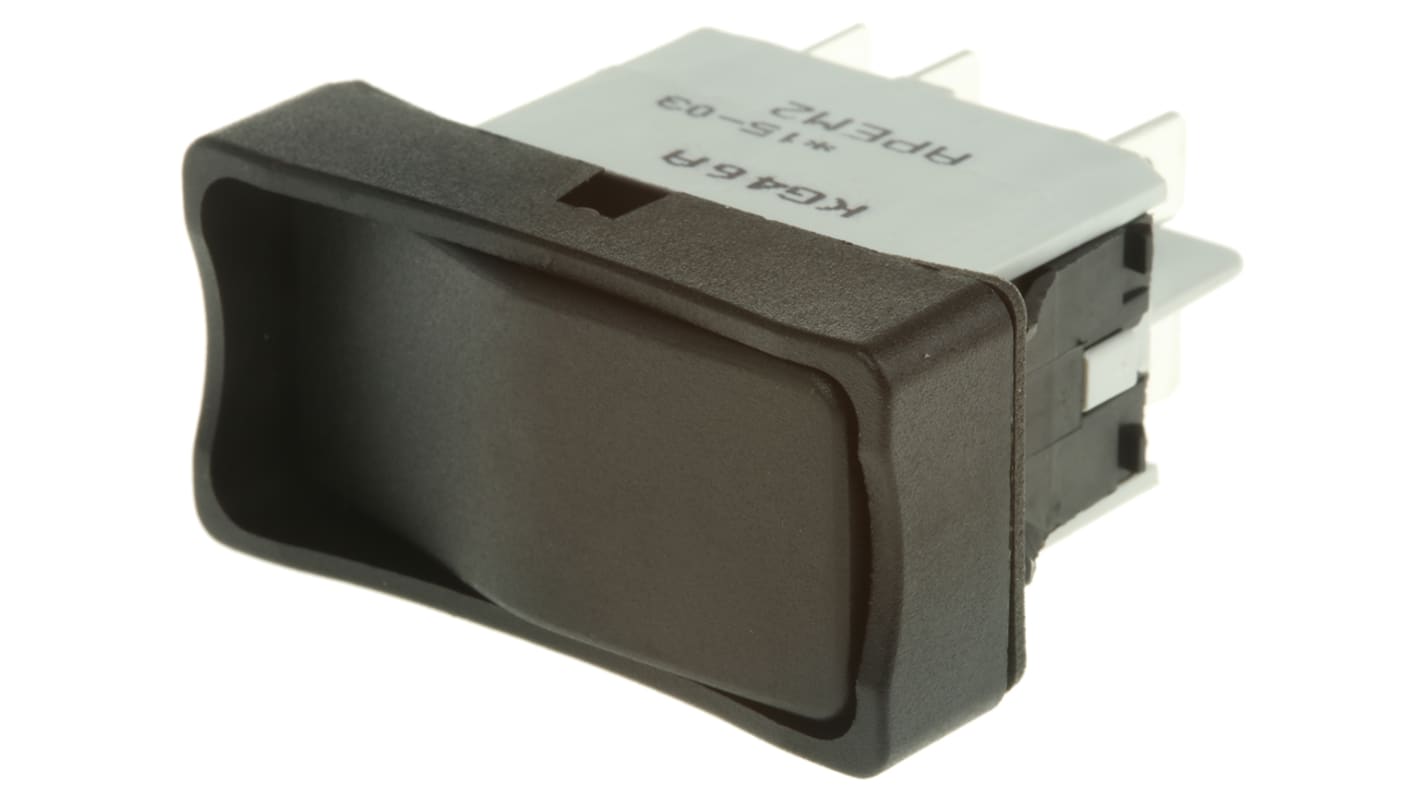

KG Series Rocker Switches
IP65 Sealed rocker switches with integral bezels which protect against accidental operation
6.35 (0.250) faston/solder termination
Neon illuminated versions require 230Vac, (3985077 , 3985083 )
LED illuminated versions require 12Vdc, (3985112 , 3985106 )
Ideal for applications requiring wash-down cleaning
Contact Resistance: 10mΩ
Contact Material: Silver
Panel Cut-out 21.08 x 36.83
6.35 (0.250) faston/solder termination
Neon illuminated versions require 230Vac, (3985077 , 3985083 )
LED illuminated versions require 12Vdc, (3985112 , 3985106 )
Ideal for applications requiring wash-down cleaning
Contact Resistance: 10mΩ
Contact Material: Silver
Panel Cut-out 21.08 x 36.83
Approvals
7777
Specifications
Attribute | Value |
---|---|
Contact Configuration | Double Pole Single Throw (DPST) |
Switch Operation | On-On |
Panel Cut Out Width | 36.8mm |
Panel Cut Out Height | 21.08mm |
Contact Current Rating | 15 A @ 250 V ac |
Illuminated | No |
Actuator Colour | Black |
Mounting Type | Panel Mount |
IP Rating | IP65 |
Terminal Type | Quick Connect, Solder |
Panel Cut Out Size | 21.08 x 36.80mm |
DC Voltage Rating | 12 V, 24V |
AC Voltage Rating | 250V |
Actuator Shape | Rectangular |
Contact Material | Silver |
Operating Temperature Range | -40 → +85°C |
Mechanical Life | 100000Operations |
Maximum Operating Temperature | +85°C |
Contact Resistance | 10mΩ |
Minimum Operating Temperature | -40°C |
