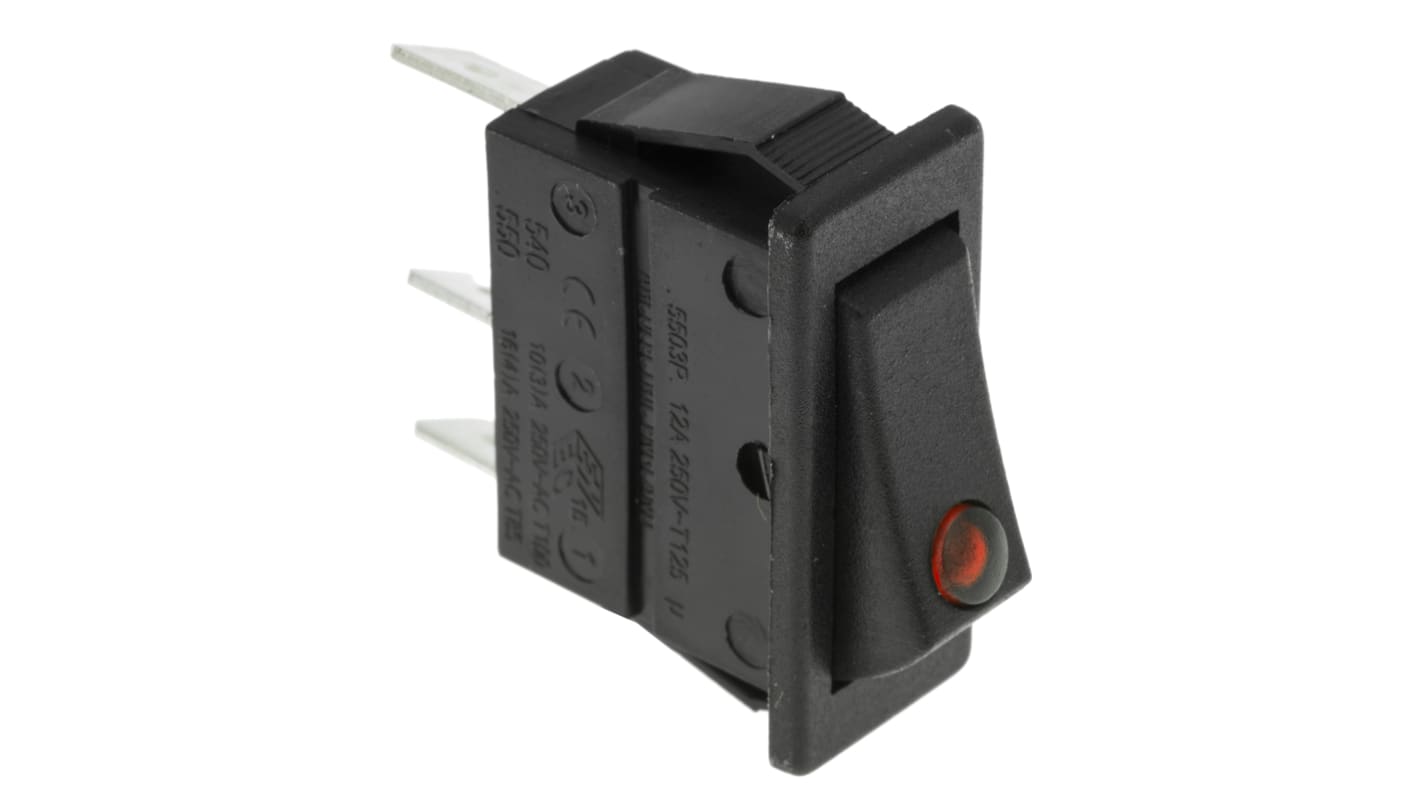

Arcolectric Illuminated Single Pole Single Throw (SPST), Latching Rocker Switch Panel Mount

  • RS Stock No. 240-0755
  • Mfr. Part No. C5503PLLAA
  • Manufacturer Arcolectric
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TN
Product Details

LED Illuminated Smooth

Single pole on-off with separate LED illumination
Integral resistor makes switches suitable for direct use on 12V systems; additional resistors may be connected externally for use on higher voltages
Connection is via .250in faston terminals
Silver contacts
Applications include instrumentation, power supplies and automotive
>10000 operation electrical life
Nylon 6·6 (UL 94 V-2) actuator

Approvals

7777

Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Switch Operation Latching
Panel Cut Out Width 11mm
Panel Cut Out Height 30mm
Contact Current Rating 16 A @ 250 V ac
Illuminated Yes
Actuator Colour Red
Mounting Type Panel Mount
Terminal Type Quick Connect
Panel Cut Out Size 30 x 11mm
820 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 20.82
units
Per unit
1 - 49
MYR20.82
50 - 99
MYR18.77
100 - 249
MYR17.07
250 - 499
MYR15.79
500 +
MYR15.09
