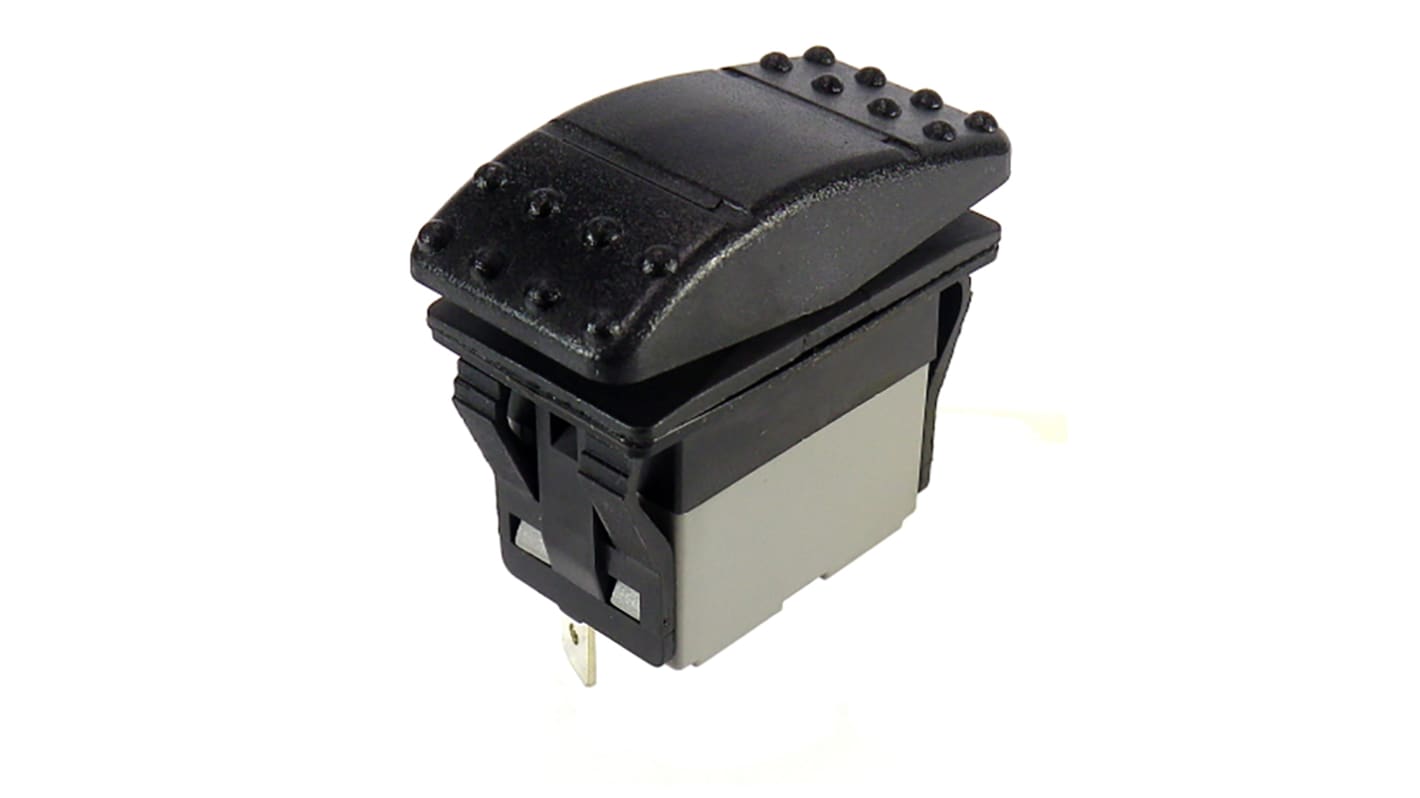

RS PRO SPDT, Latching Rocker Switch Panel Mount
- RS Stock No.:
- 174-8323
- Manufacturer:
- RS PRO
20 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Price Each
MYR83.55
| Units | Per Unit |
| 1 - 124 | MYR83.55 |
| 125 - 624 | MYR81.21 |
| 625 + | MYR66.83 |
- RS Stock No.:
- 174-8323
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Power Level, available from SPST to DPDT with a variety of options for actuator and actuator symbol.
• Mounting unit is available to simply the installation when several switches are required
• Wide variety of actuator shapes / styles with optional pad printed symbols
• Illuminated or non-illuminated models
• 8 and 10-terminal versions allowing independent LED circuit or additional integrated functions
• Wide variety of actuator shapes / styles with optional pad printed symbols
• Illuminated or non-illuminated models
• 8 and 10-terminal versions allowing independent LED circuit or additional integrated functions
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPDT |
| Switch Operation | Latching |
| Panel Cut Out Width | 37mm |
| Panel Cut Out Height | 21.1mm |
| Contact Current Rating | 16 A @ 125 → 250 V ac, 16 A @ 30 V dc, 20 A @ 125 → 250 V ac |
| Illuminated | No |
| Actuator Colour | Black |
| Mounting Type | Panel Mount |
| IP Rating | IP67 |
| Terminal Type | Quick Connect |
| Legend Text | On |
| Panel Cut Out Size | 21.1 x 37mm |
| Actuator Shape | Rectangular |
| DC Voltage Rating | 30V |
| AC Voltage Rating | 125 → 250V |
| Case Material | Polyamide |
| Contact Material | Copper |
| Maximum Operating Temperature | +85°C |
| Contact Resistance | 20mΩ |
| Operating Temperature Range | -20 → +85°C |
| Minimum Operating Temperature | -20°C |
